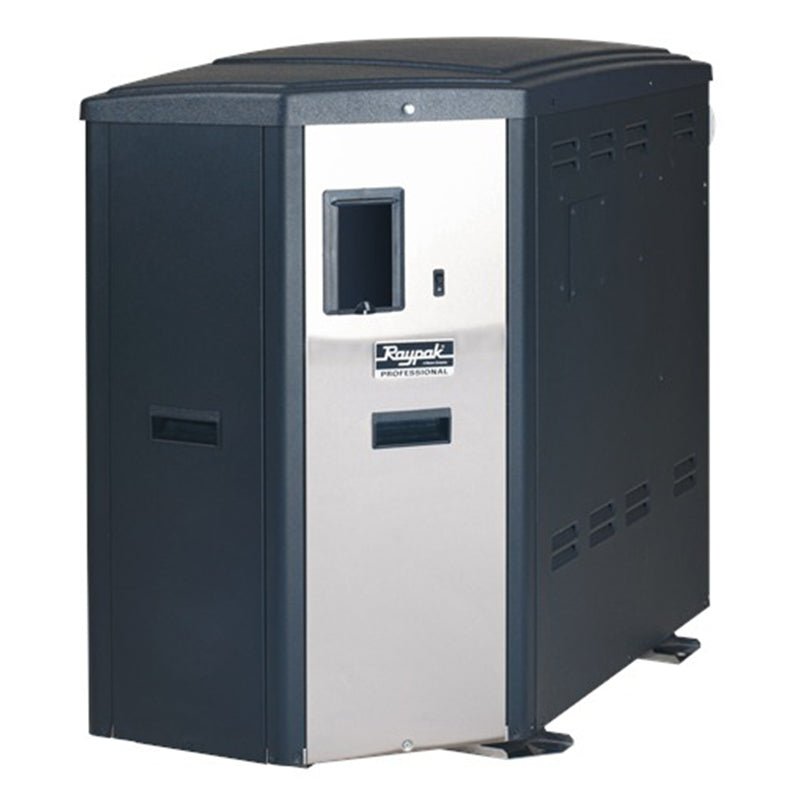

Raypak X94 Professional Digital Natural Gas Heater ASME, 399K BTU, S-R410-EN AS 014280
Raypak 014280 S-R410 X94 Professional Series ASME Digital Condensing Pool Heater; 399000 BTU, Natural, Super-Austenitic Stainless Steel Tubing
The Raypak X94 Professional Series is engineered for demanding commercial pool environments—ideal for apartments, condos, hotels, motels, schools, community centers, and high-end residential properties. Built with super-austenitic stainless steel tubing, this condensing pool heater delivers exceptional durability, energy efficiency, and long-lasting performance.
Designed to handle tough coastal climates and salt-air conditions, the X94 offers reliable heating where lesser units fall short. When uptime, performance, and customer satisfaction matter, commercial operators trust the Raypak Professional Series to get the job done.
Support Documents:
Specifications:
- Brand: Raypak
- Application: Indoor, Outdoor, Pool, Spa
- Shipping Dimensions: 42 x 25 x 41 inch
- BTU Input: 399000 British thermal unit
- Cabinet Depth: 35.5 inch
- Cabinet Height: 34.125 inch
- Cabinet Width: 20.1875 inch
- Commercial, Residential, or Professional: Commercial, Professional

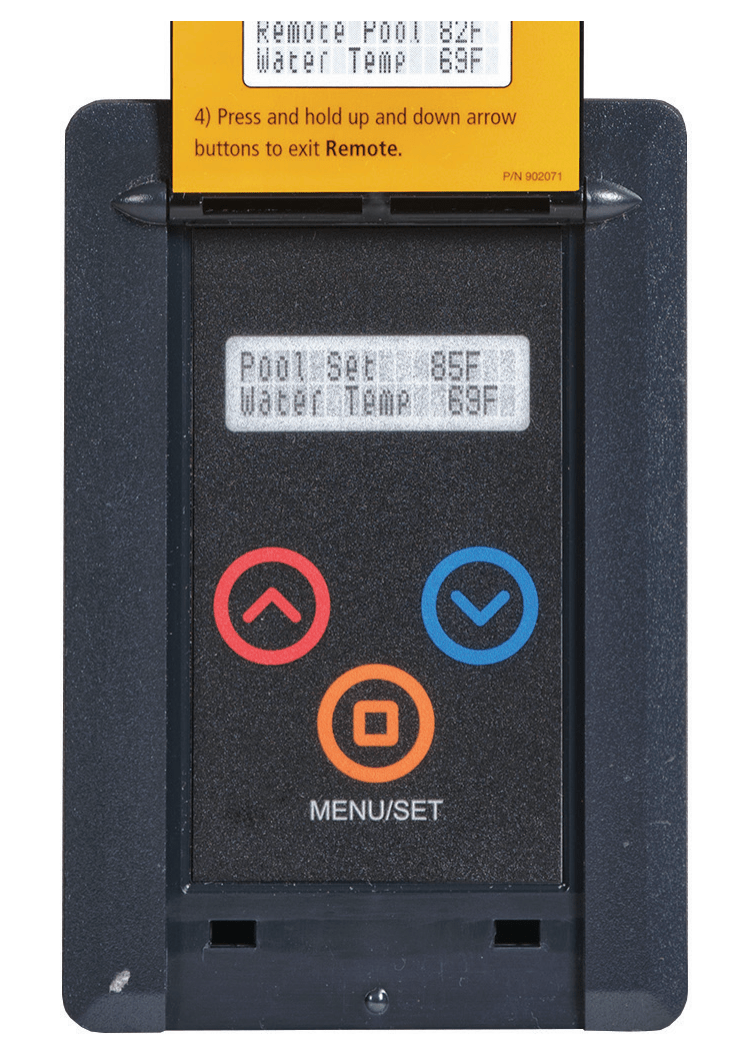

- Control Type: Digital Electronic
- Weight: 300 pounds
- Elevation Max: 4500 feet
- Elevation Min: 0 feet
- Flow Rate Max: 125 gal/min
- Flow Rate Min: 40 gal/min
- Flue Diameter: 4 inch
- Frequency Rating (Hz): 60
- Fuel Type: Natural Gas
- Gas Connection: 0.75 inch
- Gas Connection FIT: NPT
- Green or Energy Efficient Product: True
- Header Material: Stainless Steel
- Phase: Single
- Standards Approvals: ASME Certified
- Tubing Material: Stainless Steel
- Voltage: 120V
- UPC Code: 840891035114
- Warranty: 3-year parts and labor
Shipping, Installation & Warranty
Free Shipping: Most orders ship within 1 business day, unless otherwise noted. Most heaters ship via free LTL freight; an adult must be available to receive delivery.
Warranty: See Raypak's warranty page or the product’s user manual for details.
Disclaimer: Professional installation (not included) is required to validate the warranty.
Note: Images are for reference only.
