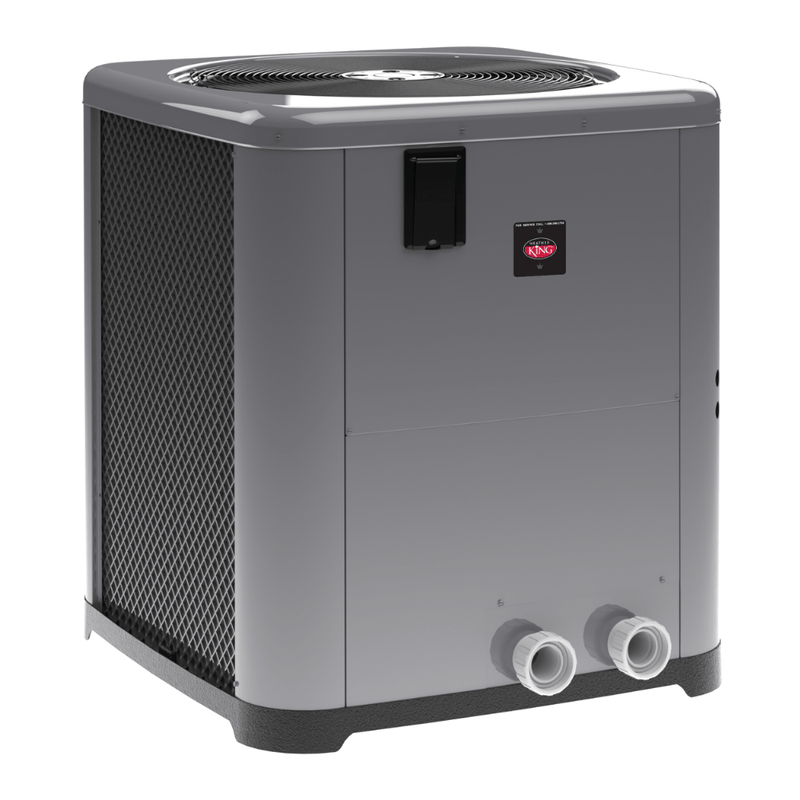

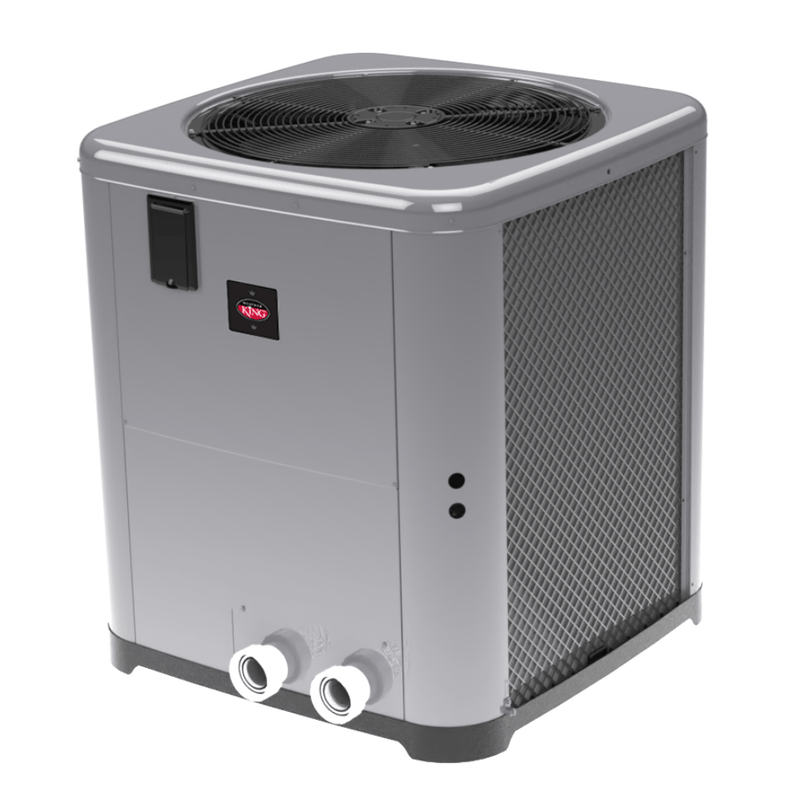

Raypak Weather King Digital Classic Heat Pump Heater, 118K BTU (6560, TWPH-6560EHT01, 016015, TWPH-6560EHC01)
Built for All Climates – Coastal Tough, Inland Ready
Exclusive: Free Nationwide Shipping
The Raypak Weather King Heat Pump delivers reliable, energy-efficient heating year-round. Designed for warm, humid regions, it features corrosion-resistant components that stand up to salt air, high humidity, and temperature swings—perfect for both coastal and inland environments.
- Warranty – 2 years for labor, 7 years for parts
- Product Brochure
- User Manual
Key Features:

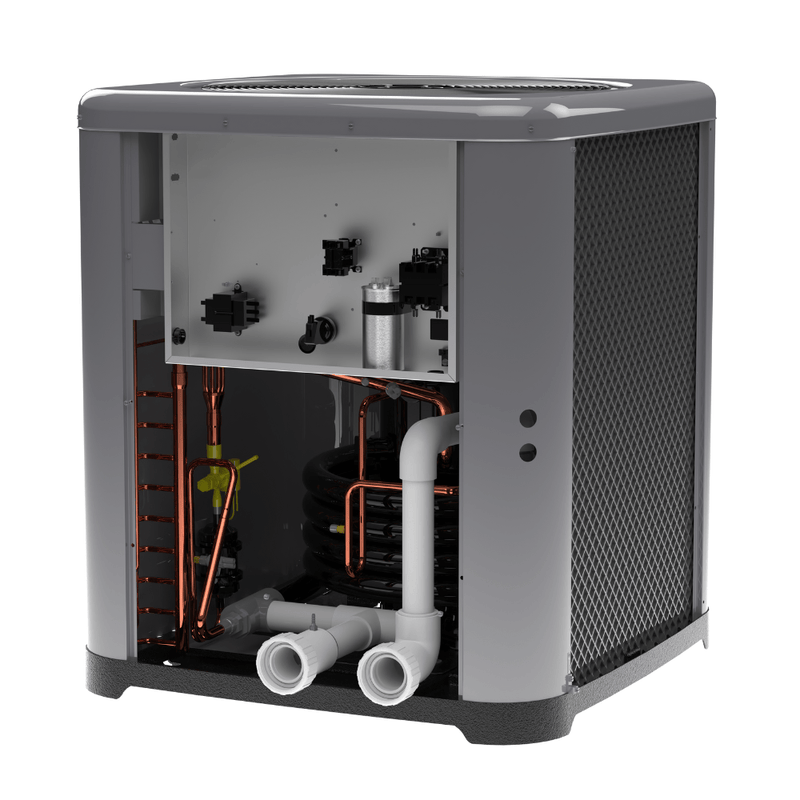

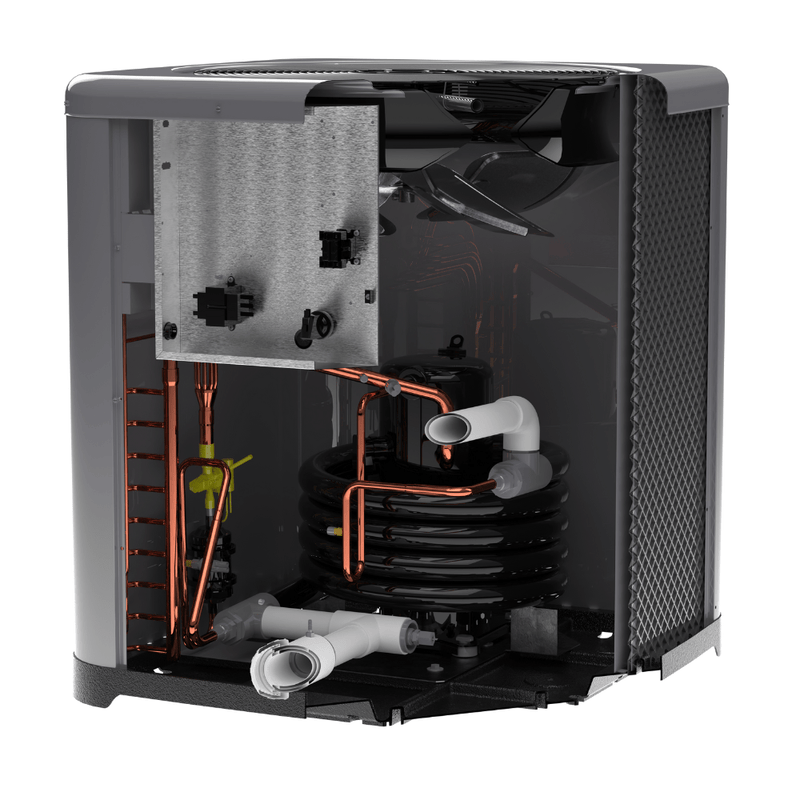

- Spiral Titanium Tube Heat Exchanger – Corrosion-resistant and efficient; reduces deposit buildup while maximizing heat transfer
- 2" Offset PVC Union Connections – Simplifies installation
- Large Air Coils – Raised lance-fin design enhances heating at lower temperatures for optimal performance
- Powder-Coated Steel Cabinet – More durable than plastic and resistant to corrosion
- Scroll Compressor – Quiet, efficient, and durable, providing improved performance over time
- Sound Isolation Pads – Reduce noise and improve drainage
- Digital Controls – Set precise temperatures for pools and spas, with energy-saving options available
- Remote Compatibility – Works with most two-wire and three-wire remote systems
-
Onboard Diagnostics – Alerts homeowners to issues and provides technicians with detailed diagnostics
Specifications:
- Model Type: Heat Only
- Max. Capacity (BTUH): 118,000
- C.O.P: 6.0
- Rated Flow Capacity: (GPM) 49.5
- Indoor/Outdoor: Outdoor
- Residential/ Commercial: Residential
- Heat Exchanger: Material Titanium
- Refrigerant Type: R410A
- Heating Capacity: (kW) 34.5
- Rated Outlet: Water Temp 104F

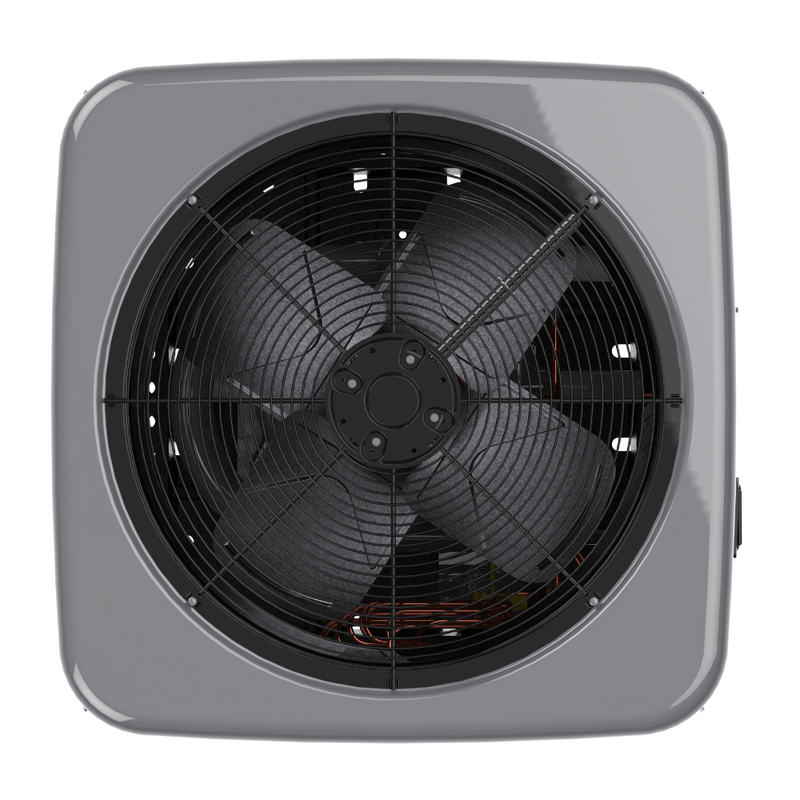

- Fan Type: 1-speed, 1-Ph/60Hz/240V motor, 4 blade fan
- 240V, 50A breaker is required
- Min. Water Supply: Flow (GPM) 30
- Max. Water Supply: Flow (GPM) 60
- Part Numbers: 6560, 6450, TWPH-6560, TWPH6560, TWPH-6560EHT01, TWPH6560EHT01, 016015, TWPH-6450EHT08, TWPH6450EHT08
Optional Water Bypass Valve Kit: Recommended for setups with single-speed pumps or flow rates above 60 GPM. Helps maximize heat pump efficiency and prevent error codes.

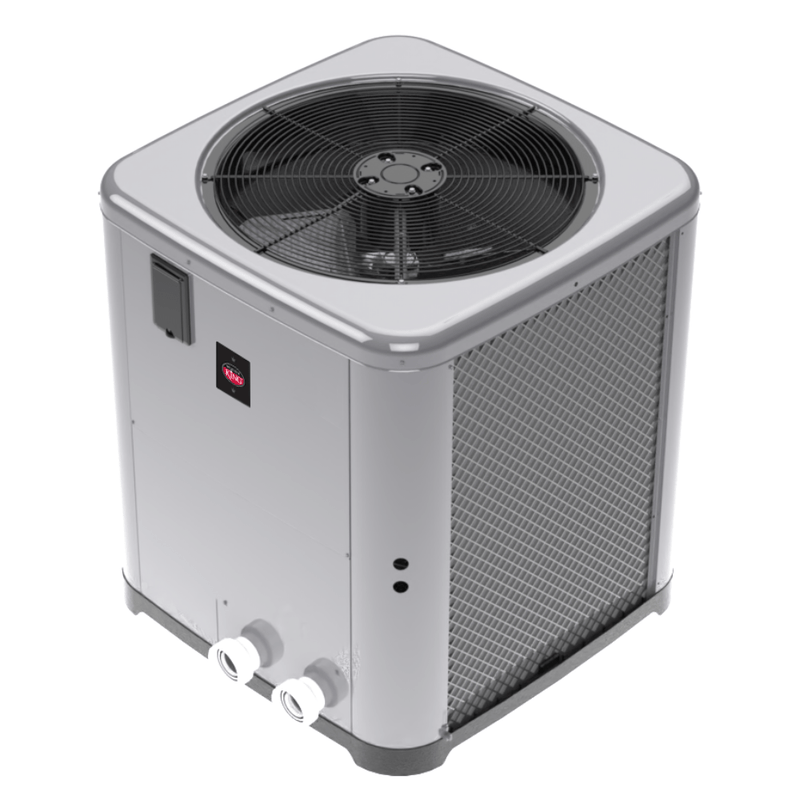

Raypak WeatherKing 118K BTU Heat Pump 6560 with Powder-Coated Steel Cabinet and Digital Controls
Shipping, Installation & Warranty
Free Shipping: Most orders ship within 1 business day, unless otherwise noted. Most heaters ship via free LTL freight; an adult must be available to receive delivery.
Warranty: See Raypak's warranty page or the product’s user manual for details.
Disclaimer: Professional installation (not included) is required to validate the warranty.
Note: Images are for reference only.
