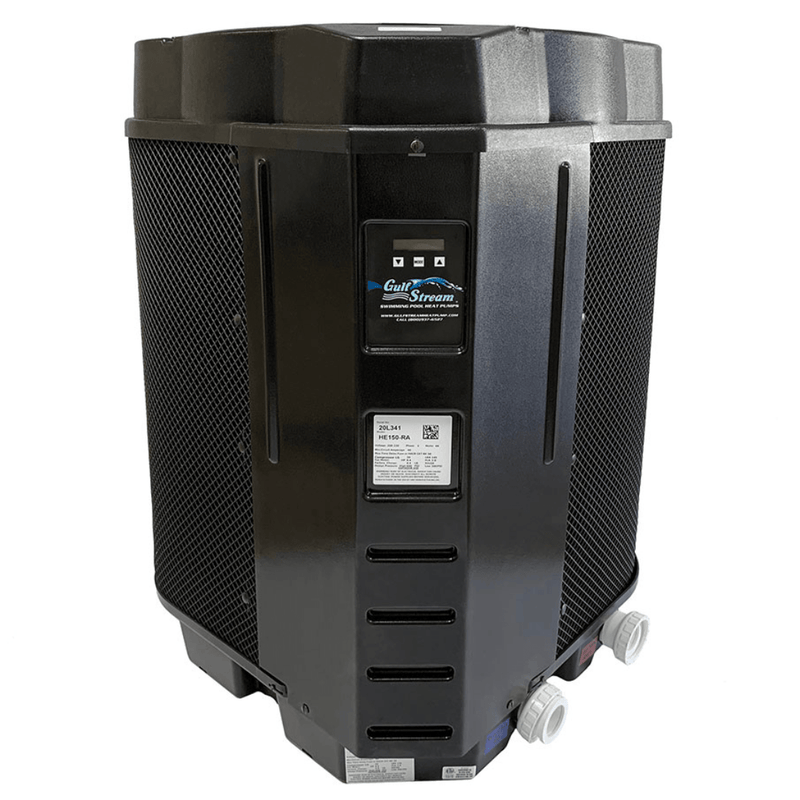

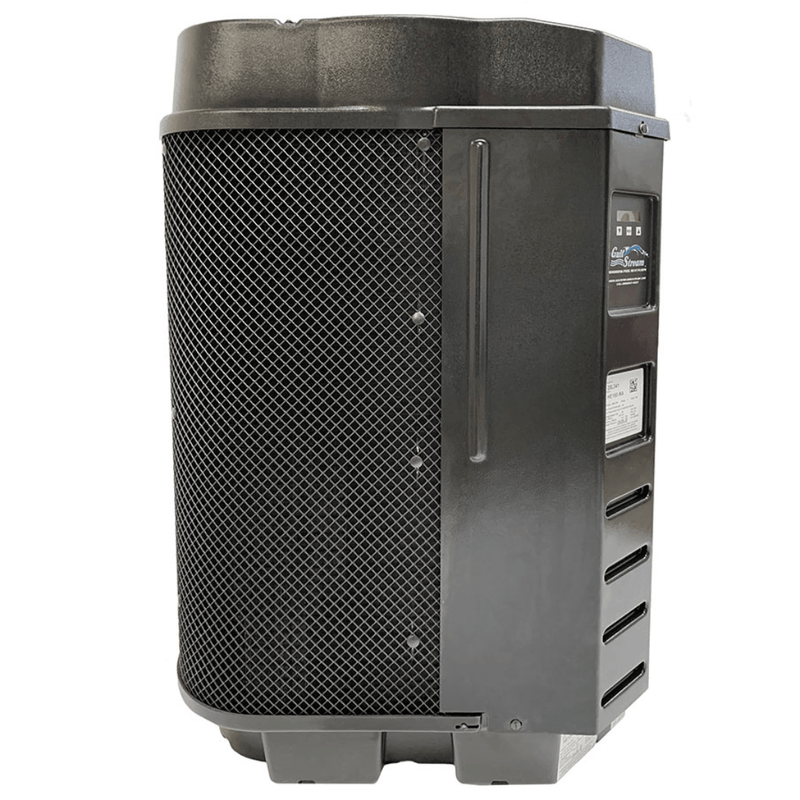

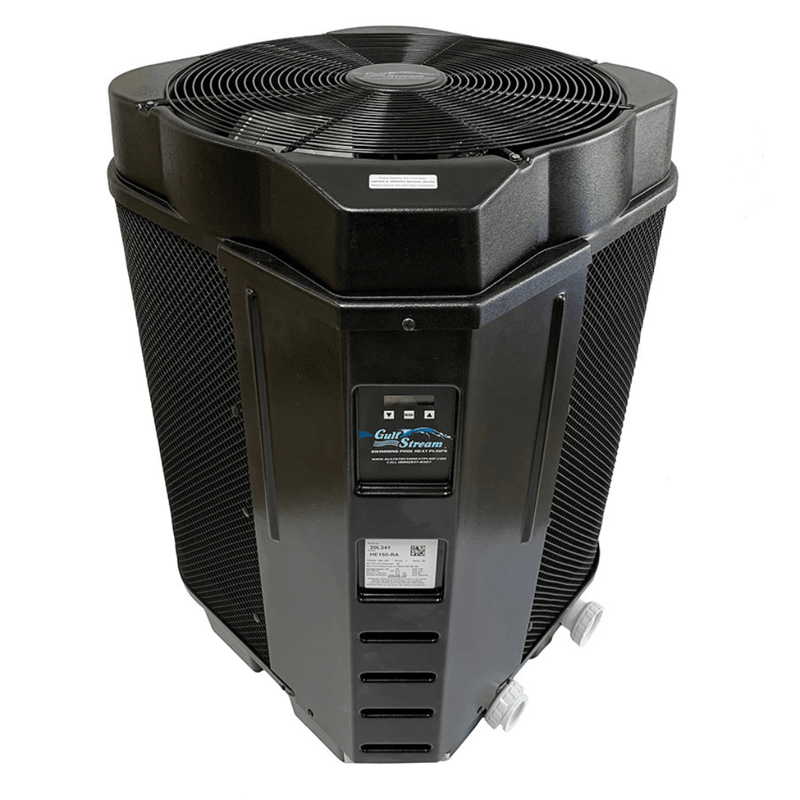

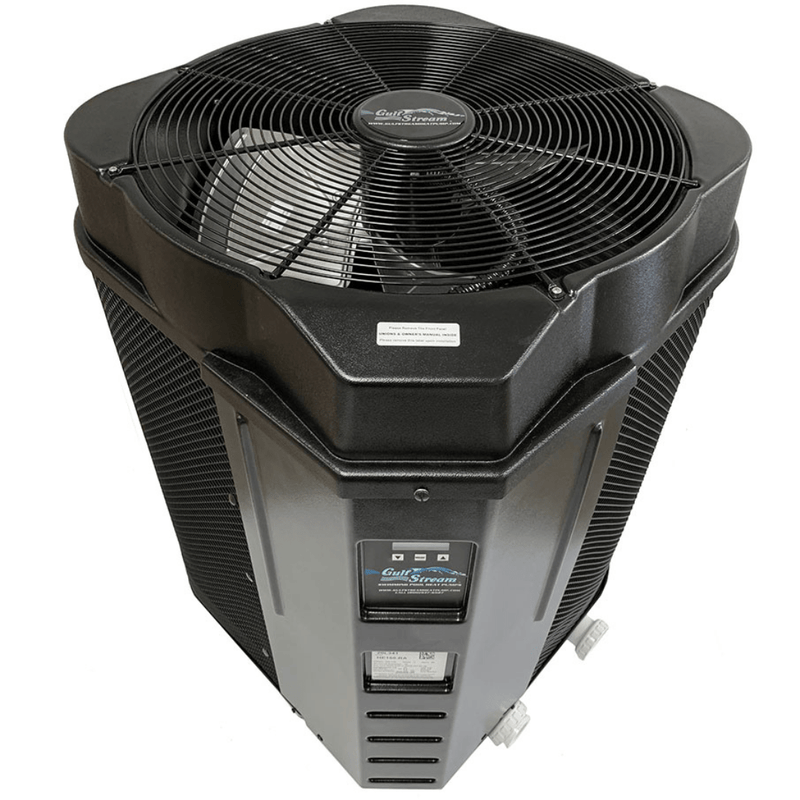

The Gulfstream HR150TA pool heat/cool pump is designed for both heating in winter and cooling in summer, delivering optimal performance and efficiency. The HR150 stands out as a high-efficiency heat pump, ensuring superior performance even in colder months. Engineered with R-410A Refrigerant to regulate flow through the evaporator coil, it achieves peak efficiency at low temperatures, ultimately reducing operating costs and saving you money.

Features:

• Applications: Up to 27,000 gallons or 800 square feet
• Titanium Turbo Heat Exchanger
• Efficient Scroll Compressor
• Super-Quiet 8 Pole Emerson Fan Motor
• Higher efficiency in colder weather
• Quiet – as low as 56 decibels at full operation
• No-Rust ABS Cabinet

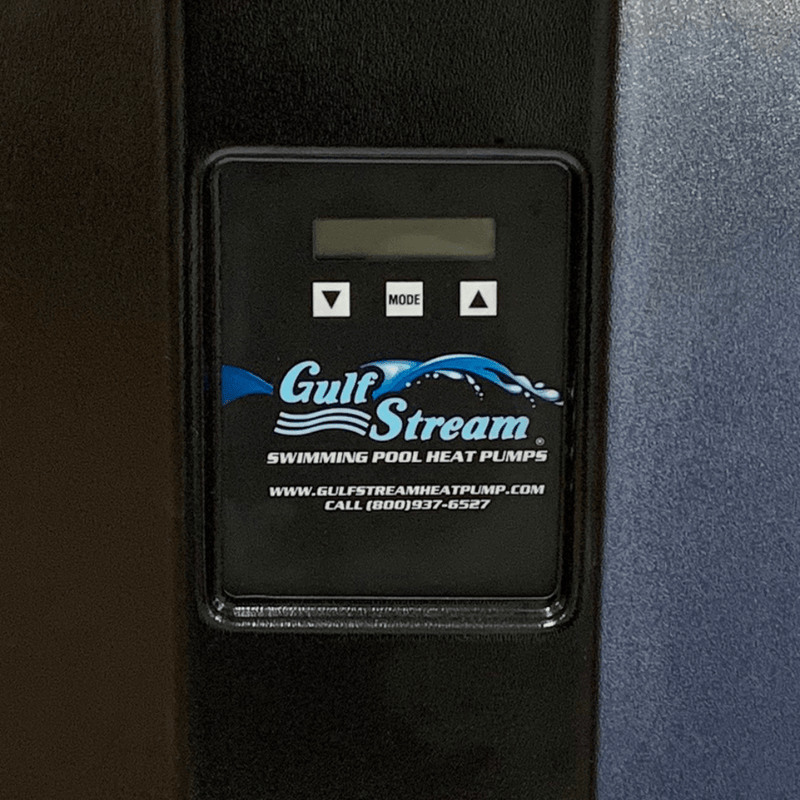

• Digital Diagnostic LCD Display reads in real words
• Super-Sized Evaporator Coil (20 square feet of wrap-around coil)
• Patented Refrigerant Metering System
• 2” Water flow - no need for an external bypass
• Plumbing located out of the way
• Compatible with all remote control systems
• R-410A Refrigerant is environmentally friendly
• Includes standard 2-year labor warranty
• Part Numbers: HE150-T-A, HE150-TA, HE150 TA, HE 150 TA
• Spec Sheet
• Product Brochure

Specifications:

• Brand: Gulfstream
• Model Number: HE150-T-A
• COP 80/80/80: 6.0/137,000
• Minimum Circuit Ampacity: 40
• Main Time Delay Breaker: 50
• Average Running Amps: 28
• Voltage: 208-230
• Phase: 1
• Hertz: 60
• Plumbing Size: 2" Union
• Min/Max Flow Rate: 30-70
• Recommended Flow: 45
• Fan Motor: 1/3 HP
• Fan Load Amperage: 1.8
• Fan Speed RPM: 825
• Compressor Type: Scroll
• Refrigerant: R410A
• Unit Weight: 234 lbs
• Shipping Weight: 269 lbs
• Unit Dimensions: 31"x31"x46"
• Foot Print: 31"x31"
• Shipping Dimensions: 33"x31"x50"
