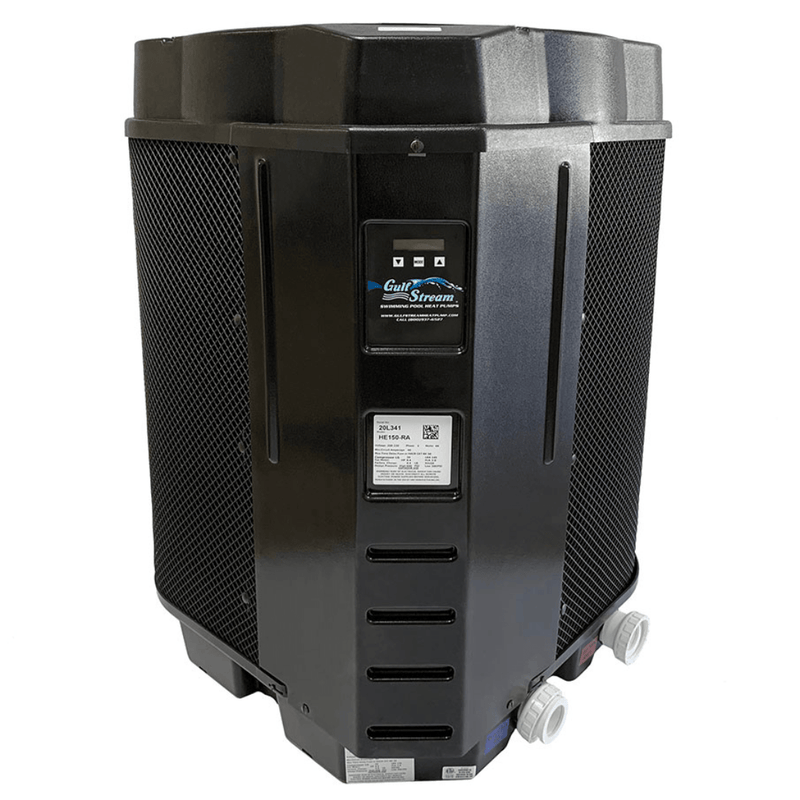

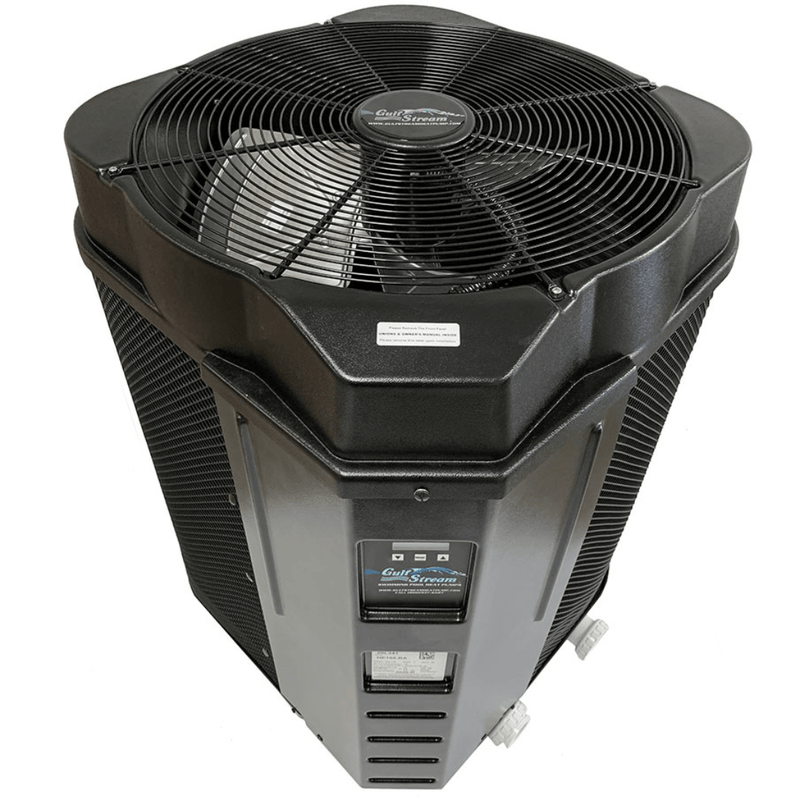

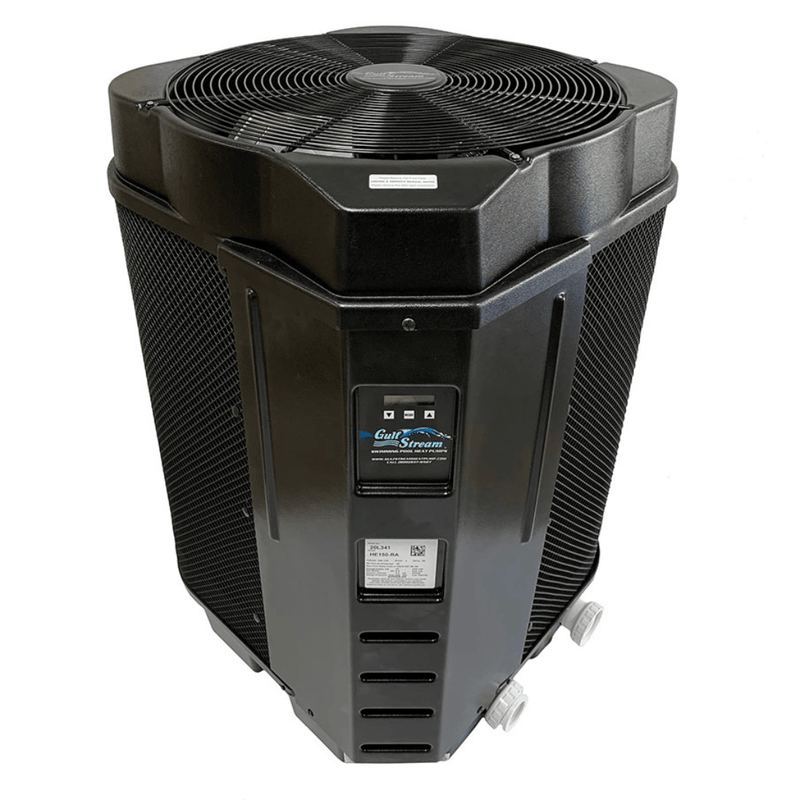

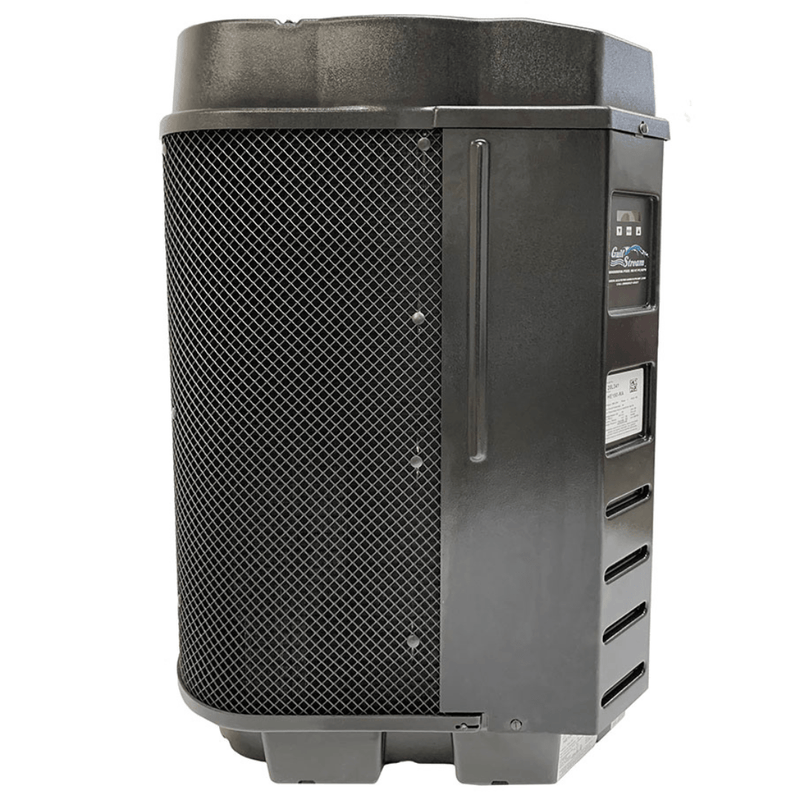

Gulfstream has designed the HE150 RA heat pump to efficiently heat your pool while minimizing costs. Its patented refrigerant metering system ensures high efficiency, particularly in colder conditions. Optimized for R-410A Refrigerant, it effectively regulates flow through the evaporator coil, resulting in maximum efficiency at low temperatures and reduced operating expenses. The HE150 RA is also available in both 3 Phase and Heat/Cool options.

Features:

• Applications: Up to 27,000 gallons or 800 square feet
• Titanium Turbo Heat Exchanger
• Efficient Scroll Compressor
• Super-Quiet 8 Pole Emerson Fan Motor
• Higher efficiency in colder weather
• Quiet – as low as 56 decibels at full operation
• No-Rust ABS Cabinet

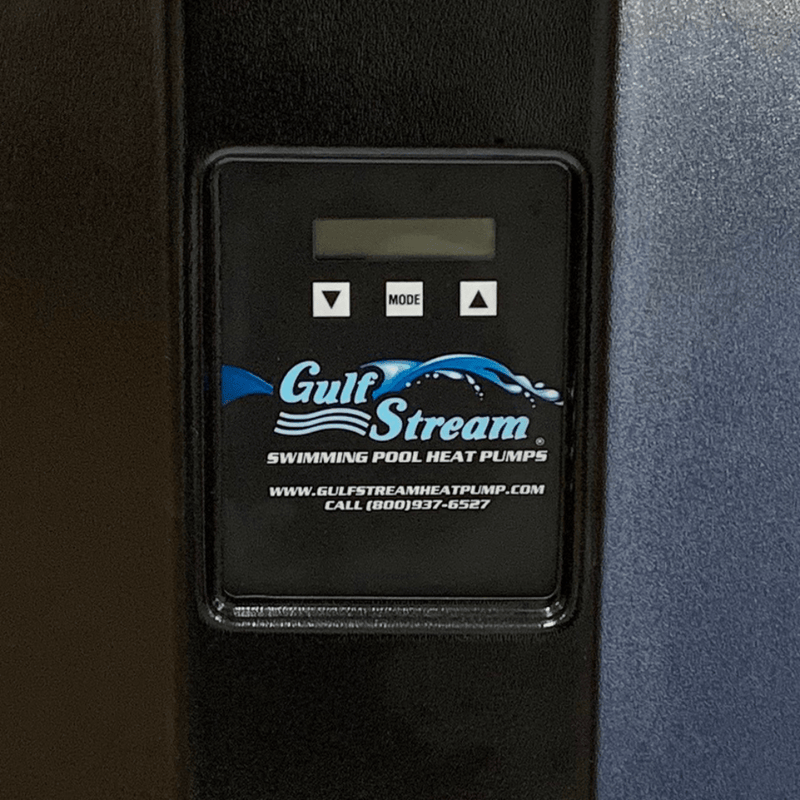

• Digital Diagnostic LCD Display reads in real words
• Super-Sized Evaporator Coil (20 square feet of wrap-around coil)
• Patented Refrigerant Metering System
• 2” Water flow - no need for an external bypass
• Plumbing located out of the way
• Compatible with all remote control systems
• R-410A Refrigerant is environmentally friendly
• Includes standard 2-year labor warranty
• Part Numbers: HE150-R-A, HE150 RA, HE150RA, HE 150 RA
• Spec Sheet
• Product Brochure

Specifications:

• Brand: Gulfstream
• Model Number: HE150-R-A
• COP 80/80/80: 6.2/142,000
• Minimum Circuit Ampacity: 40 Main
• Time Delay Breaker: 50
• Average Running Amps: 28
• Voltage: 208-230
• Phase: 1
• Hertz: 60
• Plumbing Size: 2" Union
• Min/Max Flow Rate: 30-70
• Recommended Flow: 45
• Fan Motor: 1/3 HP
• Fan Load Amperage: 1.8
• Fan Speed RPM: 825
• Compressor Type: Scroll
• Compressor: RLA 30
• Compressor LRA: 145
• Refrigerant: R410A
• Unit Weight: 248 lbs
• Shipping Weight: 276lbs
• Unit Dimensions: 31"x31"x46"
• Foot Print: 31"x31"
• Shipping Dimensions: 32"x31"x50"
• AHRI Testing Certification: 3694125
