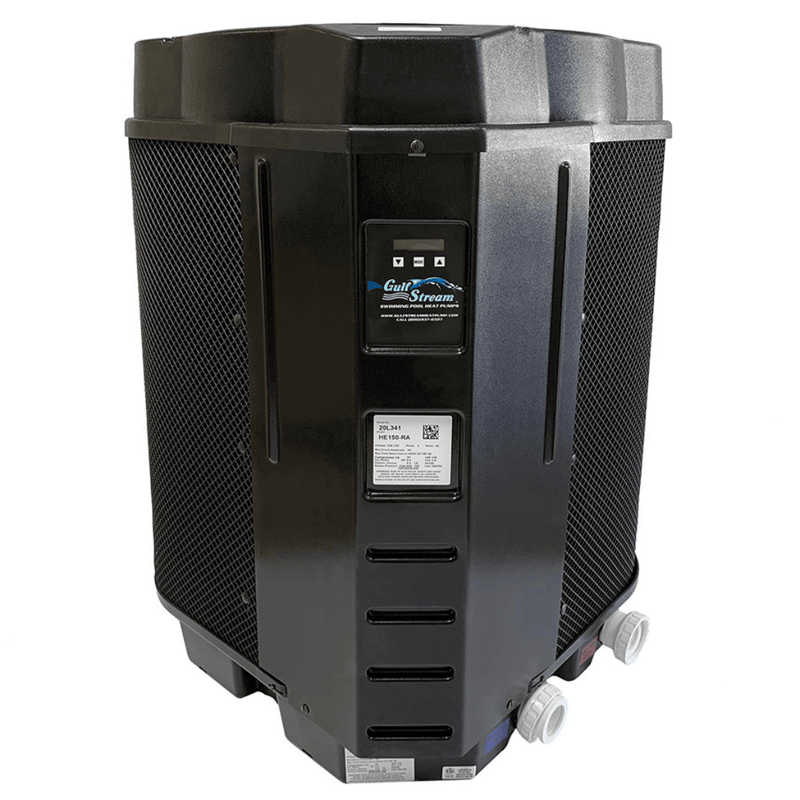

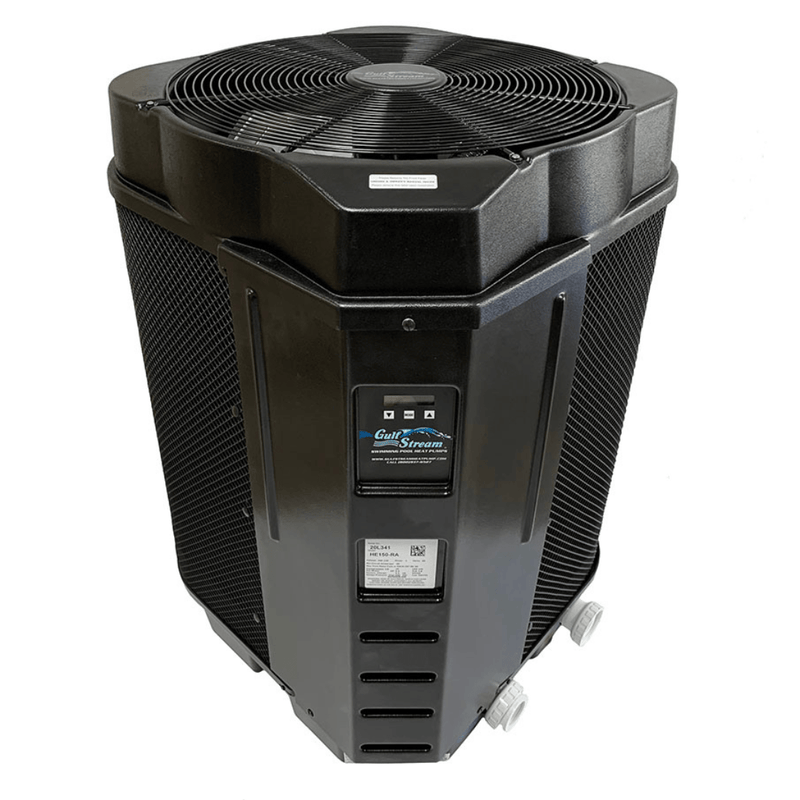

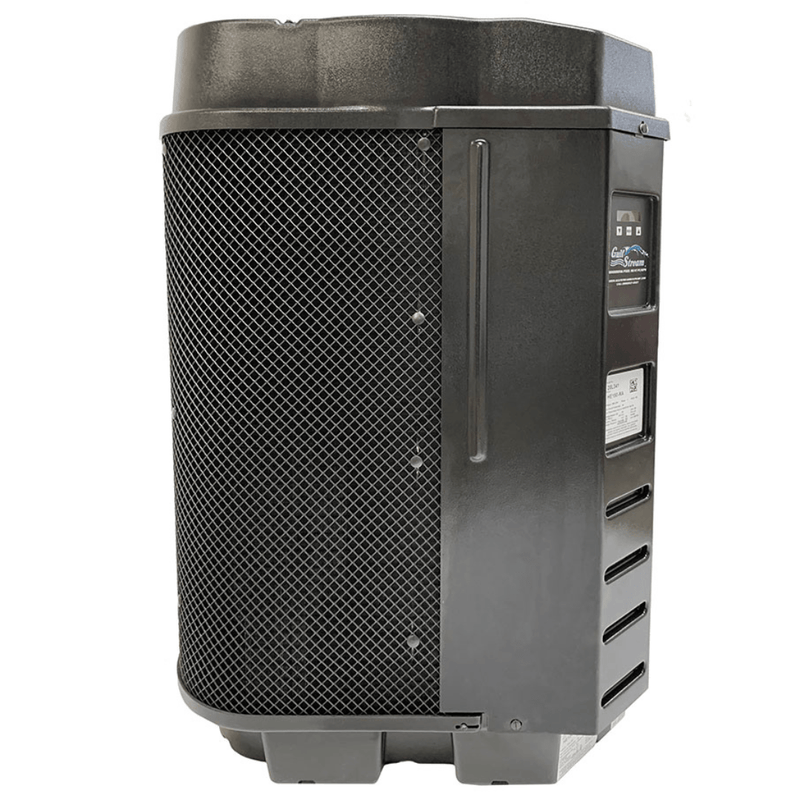

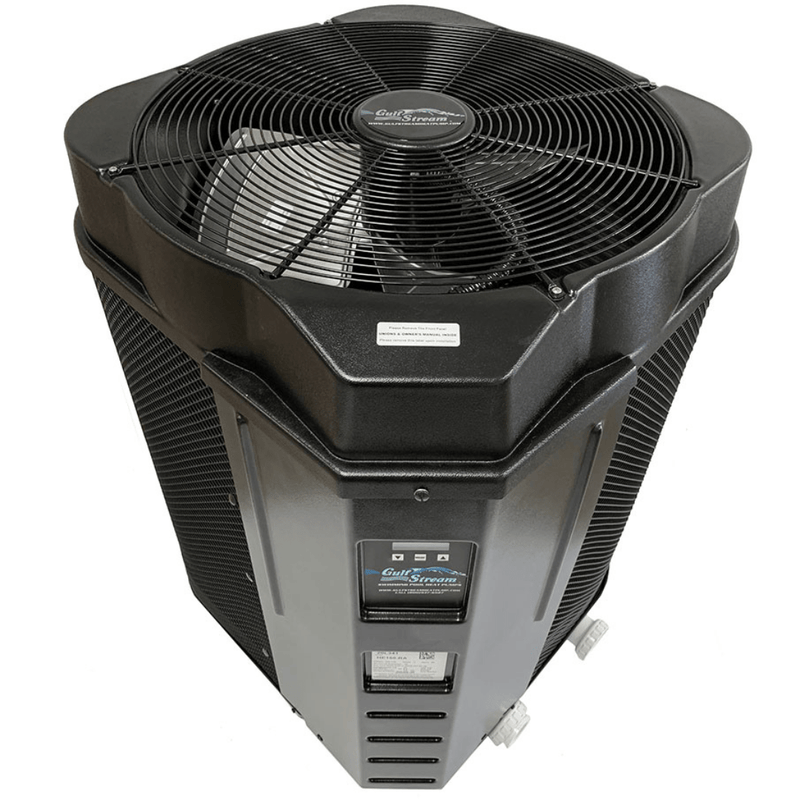

Gulfstream 122K BTU Heat/Cool Pump HE125TA

Gulfstream manufactures the HE 125 TA pool heat pump with top-quality components to guarantee efficiency. This model boasts 122,000-125,000 BTUs and offers both heating and cooling capabilities, allowing you to extend your swimming season further. Designed to excel in cooler climates while also accommodating hot summer months, Gulfstream has created a versatile heat pump. For year-round pool heating, even in colder-than-average conditions, opt for a durable heat-cool pump built to endure and maximize your pool's utility.

Features:

• Titanium Turbo Heat Exchanger
• Efficient Scroll Compressor
• Super-Quiet 8 Pole Emerson Fan Motor
• Higher efficiency in colder weather
• Quiet – as low as 56 decibels at full operation
• No-Rust ABS Cabinet

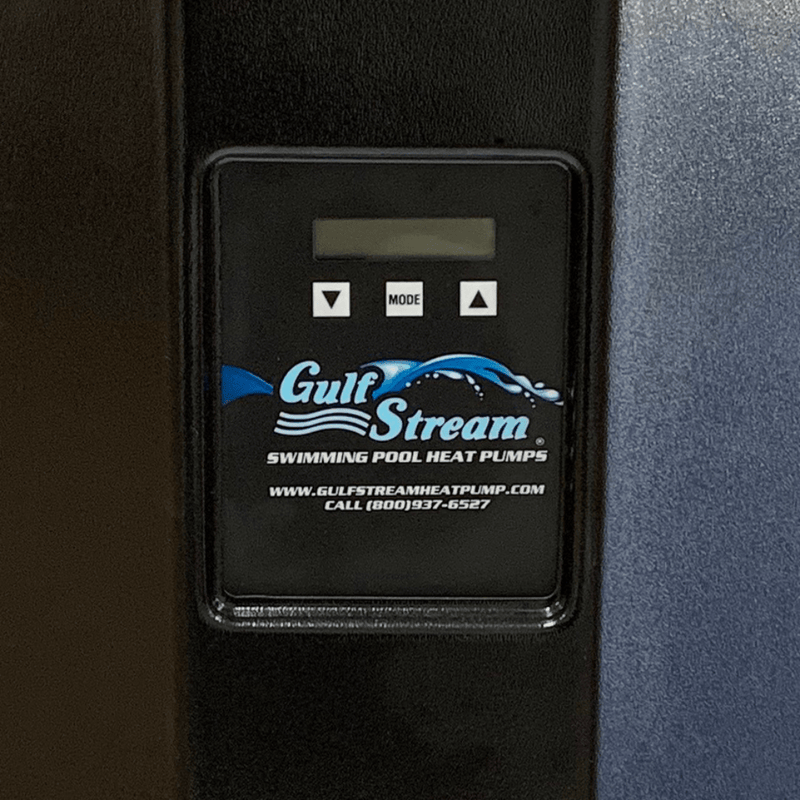

• Digital Diagnostic LCD Display reads in real words
• Super-Sized Evaporator Coil (20 square feet of wrap-around coil)
• Patented Refrigerant Metering System
• 2” Water flow - no need for an external bypass
• Plumbing located out of the way
• Compatible with all remote control systems
• R-410A Refrigerant is environmentally friendly
• Includes standard 2-year labor warranty
• Part Numbers: HE125TA, HE125-TA, HE 125 TA, HE125-T-A
• Spec Sheet
• Product Brochure

Specifications:

• Brand: Gulfstream
• Model Number: HE125-T-A
• COP 80/80/80: 6.2/122,000 BTU
• Minimum Circuit Ampacity: 37
• Main Time Delay Breaker: 50
• Average Running Amps: 23
• Voltage: 208-230
• Phase: 1
• Hertz: 60
• Plumbing Size: 2" Union
• Min/Max Flow Rate: 30-70
• Recommended Flow: 45
• Fan Motor: 1/3 HP
• Fan Load Amperage: 1.8
• Fan Speed RPM: 825
• Compressor Type: Scroll
• Compressor RLA: 26.9
• Compressor LRA: 145
• Refrigerant: R410A
• Unit Weight: 234 lbs
• Shipping Weight: 269 lbs
• Unit Dimensions: 31"x31"x46"
• Foot Print: 31"x31"
• Shipping Dimensions: 33"x31"x50"
• AHRI Testing Certification: 3694130

Optional Gulfstream Compass Wi-Fi Antenna Controller:

The Compass Wi-Fi Controller allows pool owners to remotely monitor and control their pool heat pump through an easy-to-use mobile app. The Compass antenna attaches to the pool heat pump and connects to the app via Wi-Fi.
