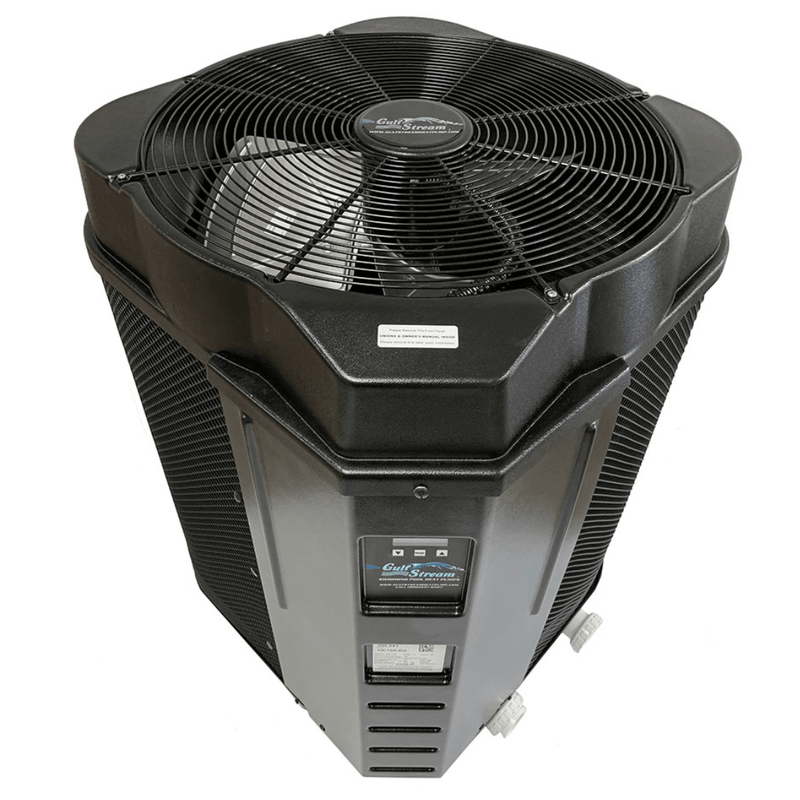

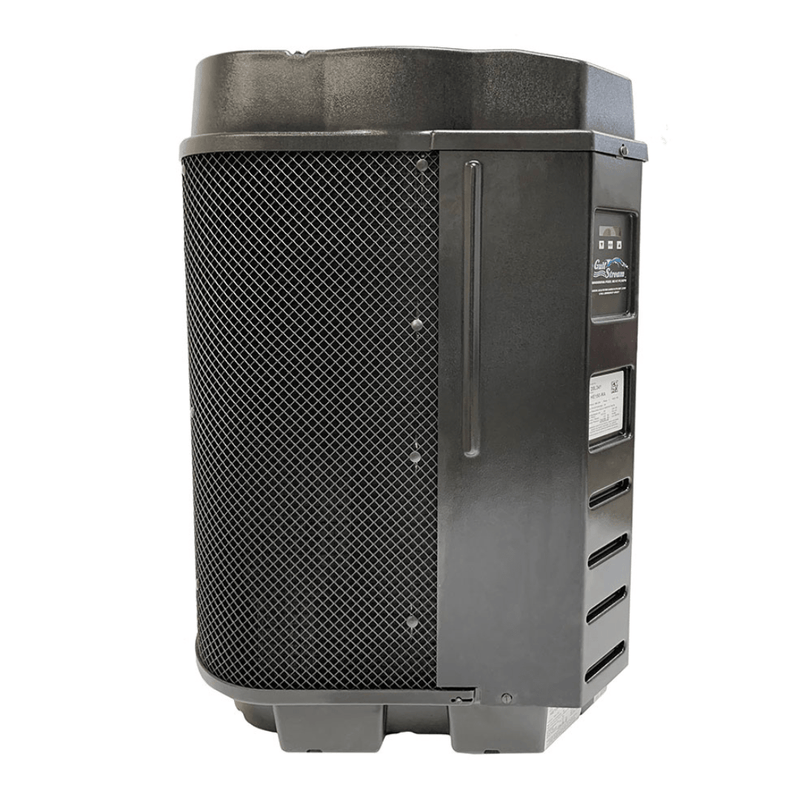

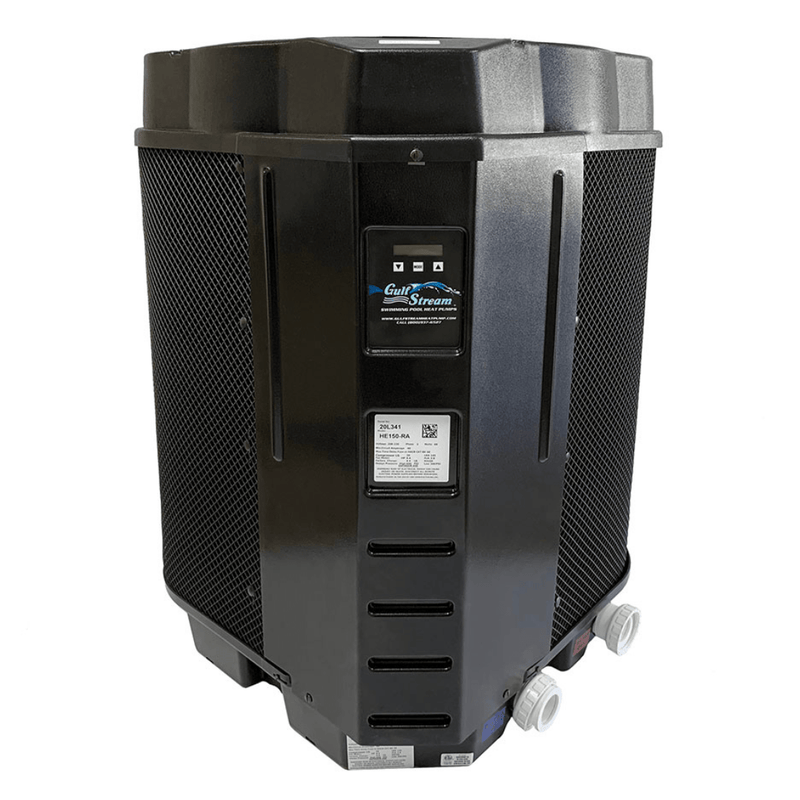

Achieve optimal heat efficiency at a minimal cost with the Gulfstream HE 110 RA pool heat pumps. Engineered for durability, they feature a 100% Titanium heat exchanger that guarantees immunity to rust and corrosion while maximizing heat transfer to your pool. Utilizing silent scroll compressor technology, these pumps consume minimal energy for maximum output, further enhanced by a low-speed fan that ensures quieter operation.

With a heating capacity of 115,000 BTUs and crafted from top-notch components, this heat pump is designed to provide reliable pool heating for years to come.

Features:

• Applications: Pools up to 15,000 gallons or 450 square feet
• Titanium Turbo Heat Exchanger
• Efficient Scroll Compressor
• Super-Quiet 8 Pole Emerson Fan Motor
• Higher efficiency in colder weather
• Quiet – as low as 56 decibels at full operation
• No-Rust ABS Cabinet

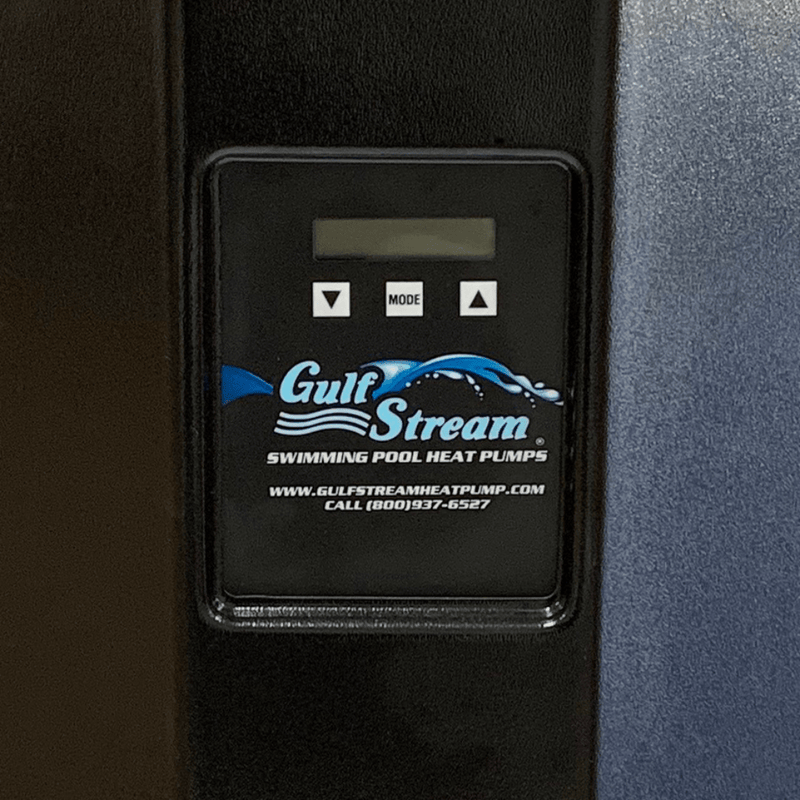

• Digital Diagnostic LCD Display reads in real words
• Super-Sized Evaporator Coil (20 square feet of wrap-around coil)
• Patented Refrigerant Metering System
• 2” Water flow - no need for an external bypass
• Plumbing located out of the way
• Compatible with all remote control systems
• R-410A Refrigerant is environmentally friendly
• Includes standard 2-year labor warranty
• Part Numbers: HE110-R-A, HE110-RA, HE110RA, HE 110 RA
• Spec Sheet
• Product Brochure

Specifications:

• Brand: Gulfstream
• Model Number HE110-R-A
• COP 80/80/80: 6.2/110,000
• Minimum Circuit Ampacity: 37
• Voltage 208-230
• Phase: 1
• Hertz: 60
• Plumbing Size: 2" Union
• Min/Max Flow Rate: 20-70
• Recommended Flow: 45
• Fan Motor: .04 HP
• Fan Load Amperage: 2.8
• Fan Speed RPM: 825
• Compressor Type: Scroll
• Refrigerant: R410A
• Unit Weight: 219 lbs
• Shipping Weight: 255 lbs
• Unit Dimensions: 31"x31"x34"
• Foot Print: 31"x31"
• Shipping Dimensions: 33"x33"x43"
• AHRI Testing Certification: 3694128
