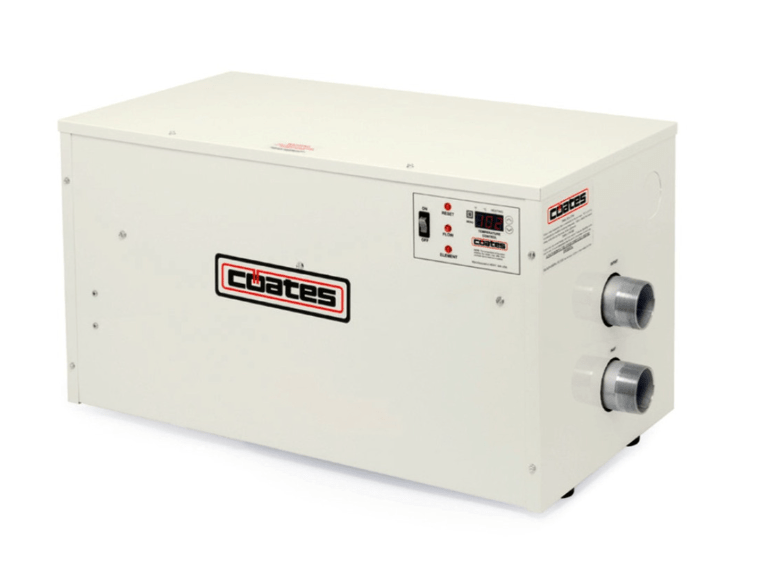

Coates 34824CPH CPH Electric Pool Heater 24KW, 480V, 29A, 3-Phase

Coates CPH Series Electric Pool Heater 24KW, 480V, 29A, Three Phase, 34824CPH

Note: Most Coates heaters ship within 2-5 business days.

Achieve optimal pool water temperature control with the Coates CPH Series Electric Pool Heater 24KW (model 34824CPH), purposefully designed for reliable performance. Operating seamlessly on a three-phase 480V, 29A system, this heater boasts advanced features, including Incoloy heating elements and a newly integrated digital thermostat for precise temperature adjustments. Built with durability in mind, the stainless steel tank, flow switch, and heavy-duty components make this heater a robust alternative to gas heaters.

• Incoloy heating elements
• Digital thermostat
• Manual reset high temp limit
• Flow switch
• 1-1/2″ male NPT connections
• Stainless steel tank
• Heavy-duty contactors
• Element, flow, and high temp “on” lights
• Element fusing on units rated over 48 amps

Specifications:

• 24”L x 12”W x 13”H (68 lbs)
• Min Flow Rate: 20 GPM
• Max Flow Rate: 80 GPM
• Three phase
• UL Listed for indoor/outdoor installation
