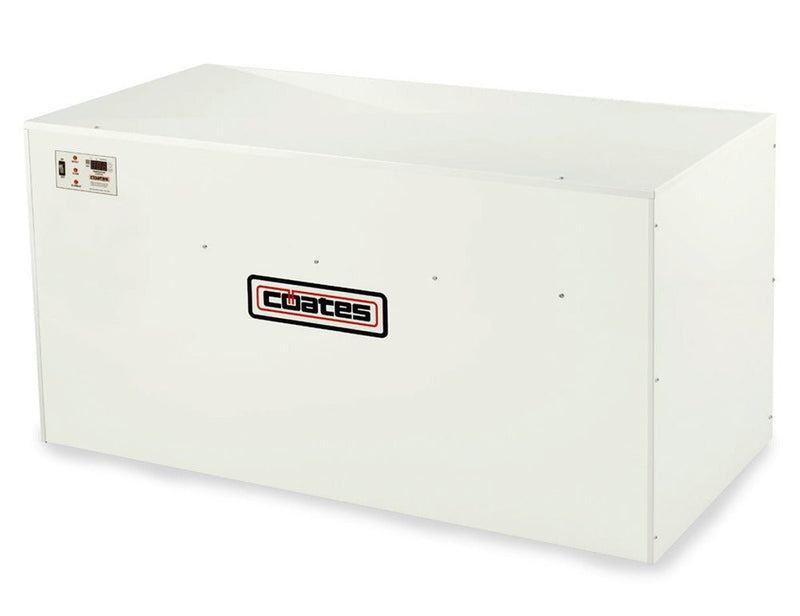

Coates 348180PHS-20 PHS-20 Commercial Pool Heater, 180kW, 480V 3-Phase
TradeGrade
Coates PHS-20 (180kW–300kW)
Designed for high-capacity commercial pool installations, Coates heaters incorporate design features that increase service life, dependability, and provide ease of servicing. Corrosion-resistant all stainless steel tank surfaces and low-watt-density Incoloy elements mounted on four-bolt stainless steel flanges provide long, trouble-free service life.
All electrical components are easily accessible under the conveniently hinged cover. Terminal blocks are provided for simplified power supply wiring.
Features:
- Stainless steel tank
- 35psi design pressure – ASME “U” stamp
- Incoloy heating elements
- Digital thermostat
- Manual reset high temp limit
- 240V control circuit
- Lighted “on/off” switch
- Element & flow “on” lights
- Pressure relief valve* (separate installation required)
- Flow switch* (separate installation required)
- Professional installation required (not included)
Technical Specifications:
- 54″L x 26″W x 28″H (425 lbs)
- UL Listed for Indoor Installation
- ASME Canadian Registration
*Please note: This heater is built to order and has a 14–18 week lead time.
Shipping, Installation & Warranty
Free Shipping: Most orders ship within 1 business day, unless otherwise noted.
Disclaimer: Professional installation (not included) is required, and proof of installation by a certified technician is needed to validate the factory warranty.
Warranty: Visit our warranty page or refer to the specific product user manual.
Disclaimer: Professional installation (not included) is required for warranty validation.
