Coates 32418CE CE Electric Pool Heater 18KW, 240V, 44A, 3-Phase
SKU 32418CE
Original price
$2,699.99
-
Original price
$2,699.99
Original price
$2,699.99
$2,699.99
-
$2,699.99
Current price
$2,699.99
Availability:
In stock

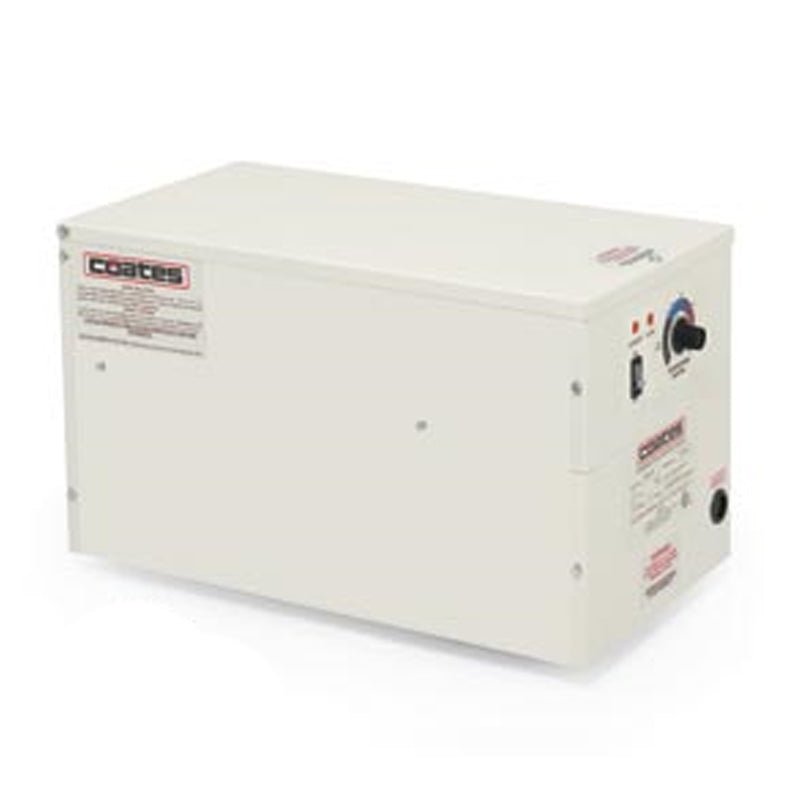

Coates CE Series Electric Pool Heater 18KW, 240V, 44A, Three Phase, 32418CE
Note: Most Coates heaters ship within 2-5 business days.
The Coates CE Series pool heaters feature a flow switch to prevent operation when there is no water flow. An all stainless steel tank for long life and corrosion resistance is also standard. Available in single-phase and three-phase configurations.
Features:
- Incoloy heating elements
- Digital thermostat
- Manual reset high temp limit
- Flow switch
- 1-1/2″ male NPT connections
- Stainless steel tank
- Heavy-duty contactors
- Element, flow, and high temp “on” lights
- Element fusing on units rated over 48 amps
Specifications:
- 19”L x 10”W x 11”H (47 lbs)
- Min Flow Rate: 20 GPM
- Max Flow Rate: 80 GPM
- Three Phase
- UL Listed for indoor/outdoor Installation
Specifications
| Amperage Draw | 44 A |
| Brand | Coates |
| Cabinet Depth | 11 Inch |
| Cabinet Height | 19 Inch |
| Cabinet Width | 10 Inch |
| Flow Rate | 20 - 80 gpm |
| Heat Output | 18 kW |
| Item | Electric Heater |
| Maximum Breaker Size | 60 A |
| Phase | 3-Phase |
| Series | CE |
| Voltage Rating | 240 V |
| Water Connection | 1-1/2 Inch MNPT |
| Wire Size | 6 AWG |
Shipping, Installation & Warranty
Free Shipping: Orders ship within 1 business day unless otherwise noted.
Warranty Information & Support: Visit our warranty page or refer to the specific product user manual.
Disclaimer: Professional installation (not included) is required for warranty validation.
Note: Images are for representation.
