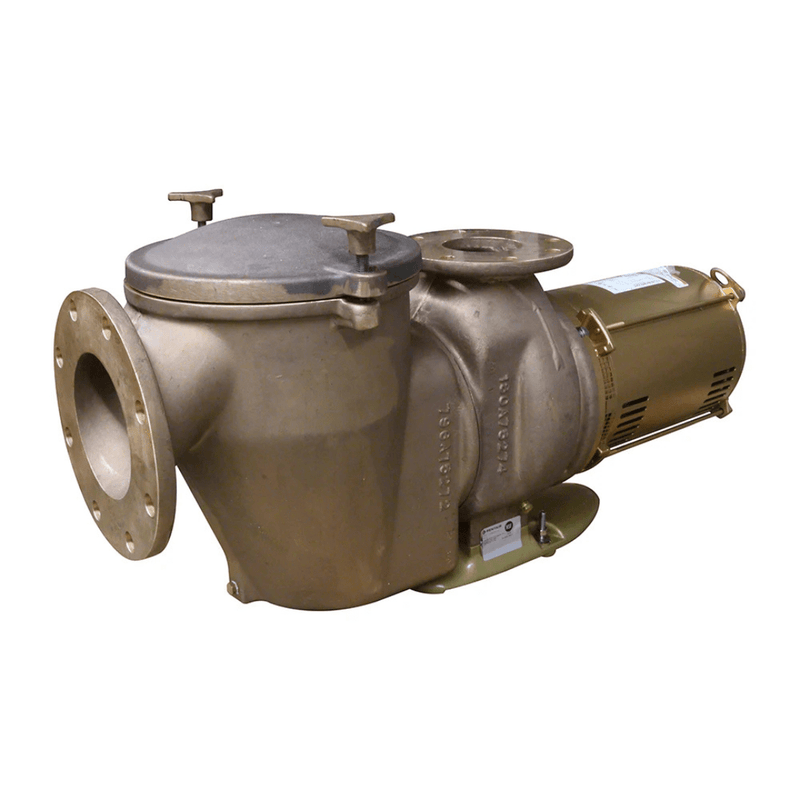

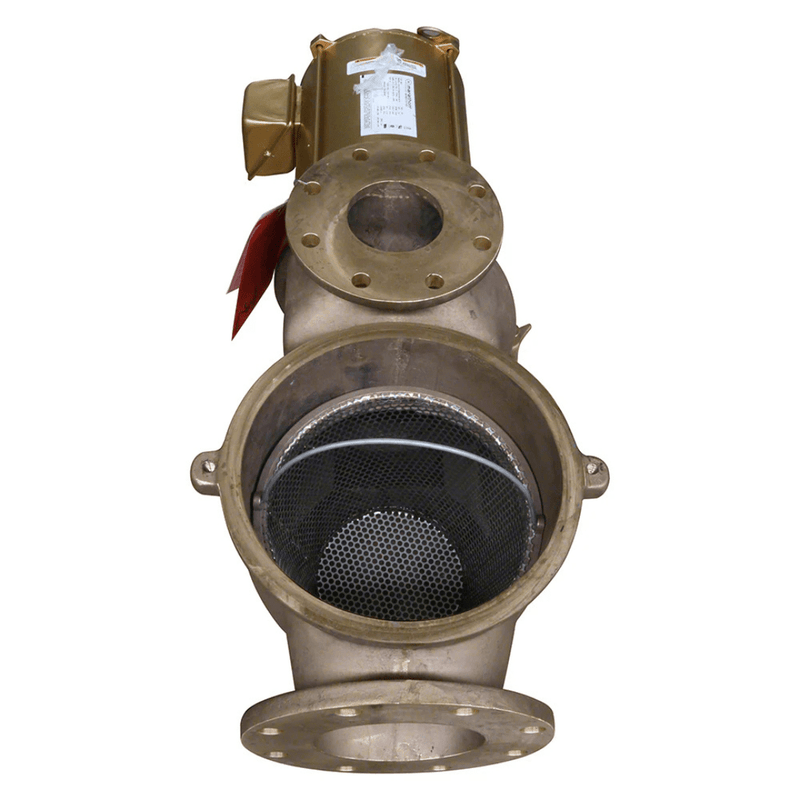

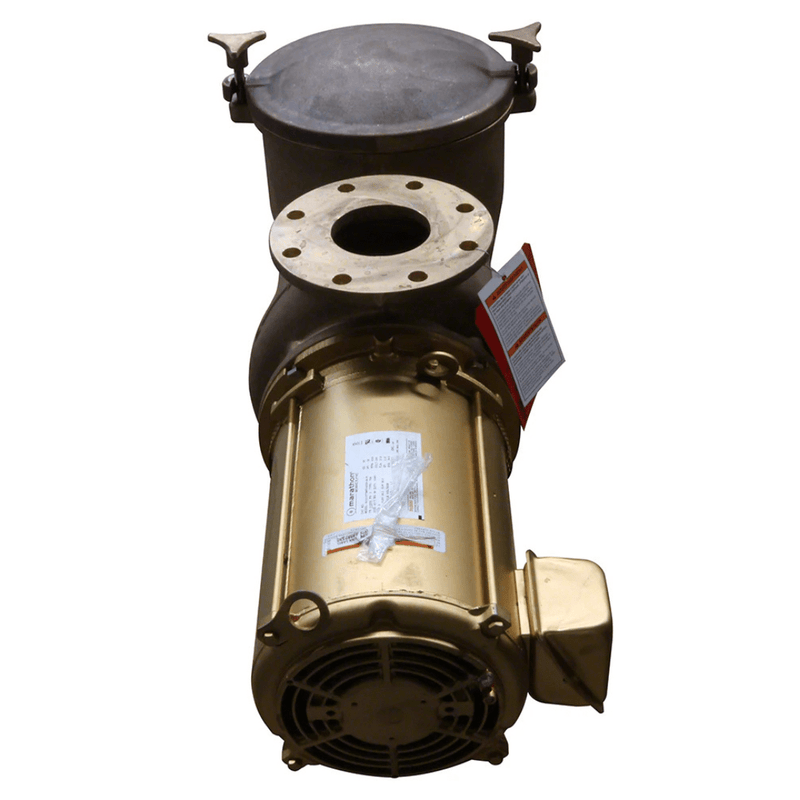

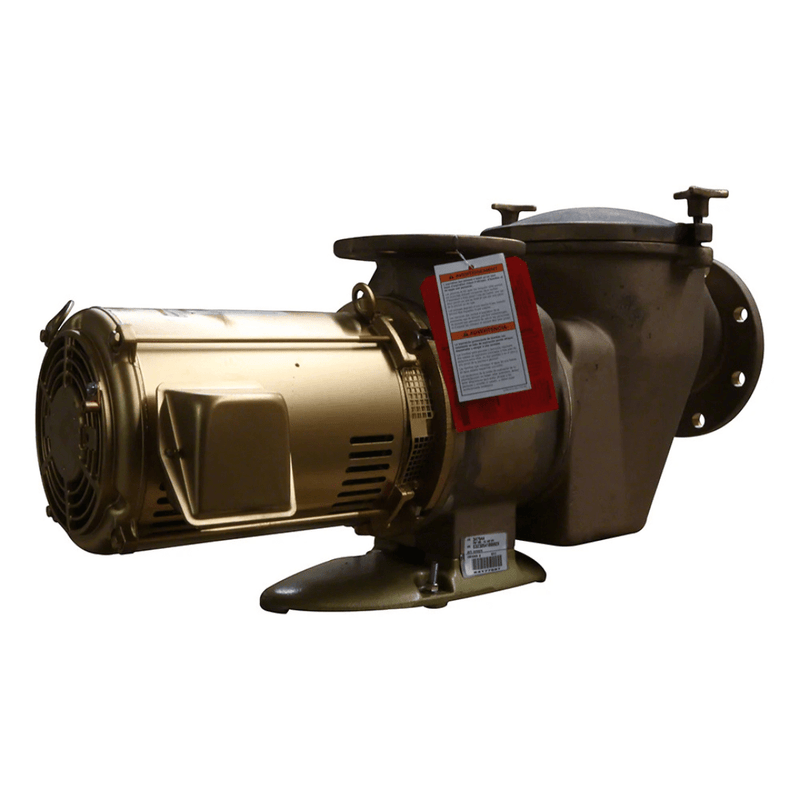

Pentair 011659 C-Series CHK-100 10 HP 220/440V 3-Phase High Head Pump

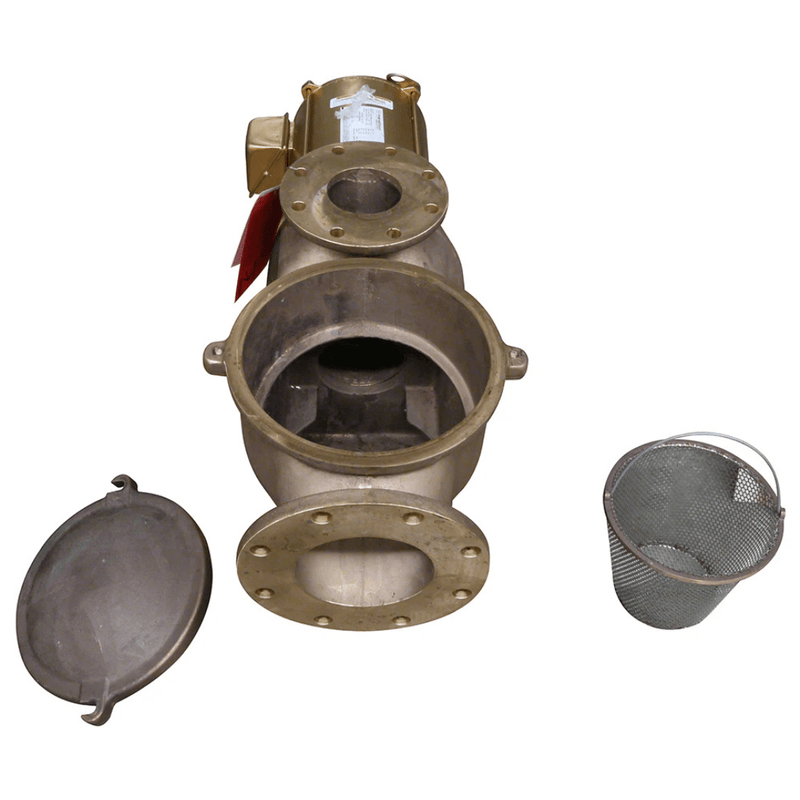

Pentair 011659 C Series 10 HP High Head Commercial Bronze Pump with Hair and Lint Strainer (3-Phase, 220/440V)
The Pentair 011659 C Series 10 HP High Head Commercial Bronze Pump is engineered for maximum durability and efficiency in demanding applications. Designed with a bronze volute and pot, coated cast iron foot, and flanged connections, this pump features a 6" suction and 4" discharge for optimal performance. The C Series is ideal for both indoor and outdoor commercial projects, providing reliable, quiet operation and easy maintenance. Known for its lasting efficiency and high-head capabilities, it has become the standard for medium to high-head performance in the pool industry.
Key Features:
- 10 HP, 3-phase, 220/440V, 25.3/12.6 Amp
- Bronze volute and pot for durability
- Coated cast iron foot and flanged connections
- 6" suction and 4" discharge
- Ideal for medium and high-head applications
- Designed for easy maintenance and quiet operation
Support Documents:
Specifications:
- Brand: Pentair
- Amps High Speed: 25.3
- Shipping Dimensions: 20 x 45 x 22 inch
- Amps Low Speed: 12.6
- Application: Pool
- Commercial, Residential, or Professional: Commercial
- Weight: 376 pounds
- Flow Rate Max: 740 gal/min
- Flow Rate Min: 0 gal/min
- Frequency Rating (Hz): 60
- Horsepower: 10 horsepower
- Material: Bronze
- Motor Speed: 1-Speed
- Phase: Three
- Service Factor: 1.15
- Service Factor HP: 11.5
- Thrust HP: 10
- Voltage: 220V
- UPC Code: 788379663681
Shipping, Installation & Warranty
Free Shipping: Orders ship within 1 business day unless otherwise noted.
Warranty Information & Support: Visit our warranty page or refer to the specific product user manual.
Disclaimer: Professional installation (not included) is required for warranty validation.
Note: Images are for representation.
