Pentair 461058 125K BTU MasterTemp 125 Natural Gas Heater
TradeGrade
Pentair MasterTemp® 125 461058 Digital High Performance Heater without Cord; 125K BTU, Natural Gas
The MasterTemp 125 Heater provides energy-saving and advanced operating features that are available only from much larger heaters. With its revolutionary pre-mixed gas combustion technology, the MasterTemp 125 Heater offers 82% thermal efficiency, the highest in its class. The advanced LCD/controller provides more information and better control.
Key Features:
- With smart connectivity and energy-saving automation, it’s easier than ever to get the pool warm and ready whenever needed.
- New automation functionality and ignition control module with flame strength sensor for always optimized performance.
- MasterTemp 125 Heater is certified for low NOx emissions.

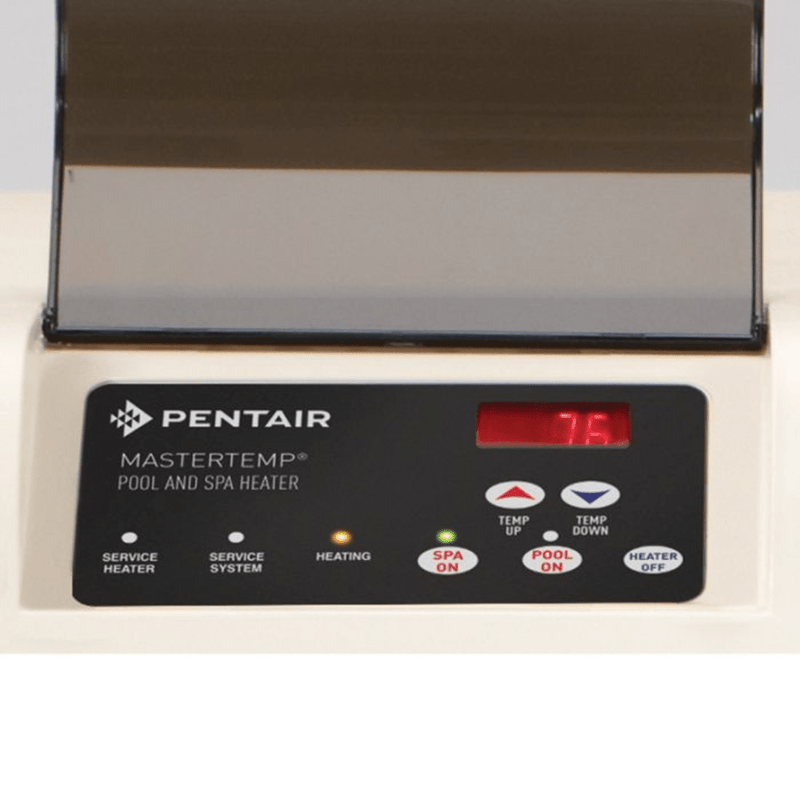

- The multi-position top panel allows the digital display to be re-positioned for convenient operation.
- A tough, rustproof exterior handles the heat and weathers the elements.
- Certified for outdoor and indoor installations.
- 1-1/2 in. Plumbing connection—ideal for smaller bodies of water, including aboveground pools, spas, and inground pools up to 15,000 gallons
- Available in natural gas or propane gas
- Lightweight: 80 lbs.—easy to handle and ship
- 3/4 in. gas line up to 50 ft. from the source
- The optional Smart Heater Bypass valve control diverts water flow when the heater isn’t needed to help save up to 35% in yearly operational costs.*
Specifications:
- Brand: Pentair
- Amperage: 15 amperage
- Shipping Dimensions: 23 x 36 x 25 inch
- Application: Indoor, Outdoor, Pool, Spa
- BTU Input: 125000 British thermal units

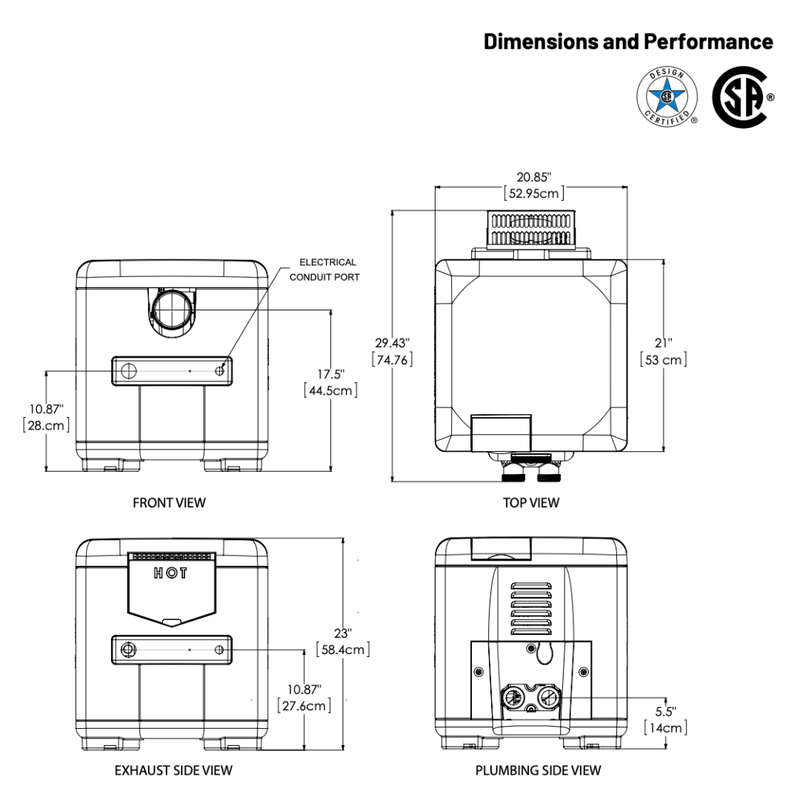

- Cabinet Depth: 29.43 inches
- Cabinet Height: 23 inches
- Cabinet Width: 21 inches
- Commercial, Residential, or Professional: Residential
- Control Type: Digital
- Weight: 100 pounds
- Flow Rate Max: 70 gal/min
- Flow Rate Min: 70 gal/min
- Frequency Rating (Hz): 60
- Fuel Type: Natural Gas
- Gas Connection: 0.75 inch
- Green or Energy Efficient Product: True
- Phase: Single
- Product Depth: 23 inches
- Product Height: 21 inches
- Product Width: 21 inch
- Voltage: 120V, 240V
- Warranty: 2 years
- UPC Code: 788379859923
Support Documents:
- MasterTemp 125 High-Performance Heater
- MasterTemp 125 Heater Installation and User Guide
- MasterTemp 125 Heater Burner System
- MasterTemp 125 Heater Electrical System
- MasterTemp 125 Heater Water System
- How to Size a Pool Heater: BTU Quick Reference Chart
Accessories (*sold separately):
Shipping, Installation & Warranty
Free Shipping: Most orders ship within 1 business day, unless otherwise noted.
Disclaimer: Professional installation (not included) is required, and proof of installation by a certified technician is needed to validate the factory warranty.
Warranty: Visit our warranty page or refer to the specific product user manual.
Disclaimer: Professional installation (not included) is required for warranty validation.
