by Pentair Pool

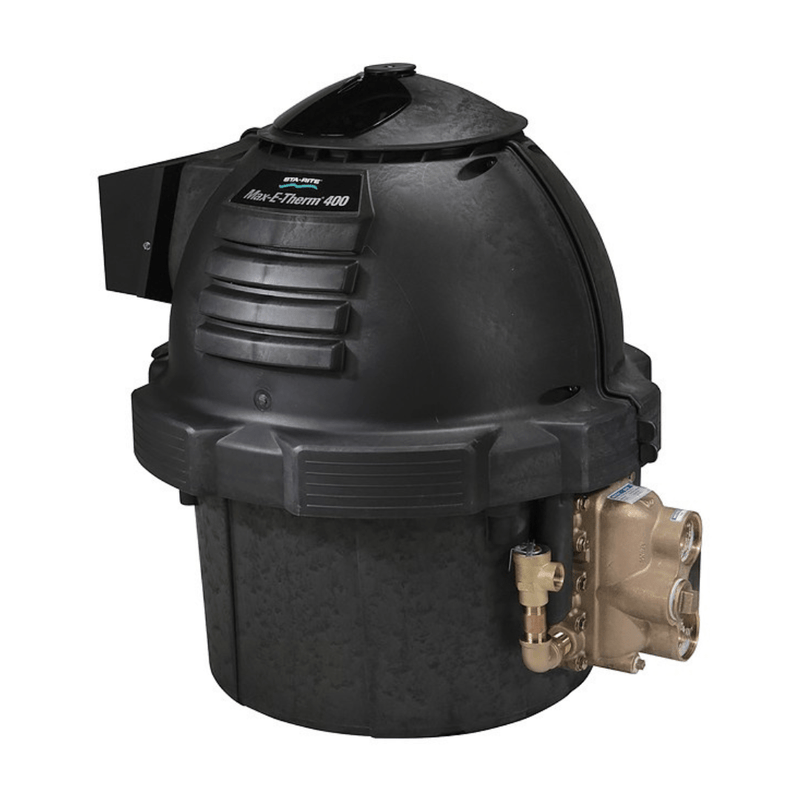

Pentair Sta-Rite Max-E-Therm 400 ASME Natural Gas Heater Bronze Header, Cupronickel, 460763
SKU 460763
TradeGrade
Pentair Max-E-Therm® 460763 Digital IID ASME High Performance Natural Gas Low Nox Pool and Spa Heater with Cupro Nickel Tubing 400K BTU
Ultra-High ASME® certified performance in a compact, quiet, and eco-friendly design for your commercial application.
- The bronze header design allows for easy access to the thermal regulator and bypass valve service without the use of special tools.
- Upgrades to the thermal regulator include a governing stainless steel sleeve for better wear protection.
- All internal components of the bronze header are now plastic for lightweight, corrosion, and wear protection.
- The ignition Control Module includes more diaphragm spring force for better gas control and robust operation.
- A fuller pre-mixed system with a highly efficient air and gas mixture allows for faster heat-up times.
- Efficiencies up to 84%
Support Documents:
Specifications:
- Brand: Pentair
- Application: Indoor, Outdoor, Pool, Spa
- Cabinet Depth: 31.69 inch
- Cabinet Height: 30.03 inch
- Cabinet Width: 25.15 inch
- Commercial, Residential, or Professional: Commercial
- Control Type: Digital
- Weight: 154 pounds
- Flow Rate Max: 120 gal/min
- Flow Rate Min: 120 gal/min
- Frequency Rating (Hz): 60
- Fuel Type: Natural Gas
- Green or Energy Efficient Product: True
- Phase: Single
- Standards Approvals: CSA Certified, ASME Certified
- Voltage: 120V, 240V
- BTU Input: 400,000 British thermal unit
- Tubing Material: Cupro Nickel
- UPC Code: 788379747572
- Warranty: 2-year warranty with professional installation
Optional Accessories:
- 475002 Air Intake Kit
- 462048 Smart Heater Bypass Kit
Shipping, Installation & Warranty
Free Shipping: Most orders ship within 1 business day, unless otherwise noted.
Disclaimer: Professional installation (not included) is required, and proof of installation by a certified technician is needed to validate the factory warranty.
Warranty: Visit our warranty page or refer to the specific product user manual.
Disclaimer: Professional installation (not included) is required for warranty validation.
