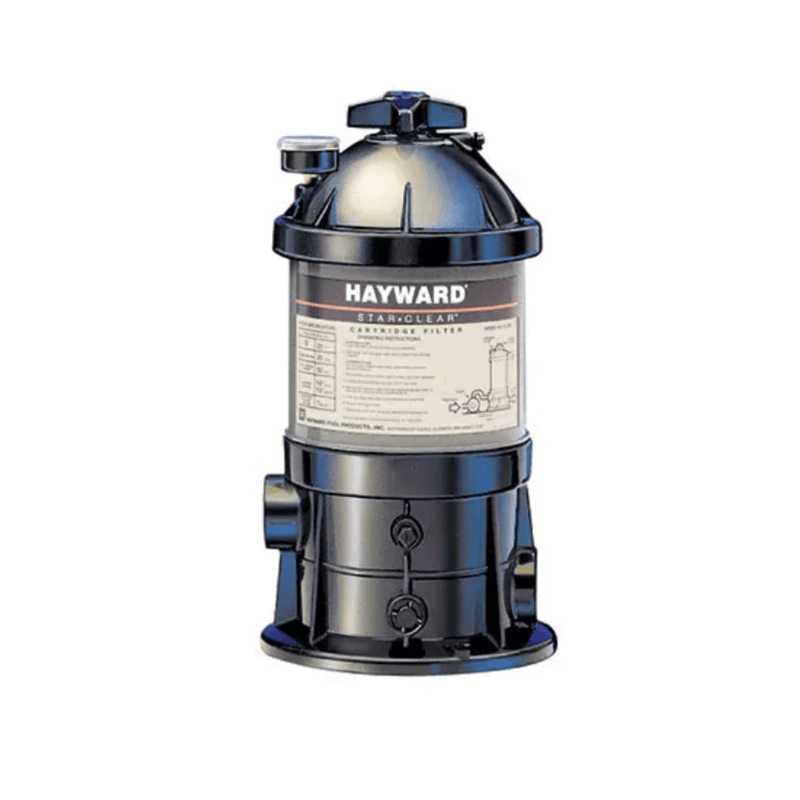

Hayward W3C500 50 Sq Ft StarClear Single Cartridge Filter, Above Ground
Hayward Star-Clear™ cartridge filters provide crystal-clear water and have extra cleaning capacity to accommodate pools and spas of all types and sizes.
- For replacement or new pool installations, Star-Clear sets the standard of excellence and value.
- Single locking knob securely fastens head to filter tank, eliminating bolts or clamps
- An attractive, durable filter head may be rotated to conveniently position the pressure gauge and manual air relief
- Injection-molded filter tank for dependable corrosion-free performance
- Extra-large cartridge element with new precision-engineered core provides extra strength and maximum flow
- Elevated, filtered water collector and debris sump prevent accidental by-pass of heavy debris to the pool or spa when the cartridge is removed for cleaning
Specifications:
- Brand Hayward
- Cartridge Yes
- Clearance For Head Removal 28 in
- Design Flow Rate 50
- Drain Port Size 1/2 FIP
- Effective Filtration Area 50 SQFT
- Filter Type Cartridge
- Footprint 11 x 11 INCH
- UPC/GTIN 610377387026
- Number Of Filter Elements 1
- Pool Type Above Ground
- Pressure Gauge Yes
- Product Dimensions 29.5 " x 10.5 " x 10.5 "
- Product Height 29.5 in
- Product Length 10.5 in
- Product Weight 17 lb
- Product Width 10.5 in
- Public Design Flow Rate 18
- Residential Design Flow Rate 50
- Series Filters StarClear
- Shipping Dimensions 28.6 " x 10.8 " x 10.8 "
- Shipping Height 28.6 in
- Shipping Length 10.8 in
- Shipping Weight 16 lb
- Shipping Width 10.8 in
- Side Clearance - Filters 18 in
- Tank Type GFR
- Turnover 10 Hours 11250 GPM
- Turnover 8 Hours 9000 GPM
- StarClear Cartridge Filter Owner's Manual
*Sizing Note: The gallon capacities listings are estimates only. They will vary depending on the pump size and the turnover rate. The actual number of gallons your filter can manage depends on your pump’s flow rate and the specific needs of your pool (debris load, drains, usage, etc.). You can adjust these capacities if you plan for a different turnover time (e.g., 12-hour turnover).
Need help sizing your pool? Contact us anytime - we’re here to help!
Shipping, Installation & Warranty
Free Shipping: Most orders ship within 1 business day, unless otherwise noted.
Disclaimer: Professional installation (not included) is required, and proof of installation by a certified technician is needed to validate the factory warranty.
