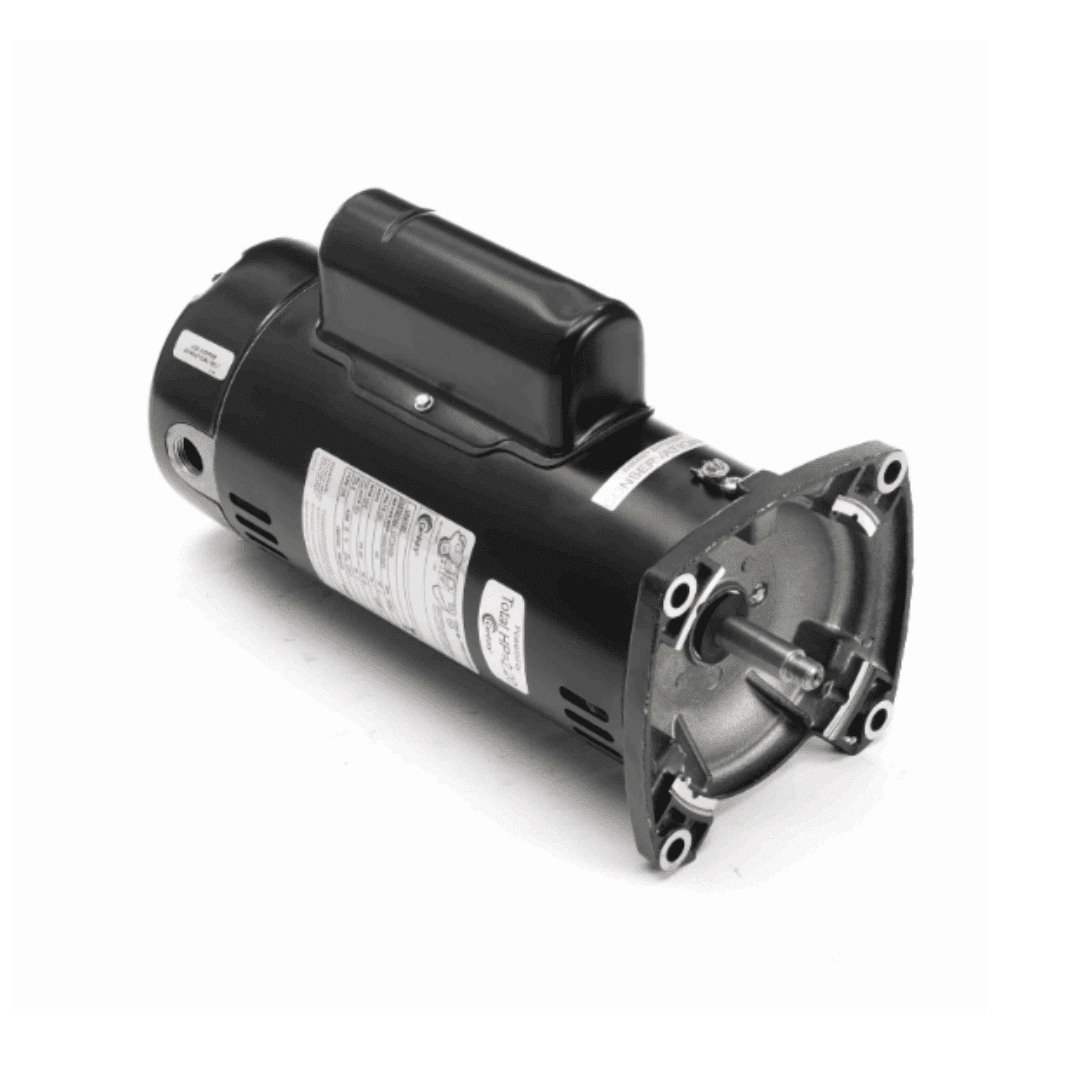

How to Replace a Pool Pump Motor

Is your pool pump motor humming, grinding or not turning on at all?

Unfortunately, any of these things are a pretty clear sign that something is wrong. Replacing the pool pump motor can mean paying for a whole new pump and/or calling a professional. This might be the right call depending on your experience level. However, if you’ve done it before or are fairly handy, you can try to replace it yourself and get your pool running smoothly again. Again, it’s important to be honest with yourself about your experience level because this is very much an intermediate-level project that does require some expertise.

This post will walk you through the basic process of changing a pool pump motor. By following these steps, you can save both time and money while keeping your pool in top condition.

Can You Replace a Pool Pump Motor Yourself?

Yes, a swimming pool pump motor can be replaced at home if you have mechanical and electrical skills. Changing a pool pump motor is a very cost-effective way to bring your pump back to life without replacing the entire thing. The process involves turning off power, disconnecting plumbing and wiring, removing the old motor, installing the new one and reassembling the pump.

However, we really want to emphasize that following safety steps carefully is key to a successful and lasting repair. If you are unsure about anything, especially electrical items, it’s good to consult a professional.

How to Tell if Your Pool Pump Motor is Bad

Figuring out if a pool pump motor is failing can save a lot of time and money. Some problems are easy to spot if you know what to look for. Also, an important thing to remember is motor capacitors (which we talk about below) can store an electrical charge even after power is shut off. So, you want to avoid touching capacitor terminals unless you know how to discharge them safely.

With that in mind, keep an eye out for these common signs that a pool motor might need attention:

• Humming or buzzing noises: Often a sign the motor is seized or the capacitor is failing.
• Grinding or screeching sounds: Usually points to worn-out bearings that need replacing.
• Tripping the circuit breaker: Could mean there’s an electrical short inside the motor.
• Pump won’t turn on:Check the power supply and capacitor first, but a dead motor could be the cause.
• Motor overheating and shutting down: The thermal overload switch is activating, which often signals a failing motor.
• Visible smoke or a burning smell: This is a clear warning that the electric motor for the pool pump has failed and needs replacing.

Watching for these signs early can help decide if it’s time for a pool pump motor replacement before more damage occurs. Catching the problem quickly also makes changing a pool pump motor much simpler and keeps your pool running smoothly.

Replace Just the Motor or the Entire Pump? A Smart Decision Guide

Deciding between replacing just the pool motor or the entire pump is a really important step in this process. Choosing the right approach can actually save you money, prevent future problems and keep your pool running well. Here’s a simple way to figure out which option makes the most sense.

When to Replace Just the Pool Motor

Replacing only the motor is usually the most cost-effective solution if the pump housing, or “wet end,” is in good shape with no cracks or leaks. This works best for pumps that are less than 10 years old and when an exact replacement motor and seal kit are available. Swapping out the motor is faster and cheaper, and a proper installation will keep your swimming pool pump motor running smoothly for years. This is only a good option if you have experience doing it, though, as you need to have electrical as well as plumbing experience.

When to Replace the Entire Pump and Motor

Sometimes replacing the whole pump is the smarter choice. This is often necessary if the pump housing is cracked, leaking or very old and brittle. It’s also a good time to upgrade to a more energy-efficient variable-speed pump. If the cost of a new motor is more than half the price of a complete pump, or a replacement motor isn’t available for an older model, installing a new pump and motor makes sure you have reliable performance and reduces future maintenance.

Step-by-Step Guide: How to Replace Your Pool Pump Motor

Replacing a pool pump motor can feel intimidating, but breaking it into clear steps can help make it manageable. It’s important to note that these are general steps, and your pump might differ slightly. Also, we’d recommend taking photos at each stage to help with reassembly and make sure the wiring and plumbing go back exactly as they were.

Step 1: Gather Your Tools and Find the Right Replacement Motor

Before starting, make sure you have the right tools. This will vary. So, make sure you review your owner’s manual. Generally, you’ll probably need things like a socket and wrench set, screwdrivers (Phillips and flathead), pliers, wire strippers, o-ring lubricant and a shaft seal puller if needed. Identifying the correct replacement swimming pool pump motor is critical. Check the label on your old motor for the manufacturer, model number, frame (FR), horsepower (HP), service factor (SF), voltage and RPM. These details will help to make sure the new pool pump motor matches your pump for safe and efficient operation.

Step 2: Safety First – Power Down and Depressurize

Turn off power to the pump at the circuit breaker, and make sure to use a voltage tester at the breakers and motor terminals to confirm there is no power present before touching any wires. Then, relieve pressure in the system by opening the air relief valve on the filter. This step is important to make sure you don’t get injured or the system doesn’t get damaged during the replacement.

Step 3: Disconnect Wiring and Plumbing

Before disconnecting the motor, locate the bonding wire (usually a solid copper wire attached to a lug on the motor housing). This wire must be reconnected to the new motor exactly as it was. Bonding is required for pool safety and should never be skipped. Start by loosening the plumbing unions before and after the pump. Open the back cover of the old motor and carefully disconnect the wires. Taking a clear photo of the wiring setup now will make reconnecting the new motor much easier.

Step 4: Separate the Motor from the Pump Housing

Unbolt the motor assembly from the pump housing (the wet end) and remove the diffuser. Then take off the impeller, keeping in mind that some models are reverse-threaded. Holding the motor shaft from the back may be necessary to loosen it safely.

Step 5: Install the New Shaft Seal and Reassemble

Replacing the shaft seal is essential to preventing leaks in your system. Install the two-part seal carefully, one piece in the seal plate and the other on the impeller shaft. Avoid touching the ceramic or carbon surfaces with your bare hands. Reattach the impeller, diffuser and bolt the new motor to the housing. Replace any worn o-rings or gaskets while you’re at it.

Step 6: Rewire the New Motor and Reconnect Plumbing

We'd suggest using your photo and the wiring diagram on the new motor to connect the wires correctly. If the motor is a dual-voltage model (115V/230V), you'll want to set the switch to match your system. Then reconnect the plumbing unions, making sure the o-rings are clean and lubricated for a proper seal.

Step 7: Prime the Pump and Test for Leaks

Before turning the pump on, prime it. Fill the basket with water and replace the lid. Open the valves, restore power at the breaker and start the pump. Check carefully for leaks, especially around the shaft seal, to make sure your new pool pump motor installation is successful and the system runs smoothly.

Again, please keep in mind that these are general instructions and your pump may be different. If you are ever unsure about anything, be sure to consult a professional.

Troubleshooting After Your New Pool Motor Installation

Even after a smooth installation, small issues can pop up with a new pool pump motor. Knowing what to look for can save time and prevent damage. Here are some common problems and how to handle them:

• New motor won’t start:First, double-check the circuit breaker, wiring connections and voltage setting. A simple misstep here can prevent the motor from running.
• Pump is leaking:Most leaks come from an improperly installed shaft seal. Also, check all o-rings and gaskets to make sure everything is sealed correctly.
• Pump isn’t moving water:If the pump has lost its prime, refill the basket and repeat the priming process. This usually restores proper flow.

Taking care of these issues early keeps your pool pump motor running well and helps prevent bigger problems down the line. Simple checks like these can make replacing a pool pump motor feel manageable and stress-free.

Keep Your Pool Running Smoothly

Replacing a pool pump motor is doable as long as you have some experience, pay attention to safety and ensure there is proper wiring. Make sure there is a correctly installed shaft seal to ensure your pool pump motor runs well for years.

If the pump itself is due for an upgrade, Vita Pool Supply has a great selection of pool pumps and motors to choose from. Taking action now keeps your pool clear, your equipment running smoothly and your swim season stress-free. A well-maintained motor means crystal-clear water and more time to enjoy your pool.

FAQs

Can you replace just the motor on a pool pump?

Yes, replacing only the motor is possible on most pumps. If the pump housing is in good condition and you can find a matching replacement, swapping the motor is a cost-effective way to restore your pool pump without buying an entirely new unit. However, it is important that either you have some experience or hire a professional. Safety should always be your first priority.

How much should it cost to replace a pool pump motor?

For a DIY replacement, a new pool pump motor usually costs between $200 and $800 depending on horsepower and type. A shaft seal or seal kit adds another $20–$50. If hiring a professional, labor typically ranges from $150 to $400. This varies by region.

How to tell if a pool pump motor is bad?

The big signs include humming or buzzing noises, grinding sounds, tripped breakers, the pump not turning on, overheating or even smoke and burning smells.
