Description:

FOR COMMERCIAL SWIMMING POOLS & OTHER WATER APPLICATIONS.

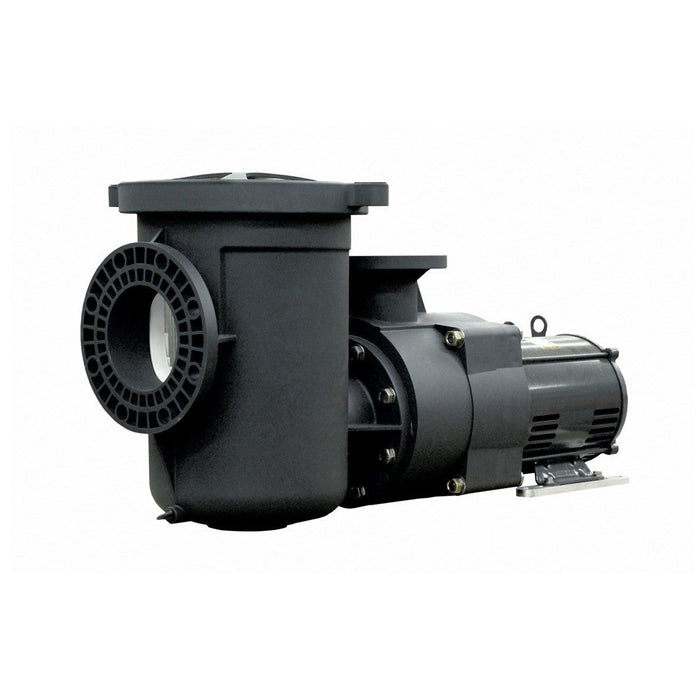

EQ Series Pumps are designed for maximum efficiency and quiet operation in every detail. They are the only non-corrosive, all-plastic pumps designed for the commercial pool and water applications market. The EQ Series Pump impellers are manufactured for breakthrough performance, allowing lower loads and longer motor life. The pumps are available with and without the strainer pot and flow to 800 GPM and from 3–15 HP.

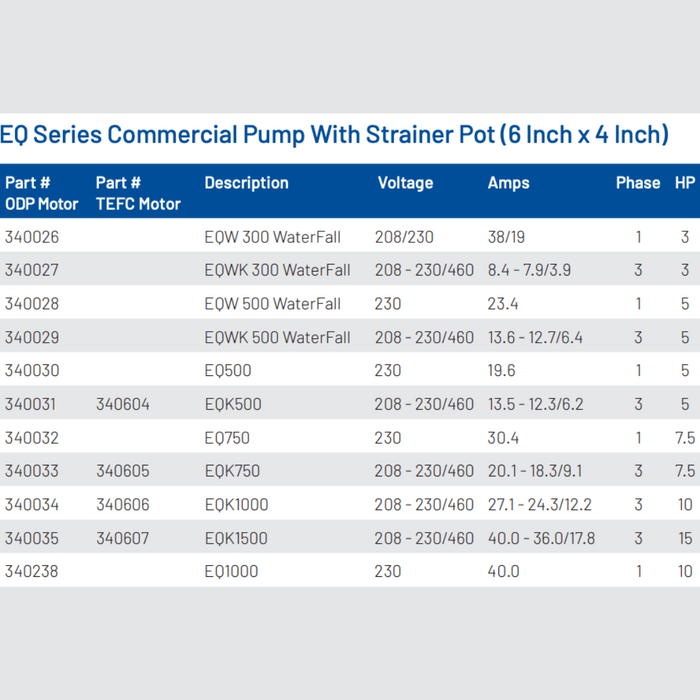

• 15HP • 208-230/460V • 39-36/18 Amp
• Part No. 340607, UPC 788379864774
• Close-coupled for quiet, stable flow operation.
• Lightweight for easy, one-man installation.
• Clear Cam and Ramp™ Lid for added service convenience.
• Available in single- and three-phase models.
• TEFC motor is available, three-phase only.
• Closed impeller for long life and durability.

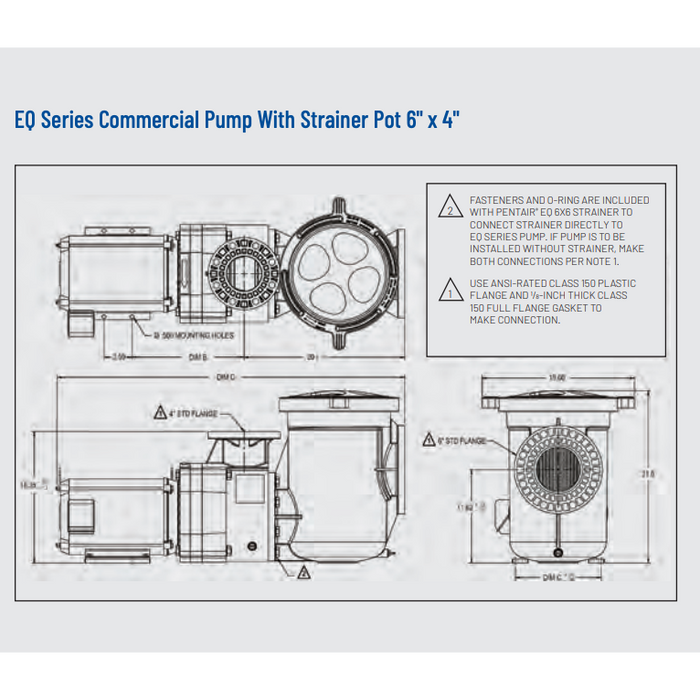

• 6-inch suction and 4-inch discharge with strainer pot.
• Great for use with Acu Drive™ XS Variable Frequency Drives.
• Self-priming under NSF standards; NSF certified.

Support Documents:

• EQ Series Commercial Pump Brochure
• EQ Series Commercial Pump Owner's Manual
• EQ Pump Strainer
