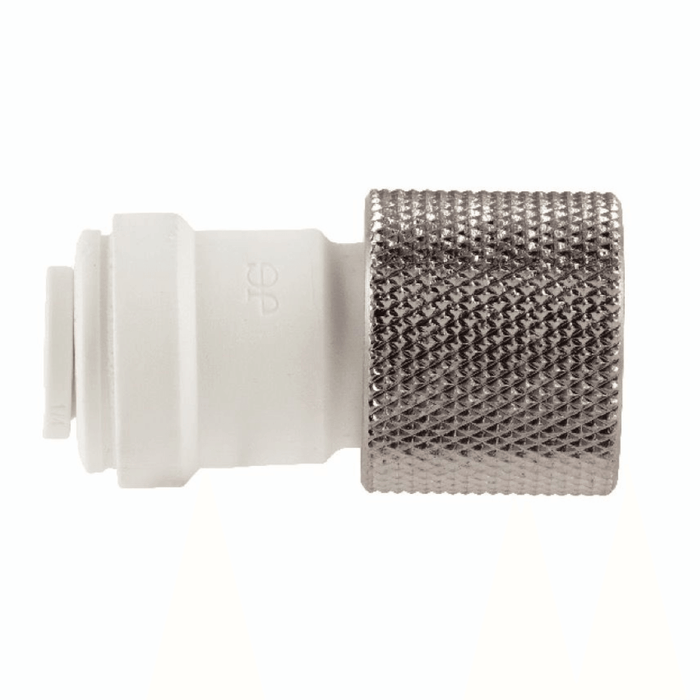

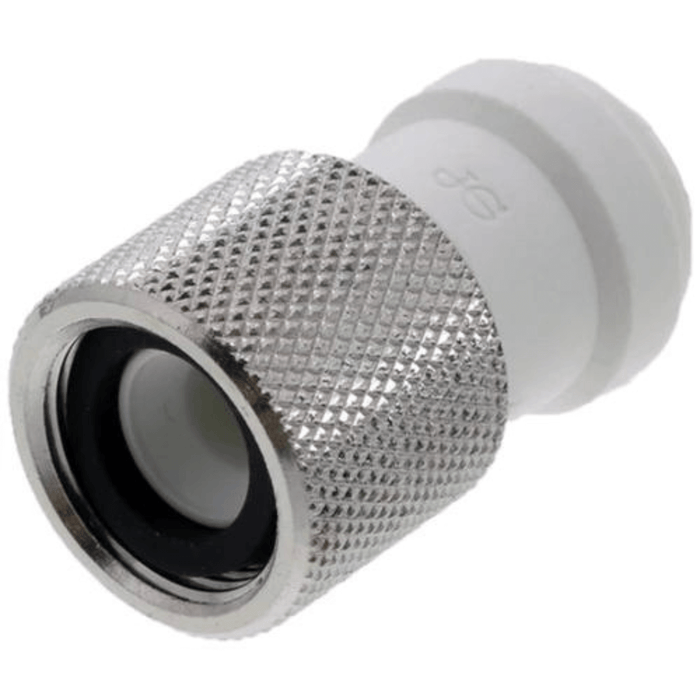

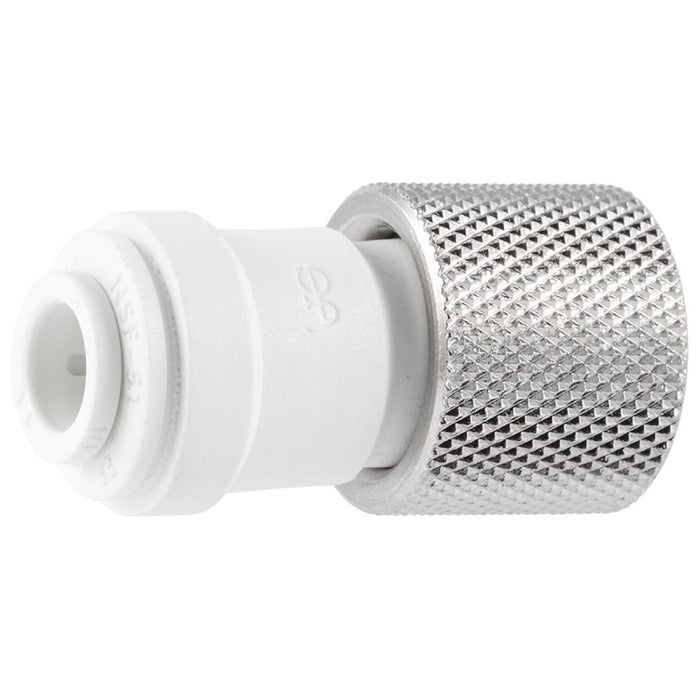

John Guest Female Adapter UNF 1/4 Tube x 3/8" Compression PP6008U9W - SINGLE
The John Guest female adapter connects 9/16-24 UNEF (3/8 compression) male threads. Manufactured in polypropylene with food-grade EPDM O-ring, these fittings were developed for the filtered pure water market.
- John Guest Female Adapter 9/16–24 UNEF Thread (3/8" comp)
- Part No. PP6008U9W
- Polypropylene construction
- EPDM O-rings
- FDA approved materials
- NSF Certified 51 & 61
- Suitable for water and food
- Rated to 150 psi at 70°F and 60 psi at 140°F
- Include one (1) fitting
| Product Details | |
|---|---|
|
Application |
Water Food Beverage |
|
Body Material |
Polypropylene |
|
Inlet/Outlet Connection |
9/16-24 UNF |
|
Max Pressure (Psi) |
230 |
|
Max Temp (°F) |
150 |
|
Min Pressure (Psi) |
Vacuum |
|
Min Temp (°F) |
-4 |
|
Push-In Size |
1/4" OD |
|
Seal Material |
EPDM |
|
Series |
PP |
|
Size |
9/16-24 |
|
Color / Finish |
White |
|
Connection Type |
UNF |
|
Origin |
UK |
|
Sub-Type |
Female Adapter |
|
Type |
Adapter |
| Warranty & Certifications | |
|
Certifications |
NSF 61, NSF 51, FDA Approved, NSF 372 |
