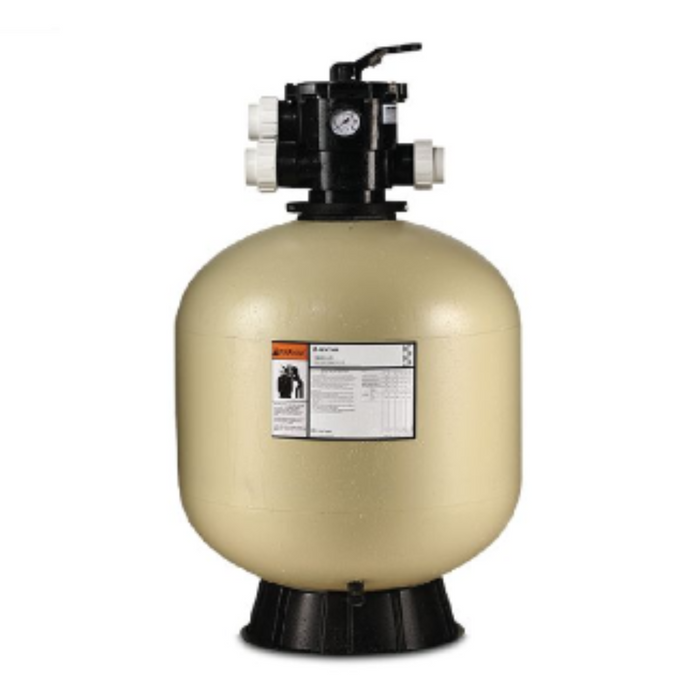

Pentair Tagelus Top Mount Sand Filter + Multiport Valve
TradeGrade
FIBERGLASS TANK WITH MULTIPORT VALVE, CLAMP STYLE
Pentair's process creates a one-piece, fiberglass-reinforced tank with superior strength and durability. Tagelus Top Mount Filters are equipped with a six-position, top-mounted multiport valve.
- Special lateral design provides superior flow characteristics and long filter cycles for economical operation
- Maximum Operating Pressure 50 psi
- Combination water and sand drain makes servicing and winterizing fast and easy
- 40, 50, and 60D models standard with plastic clamp
Note: Operating Limits - maximum continual operating pressure of 50 psi. Maximum operating water temperature (internal filter) 104°F (40°C).
- 144126 - TA40D - 19" - 1.8 Sq. Ft. - 40 GPM - 1.5" MPV
- EC-145241 - TA60D - 24" - 3.1 Sq. Ft. - 60 GPM - 1.5" MPV
- EC-145240 - TA100D - 30" - 4.9 Sq. Ft. - 100 GPM - 1.5" MPV
- 145385 - TA60D 2 - 24" - 3.1 Sq. Ft. - 60 GPM - 2" MPV
SUPPORT DOCUMENTS:
- Tagelus Fiberglass Sand Filter Brochure
- Tagelus Owner's Manual
- Tagelus Filters Replacement Parts
- Tagelus Filters
- Tagelus Filter Systems
SPECIFICATIONS:
Pentair Tagelus® 144126 TA40D Top Mount Sand Filter with 2" Valve; 1.8 SqFt, 40 gpm, 19" Diameter:
- Brand: Pentair
- Application: Pool
- Commercial, Residential, or Professional: Residential
- Weight: 28.6 pounds
- Filtration Area: 1.8 square feet
- Material: Fiberglass
- Tank Diameter: 19 inch
- UPC Code: 788379666774
Pentair Tagelus® 145241 TA60D Top Mount Sand Filter with 2" Valve; 3.1 SqFt, 60 gpm, 24" Diameter:
- Brand: Pentair
- Application: Pool
- Commercial, Residential, or Professional: Residential
- Weight: 30 pounds
- Filtration Area: 3.1 square feet
- Material: Fiberglass
- Tank Diameter: 24 inch
- UPC Code: 788379667337
Pentair Tagelus® 145240 TA100D Top Mount Sand Filter with 2" Valve; 4.9 SqFt, 100 gpm, 30" Diameter:
- Brand: Pentair
- Application: Pool
- Commercial, Residential, or Professional: Residential
- Weight: 78 pounds
- Filtration Area: 4.9 square feet
- Material: Fiberglass
- Tank Diameter: 30 inch
- UPC Code: 788379667320
Pentair Tagelus® 145385 TA60D Top Mount Sand Filter with 2 Inch Valve; 3.1 SqFt, 60 gpm, 24" Diameter:
- Brand: Pentair
- Application: Pool
- Commercial, Residential, or Professional: Residential
- Weight: 41.5 pounds
- Filtration Area: 3.1 square feet
- Material: Fiberglass
- Tank Diameter: 24 inch
- UPC Code: 788379853273
*Sizing Note: The gallon capacities listings are estimates only. They will vary depending on the pump size and the turnover rate. The actual number of gallons your filter can manage depends on your pump’s flow rate and the specific needs of your pool (debris load, drains, usage, etc.). You can adjust these capacities if you plan for a different turnover time (e.g., 12-hour turnover).
Need help sizing your pool? Contact us anytime - we’re here to help!
