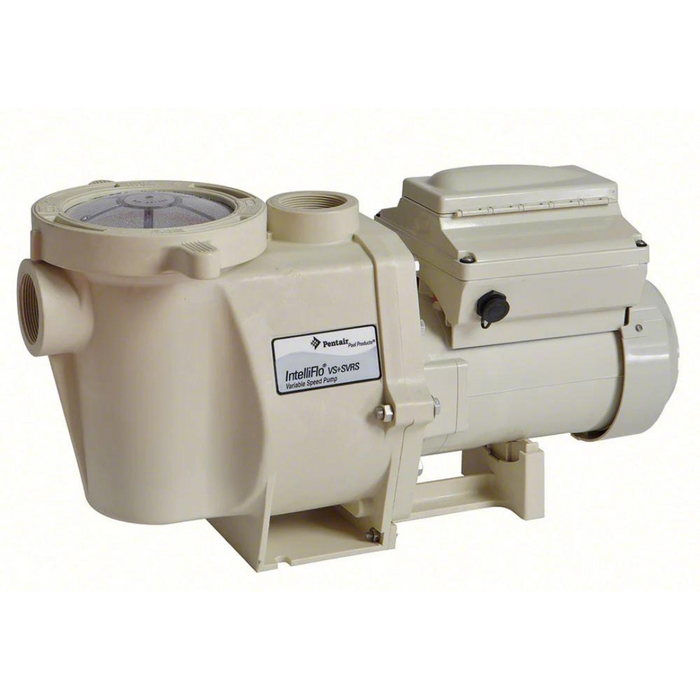

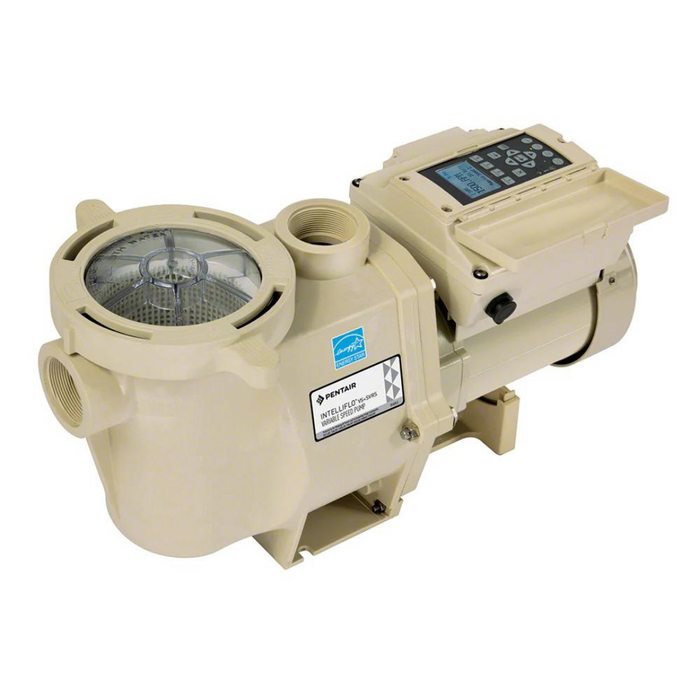

Pentair IntelliFlo VS+SVRS Variable Speed Pump 3HP EC 011057
Why shop with Vita Filters?
- Authorized Pentair Distributor
- Fast Free Shipping • No Minimum
- Backed By Manufacturer's Warranty
- 100% Satisfaction Guaranteed!
- On-Staff Water Experts • Contact us
Description:
VARIABLE SPEED POOL PUMP WITH BUILT-IN SAFETY SYSTEM
IntelliFlo pumps combine variable speed technology, onboard digital intelligence, and permanent magnet motors (used in hybrid cars) to reduce pump-related energy costs by up to 90%*. The IntelliFlo VS+SVRS pump models were the first swimming pool pumps to feature a built-in Safety Vacuum Release System that detects drain blockage and automatically shuts the pump off.
- Ability to program exact pump speeds for specific operations – filtering, heating, cleaning, spa jets, water features and more
- SVRS complies with Virginia Graeme Baker Safety Act
- Built-in diagnostics protect the IntelliFlo pump from the most common causes of premature failure – overheating, freezing, and voltage irregularities.
- Includes priming protection. No SVRS calibrations are needed. Built-in SVRS cannot be turned off.
- Safety lock-out feature (password protected) prevents pump speed settings from being changed by unauthorized personnel
- Ability to set minimum and maximum speeds so the pump will only operate within the ranges set to help assure safe operation and long life
- Compatible with Pentair Automation Systems
- Compliant with the current ASME A112.19.17 Standard for Safety Vacuum Release Systems (SVRS)
- Operates seamlessly on 50 hz or 60 hz input power. Flow/speed are constant when operating on 50hz or 60 hz.
- WEF 6.9 THP 3.95
Specifications:
- Brand: Pentair
- Amps High Speed: 16
- Application: Pool
- Weight: 53 pounds
- Frequency Rating (Hz): 50/60
- Horsepower: 3 horse-power
- Motor Speed: Variable
- Service Factor: 1.32
- Service Factor HP: 3.95
- Standards Approvals: NSF Certified, Energy Star Certified, cULus Certified
- Voltage: 230V
- Wattage: 3200 watt
- Port Size 1: 2 inch
- Port Size 1 FIT: NPT
Documents
FREE SHIPPING - Usually ships in 1-5 business days.
Disclaimer: Professional installation is required (not included). Proof of installation by a trained technician is required to validate the factory warranty.
E-commerce (EC) products: Products purchased from an Authorized Pentair Online Reseller (products with EC- in the part number) receive a one (1) year (parts only) warranty from the date of purchase. The exceptions are IntelliChlor cells and IntelliFlo SVRS pumps, which receive a two-year (2) year (parts only) warranty. EC products are not eligible for the bundled three (3) year extended warranty.
