Pentair 523623 IntelliCenter® Lite System with i5P Pool Only Personality Kit
TradeGrade
Pentair IntelliCenter® Lite 523623 System with i5P Personality Kit
- Brand: Pentair
- Application: Pool
- Weight: 40 pounds
- Circuit Board: 32 Circuits/16 Groups
- Display: Outdoor Panel/Indoor Touchscreen
- UPC Code: 788379898755
- Part No. 523623 - 5 Relay, Pool Only System, No Breaker Panel
The Pentair IntelliCenter Lite System SKUs include a power center rather than a load center with a 125AMP breaker bus. Two IntelliCenter Lite SKUs exclude a high-power wireless kit used to connect to the pool owner’s router wirelessly. With these two options, remote access can be provided with a hard-wired cat-5 Ethernet connection from the customer’s main network router directly into the back of the IntelliCenter main board. The new SKUs are used when a load center and breaker panel are not needed or a wireless connection to the pool owner’s router is not required.
IntelliCenter Lite bundles do not include water chemistry solutions currently. You can order an IntelliChlor® Salt Chlorine Generator and other water chemistry products separately.

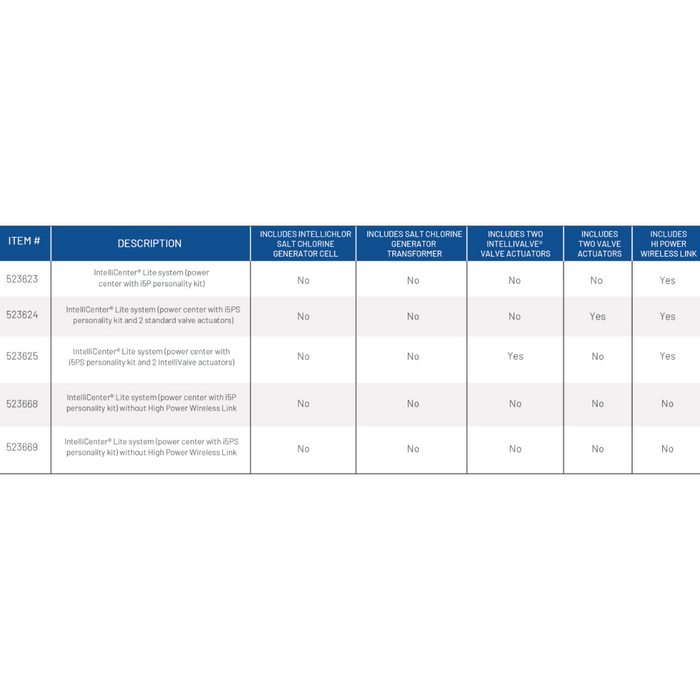

IntelliCenter Lite System Part Numbers:
- 523623 IntelliCenter® Lite System (Power Center with i5P Personality Kit)
- 523624 IntelliCenter® Lite System (Power Center with i5PS Personality Kit and two standard valve actuators)
- 523625 IntelliCenter® Lite System (Power Center with i5PS Personality Kit and two IntelliValve® Actuators)
- 523668 IntelliCenter® Lite System (Power Center power center with i5P Personality Kit) without High Power Wireless Link
- 523669 IntelliCenter® Lite System (Power Center power center with i5PS Personality Kit) without High Power Wireless Link
