by Pentair Pool
Pentair 1.5 HP Pump Motor Square Flange, 1-Speed 1-Phase, 208-230V 60 Hz (355024S)
SKU 355024S
Original price
$449.99
-
Original price
$449.99
Original price
$449.99
$449.99
-
$449.99
Current price
$449.99

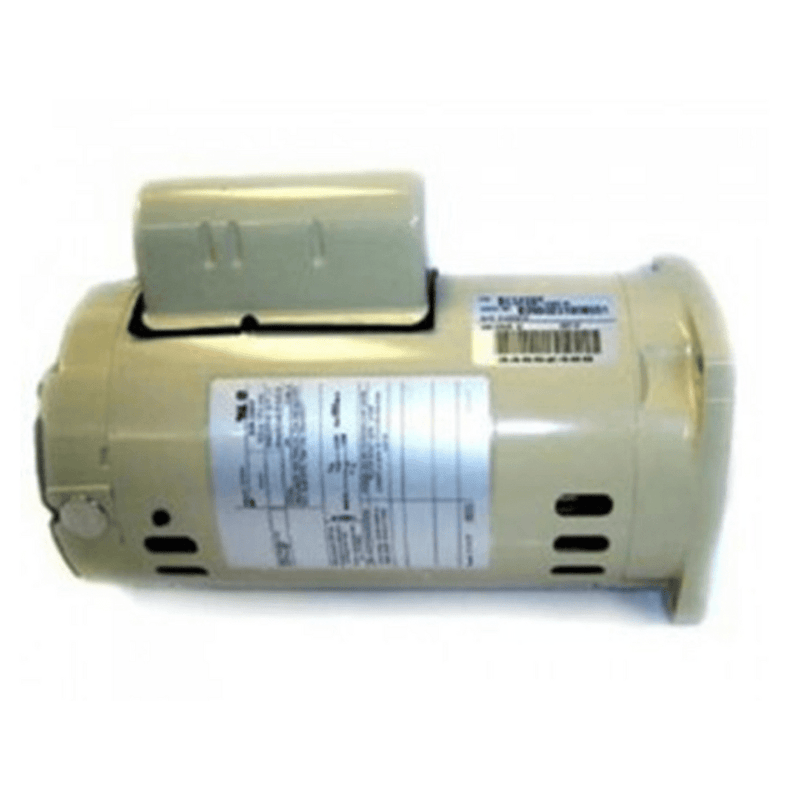

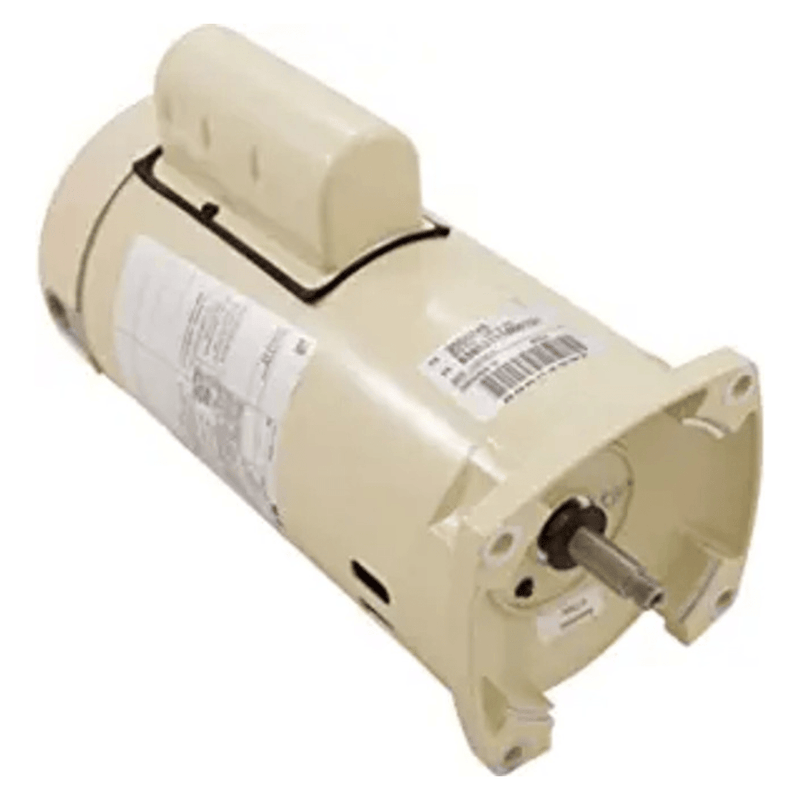

The Pentair 355024S is a WF-6/28 1 Speed Almond 56Y Square Flange Motor. It runs at 1.5HP and 115-230V. Square Flange Pump Motors are the most common motor frame used today. These frames attach directly to the pump.
Used On:
- Whisperflo Pumps 1-1/2 HP, WF-6, WF-28
- Superflo Pumps 2 HP Motor SQFL, 1 Speed, 1 phase, 6115/208-230, 60 Hz
- Pinnacle High Flow Pumps 2A std. sq. flange, 230v only
Specifications:
- Brand: Pentair
- Application: Inground, Pool
- Shipping Dimensions: 22.5 x 11.5 x 9 inch
- Color: Tan / Almond
- Weight: 35.9 pounds
- For Use With: WhisperFlo
- Frequency Rating (Hz): 60
- Horsepower: 1.5 horsepower
- Motor Speed: 1-Speed
- Phase: Single
- Voltage: 115V, 208V, 230V
- Flange Type: Square
- UPC Code: 788379803292
Free Shipping: Orders ship within 1–2 business days unless otherwise noted. Please refer to our shipping policy for full details.
Warranty Information & Support: Visit our warranty page or refer to the specific product user manual.
Disclaimer: Professional installation (not included) is required for warranty validation.
Please Note: Images are for representation.
