by Pentair Pool

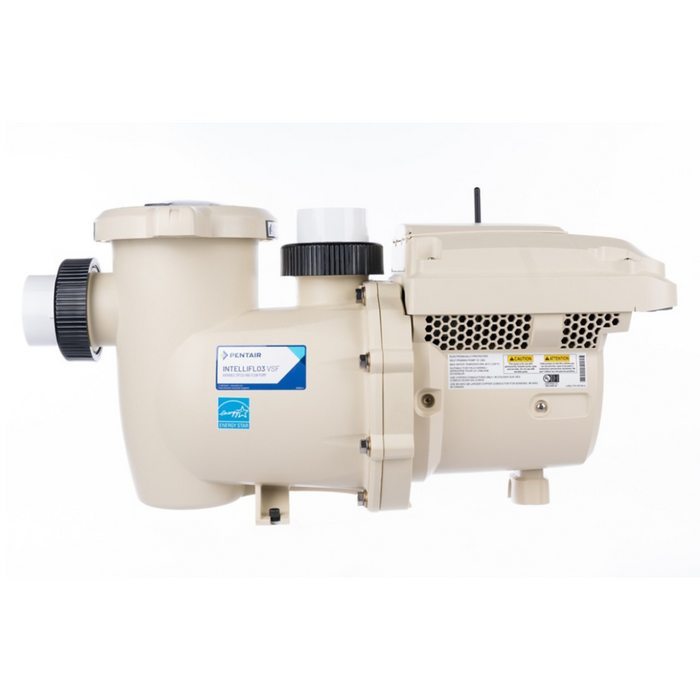

Pentair 3HP IntelliFlo3 VSF Variable Speed Pump + Touchscreen 011077
SKU 011077
TradeGrade
ENERGY SAVINGS AND SUPERIOR PERFORMANCE, ALL IN A GAME-CHANGING PUMP.
The IntelliFlo3 Variable Speed and Flow Pool Pump set a new bar for performance with built-in sensorless flow control for effortless optimum flow and aids in keeping the pool crystal clear and inviting, no matter what it requires.
- Proprietary flow technology maintains the pool’s optimum flow.
- Up to 90%* energy savings. Slower speed and regulated flow save energy.
- New motor, drive, and hydraulics. Department of Energy (DOE) compliant.
- Easy control via the Pentair Home app or optional touchscreen.
- WEF 7.1 THP 3.0

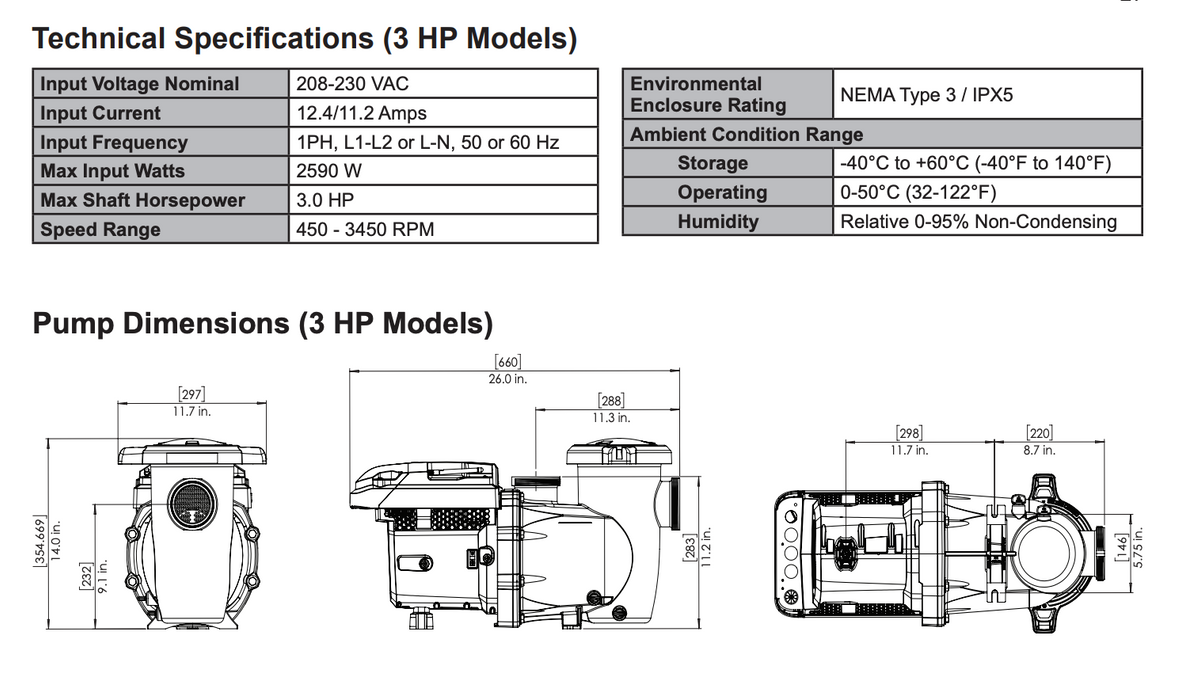

Pentair 011077 IntelliFlo3 VSF 3.0HP w/ Touchscreen Specifications:
- Brand Pentair
- Application Pool
- Shipping Dimensions 30 x 15 x 19 inch
- Commercial, Residential, or Professional Residential
- Weight 55 pounds
- Flow Rate Max 140 gal/min
- Flow Rate Min 20 gal/min
- Max Working Pressure 30 pounds per square inch
- Port Size 1 2 inch
- Thrust HP 3
- Weighted Energy Factor (WEF) 7.1
- UPC Code 788379888329
MODELS:
- 011075 IntelliFlo3® VSF Pump: Perfect for users who want a high-quality pump with built-in Wi-Fi connectivity.
- 011076 IntelliFlo3® VSF Pump + I/O Relay Board: Ideal for users who need to control additional devices like lights, salt cells, and other on/off equipment directly from the pump.
- 011077 IntelliFlo3® VSF Pump + Touchscreen: Best for users who prefer to program pump settings directly on the pump using a touchscreen, either as a standalone option or in addition to Wi-Fi control.
- 011078 IntelliFlo3® VSF Pump + I/O Relay Board and Touchscreen: Best for users who want access to all features.
