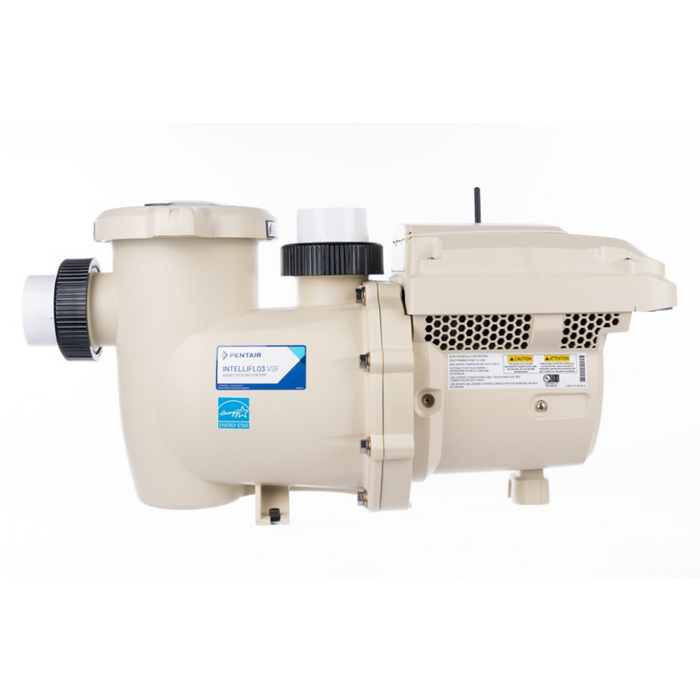

Pentair IntelliFlo3 VSF Variable Speed and Flow Pump 011075 3.0 HP

SKU 011075

Trade Grade Item

Click here to have a sales associate contact you with similar items or local pickup options. →

Description:

*Variable Speed Pump of the Year designated by the Pool Nation Awards! In stock, ready to ship*

ENERGY SAVINGS AND SUPERIOR PERFORMANCE, ALL IN A GAME-CHANGING PUMP.

The IntelliFlo3 Variable Speed and Flow Pool Pump set a new bar for performance with built-in sensorless flow control for effortless optimum flow and aids in keeping the pool crystal clear and inviting, no matter what it requires.

  • Proprietary flow technology maintains the pool’s optimum flow.
  • Up to 90%* energy savings. Slower speed and regulated flow save energy.
  • New motor, drive, and hydraulics. Department of Energy (DOE) compliant.
  • Easy control via the Pentair Home app or optional touchscreen.
  • WEF 7.1 THP 3.0

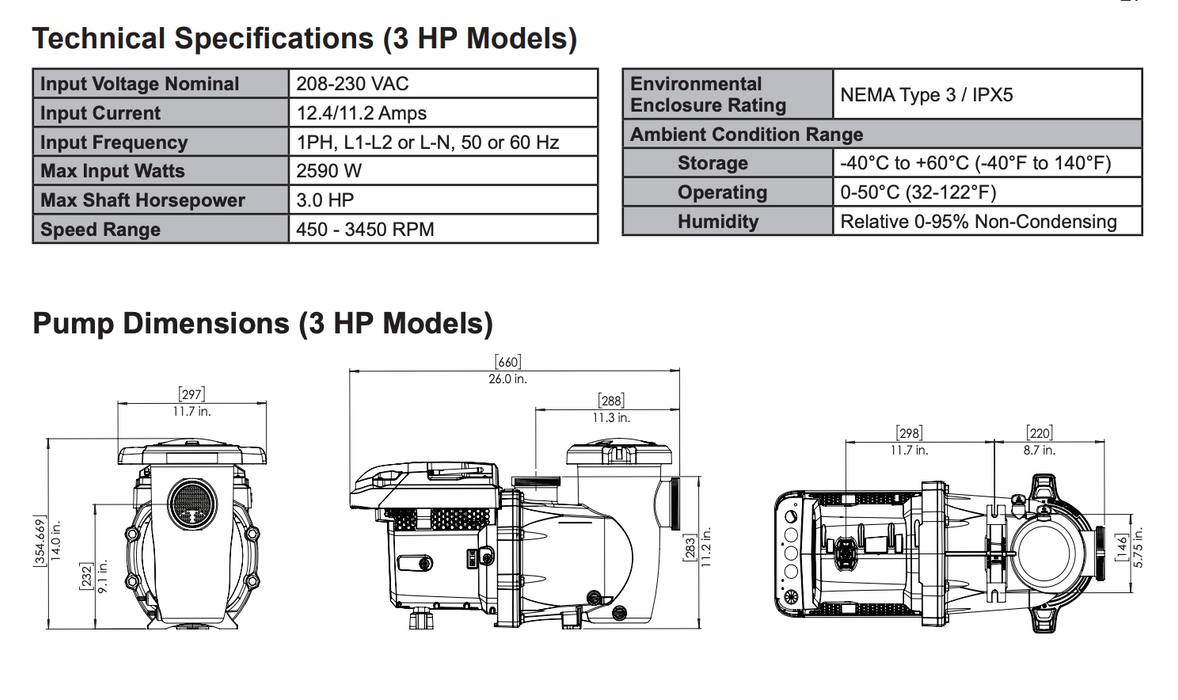

Pentair 011075 IntelliFlo3 VSF 3.0HP Specifications:

  • Brand: Pentair
  • Application: Pool
  • Weight: 53.5 pounds
  • Flow Rate Max: 140 gal/min
  • Flow Rate Min: 20 gal/min
  • Frequency Rating (Hz): 50/60
  • Max Working Pressure: 30 pounds per square inch
  • Motor Speed: Variable
  • Thrust HP: 3
  • Voltage: 208V, 230V
  • Cord Type: NEMA
  • Weighted Energy Factor (WEF): 7.1
  • UPC Code: 788379886127
  • Part Number: 011075 IntelliFlo3 VSF 3.0HP

Support Documents:

Available Models:

ITEM # DESCRIPTION THP WEF MAX INPUT VOLTAGE FREQUENCY FULL LOAD AMPS PORT SIZE (NPT) WEIGHT (LBS)
011075 IntelliFlo3 VSF 3.0HP 3 7.1 208-230 50/60 12.4-11.2 2" x 2" or 2.5" x 2.5" or 3" x 3" 55
011076 IntelliFlo3 VSF 3.0HP with I/O board 3 7.1 208-230 50/60 12.4-11.2 2" x 2" or 2.5" x 2.5" or 3" x 3" 55
011077 IntelliFlo3 VSF 3.0HP with touchscreen 3 7.1 208-230 50/60 12.4-11.2 2" x 2" or 2.5" x 2.5" or 3" x 3" 55
011078 IntelliFlo3 VSF 3.0HP with touchscreen and I/O board 3 7.1 208-230 50/60 12.4-11.2 2" x 2" or 2.5" x 2.5" or 3" x 3" 55
011065 IntelliFlo3 VSF 1.5HP 1.5 9.4 115/208-230 50/60 12/6.4-5.9 1.5" x 1.5" or 2" x 2" 48
011066 IntelliFlo3 VSF 1.5HP with I/O board 1.5 9.4 115/208-230 50/60 12/6.4-5.9 1.5" x 1.5" or 2" x 2" 48
011067 IntelliFlo3 VSF 1.5HP with touchscreen 1.5 9.4 115/208-230 50/60 12/6.4-5.9 1.5" x 1.5" or 2" x 2" 48
011068 IntelliFlo3 VSF 1.5HP with touchscreen and I/O board 1.5 9.4 115/208-230 50/60 12/6.4-5.9 1.5" x 1.5" or 2" x 2" 48
356159Z IntelliFlo3 VSF Touchscreen Universal Add On 3 & 1.5
356365Z IntelliFlo3 VSF optional universal relay board kit 3 & 1.5

Why shop with Vita Filters?

  • Authorized Pentair Dealer
  • Free Shipping • No Minimum
  • Backed By Manufacturer's Warranty
  • 100% Satisfaction Guaranteed!
  • On-Staff Water Experts • Contact us

Disclaimer: Professional installation is required (not included). Proof of installation by a professional technician is required to validate the factory warranty.

Images are for representation.

Pentair Warranty Support
