by John Guest

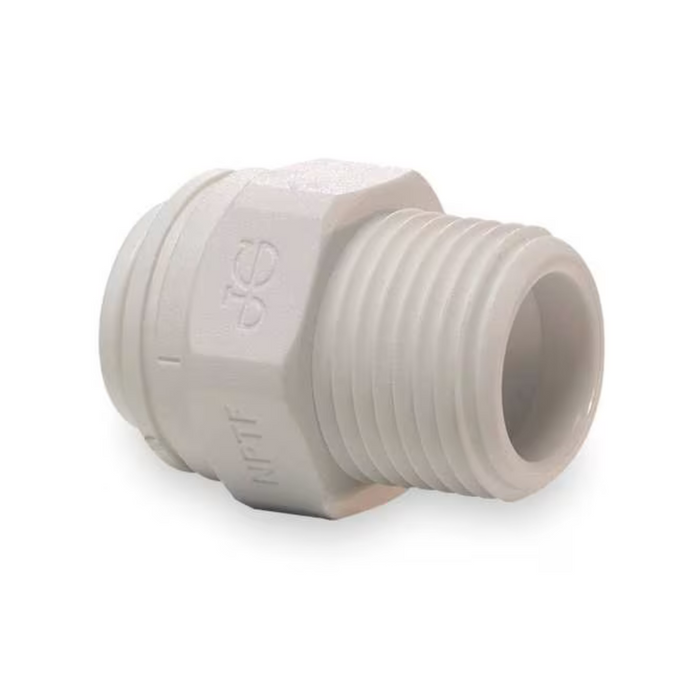

John Guest PP011222W Threaded Male Adapter, 3/8 in Tube - SINGLE

Name: John Guest PP011222W Threaded Male Adapter, 3/8 in Tube - SINGLE
Brand: John Guest
SKU: PP011222W-US
Price: 19.99 USD
Availability: InStock

SKU PP011222W-US

$19.99 - $19.99

$19.99

$19.99 - $19.99

$19.99

Quantity

Dimensions

Tube Size	3/8 in
Pipe Size - Pipe Fitting	1/4 in
Pipe Size (Fittings)	1/4"
Pipe Size	1/4 in
Fitting Thread Size	1/4-18
Fitting Side A Tube Outer Diameter	3/8 in
Fitting Side B Pipe Size	1/4 in
For Tube Outside Diameter	3/8 in
Fitting Pipe Size	1/4 in

Details

Item	Male Adapter
Tube Fitting Material	Polypropylene
Specific Fitting Shape	Straight Adapter
Fitting Connection Type	Tube x MNPT
Max. Pressure	150 psi
Specific Pipe Fitting Shape	Adapter
Standards	NSF/ANSI 51, NSF/ANSI 61
Pipe Fitting Connection Type	Tube x MNPT
Color	White
Basic Pipe Fitting Shape	Adapter
Temp. Range	9 Degrees to 150 Degrees F
Basic Pipe Fitting Material	Plastic
Connection Type	Push-to-Connect x MNPTF
Application	Food Processing, Potable Water
System of Measurement	Imperial
Fitting Side A Connection Type	Push-to-Connect
Compatible Tube Material	Nylon, Polyethylene, Polyurethane
Maximum Operating Temperature	150 Degrees F
Fitting Side B Connection Type	MNPTF
Fitting Material	Polypropylene
Maximum Operating Pressure	150 psi
Includes Pre-Applied Thread Sealant	No
Minimum Operating Temperature	33 Degrees F
Fitting Body Material	Polypropylene
For Tube OD	3/8 in
End Connection Type	Push-to-Connect, Threaded
Fitting Shape	Adapter
