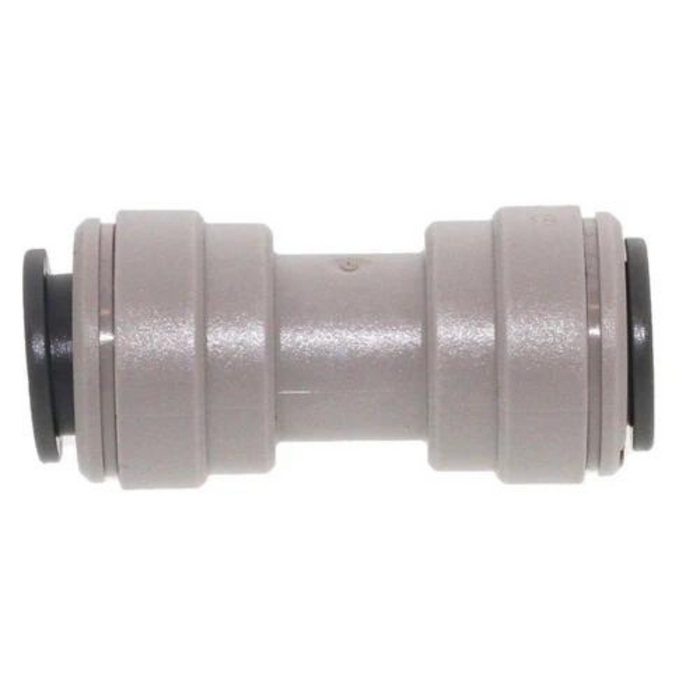

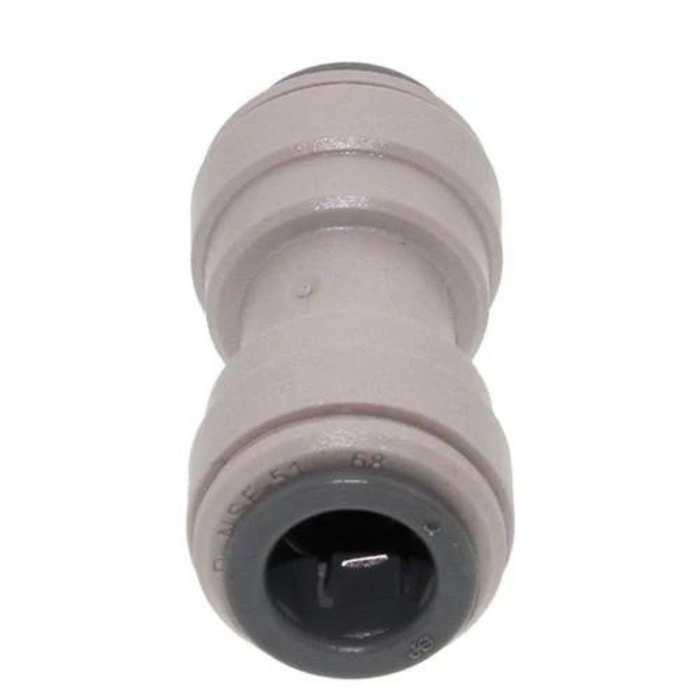

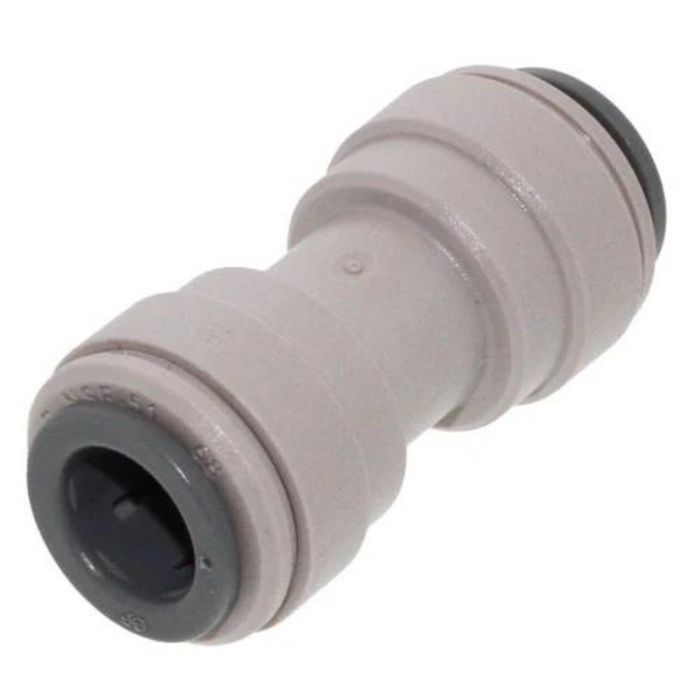

John Guest PI0408S Straight Union Connector 1/4" - SINGLE
The John Guest Union connector makes connecting OD tubing sizes quick and easy. Manufactured in gray acetal with food-grade nitrile O-ring, these fittings are suitable for foodstuff and potable liquids. They are also suitable for air and inert gases and therefore can be used for CO2 and nitrogen beverage gas lines, pneumatics, vacuum as well as other applications.
- Push-fit Technology creates reliable, leak-free connections
- Used to connect OD tubing sizes
- Compatible with plastic or copper OD-sized tubing
- Connect, disconnect, and reconnect in seconds without tools
- Food Quality and suitable for potable liquids and pure water applications
- Can be used for air/pneumatic & vacuum applications
- Acetal body with Nitrile O-Ring
- Made with lead-free materials
- Includes one (1) connector
Working pressure and temperature:
- Max. 230 psi at 68° F
- Max. 150 psi at 150° F
JG gray acetal is suitable for both compressed air and water.
| Product Details | |
|---|---|
|
Application |
Water Air Food Beverage |
|
Body Material |
Acetal Copolymer |
|
Color / Finish |
Gray |
|
Max Pressure (Psi) |
230 |
|
Max Temp (°F) |
150 |
|
Min Pressure (Psi) |
Vacuum |
|
Min Temp (°F) |
-4 |
|
Mounting Options |
Free Floating |
|
Origin |
UK |
|
Push-In Size |
1/4" OD |
|
Seal Material |
Buna-N |
|
Series |
PI |
|
Shape |
Straight |
|
Sub-Type |
Union Coupling |
|
Type |
Coupling |
| Warranty & Certifications | |
|
Certifications |
NSF 51, NSF 61, FDA Approved Materials, Lead Free |
