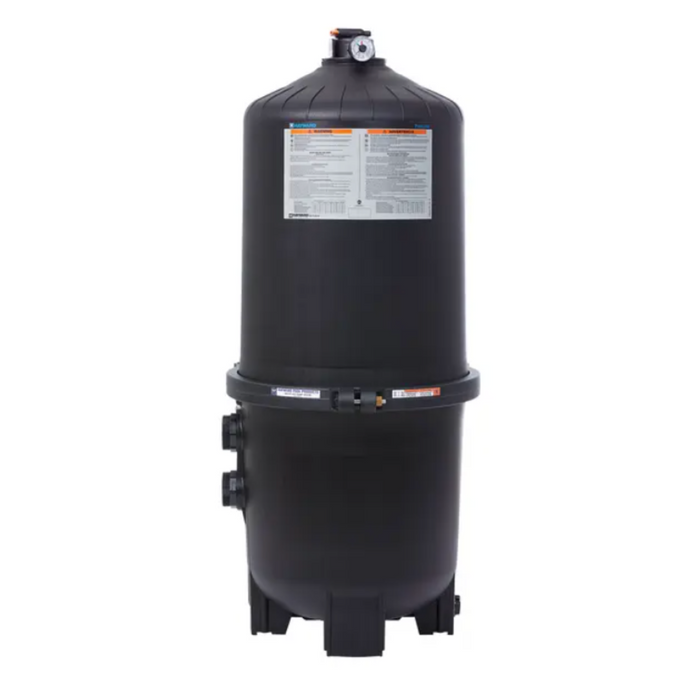

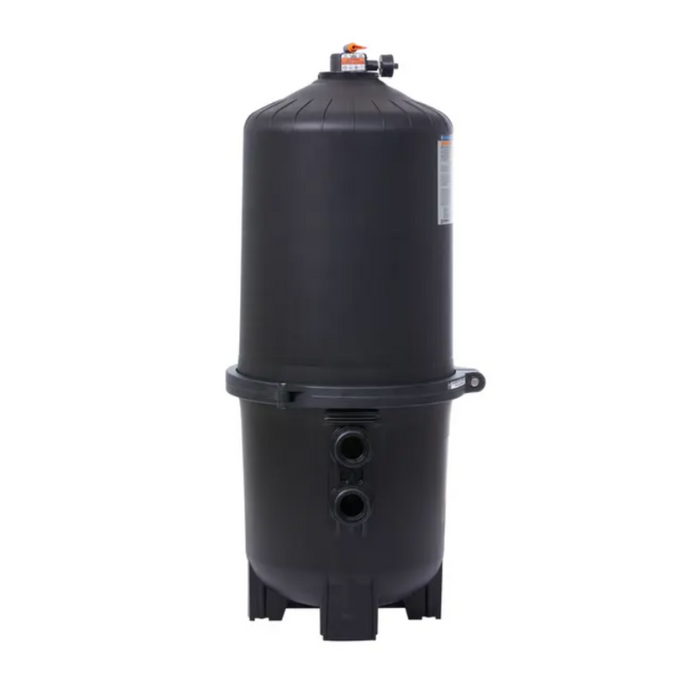

Hayward W3DE4820 ProGrid Vertical Grid D.E. Filter 48 Sq Ft

SKU W3DE4820
Original price $1,359.00 - Original price $1,359.00
Original price
$1,359.00
$1,359.00 - $1,359.00
Current price $1,359.00

Why shop with Vita Filters

  • Authorized Hayward Dealer
  • Free Shipping • No Minimum
  • 30-Day Returns
  • Backed By Manufacturer's Warranty
  • 100% Satisfaction Guaranteed!
  • On-Staff Experts • Contact us

Description:

ProGrid vertical grid D.E. filters provide superior water clarity, efficient flow and large cleaning capacity for pools and spas of all types and sizes. ProGrid combines high-tech features and a ”service-ease” design for unparalleled filtration.

  • Filter tanks are made from the most durable materials to meet the demands of the toughest applications and environmental conditions
  • High capacity, rapid release manual air relief valve bleeds air with a quick quarter turn of the lever
  • Heavy-duty, tamper-proof, one-piece flange clamp securely fastens tank top and bottom and allows quick access to all internal components
  • Please Note: Valve is sold separately

Specifications:

  • Brand Hayward
  • Cartridge No
  • Design Flow Rate 120
  • Effective Filtration Area 48 SQFT
  • Filter Type DE
  • UPC/GTIN 610377387880
  • Parts Warranty 3-year
  • Pool Type In Ground
  • Pressure Gauge No
  • Product Dimensions 40.5 " x 24 " x 24 "
  • Product Height 40.5 in
  • Product Length 24 in
  • Product Weight 74 lb
  • Product Width 24 in
  • Public Design Flow Rate 96
  • Residential Design Flow Rate 120
  • Series Filters ProGrid
  • Shipping Dimensions 41.8 " x 24.6 " x 23.1 "
  • Shipping Height 41.8 in
  • Shipping Length 23.1 in
  • Shipping Weight 75 lb
  • Shipping Width 24.6 in

Support Documents:

The Hayward W3DE4820 Pro-Grid 48 sq. ft. D.E. Pool Filter provides the highest level of filtration. The Hayward Pro-Grid is capable of filtering out particulate as small as 5 microns. That's the same size as a human red blood cell.

The Hayward Pro-Grid W3DE4820 uses a set of grids coated in pool-grade diatomaceous earth. The set of grids consists of 7 full grids 24" in length and 1 partial grid 24" in length. The Pro-Grid tank is made with glass-reinforced thermoplastic that enhances durability and product life. It uses a manual air relief valve that eliminates air buildup in the tank rather than having it force back through the system.

A 1-1/2" drain is used for quick drainage, and a one-piece flange clamp rests securely around the tank, securely fastening each half tightly together. To remove the W3DE4820 requires a minimum of 58.1" vertical clearance. Before removing the top lid, it is suggested to backwash the filter to discharge the contaminated DE powder.

Common Questions

What are the dimensions of the tank?

  • Tank Dimensions: (DxH) 24" x 40-1/2"
  • Weight: 75 lbs

How much DE do I add?

  • The W3DE4820 Pro-Grid uses 6 lbs of DE.

What is the max GPM flow rate?

  • The max GPM flow rate is 96 GPM.

What does Hayward W3DE4820 come with?

  • The Hayward W3DE4820 comes with a tank, one-piece flange clamp, air relief valve, and threaded bulkheads.

Does the Hayward Pro-Grid come with a backwash valve?

  • No. The W3DE4820 does not come with a backwash valve. For a multi-port valve option, we suggest item number SP0715XR50 for 2" plumbing and SP0710XR50 for 1.5" installations. For a side-mount push-pull valve, we suggest item number SP0410X502S.

What is the warranty for the Hayward W3DE4820?

  • Three (3) Year Limited Warranty on Product, see Owner's Manual for a full description of warranty claims and coverage details.

FREE SHIPPING - Usually ships in 1-5 business days.

Hayward Warranty Support

Disclaimer: Professional installation is required (not included). Proof of installation by an industry technician is required to validate the factory warranty.
