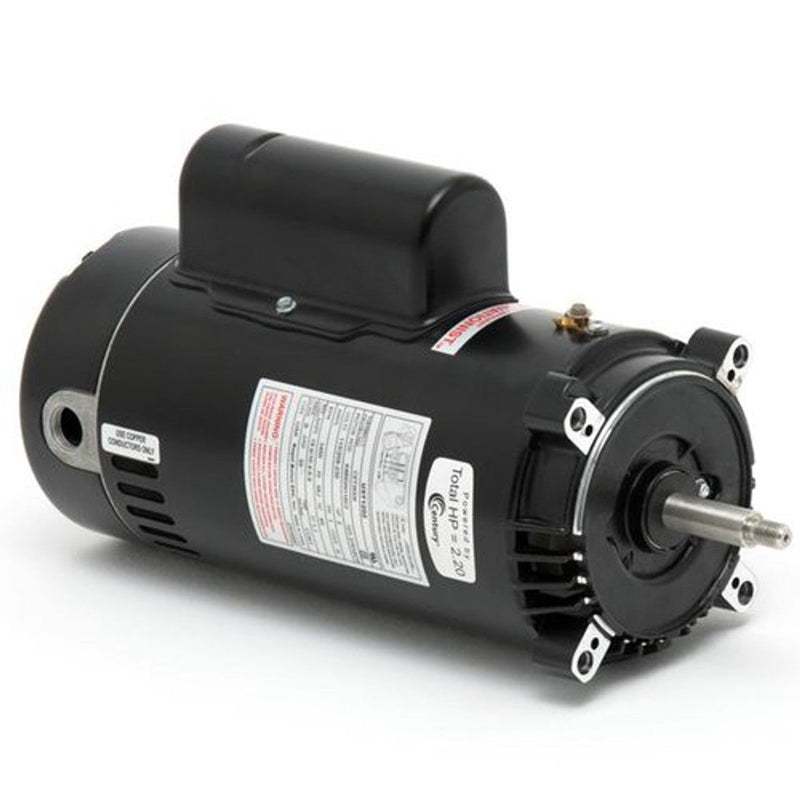

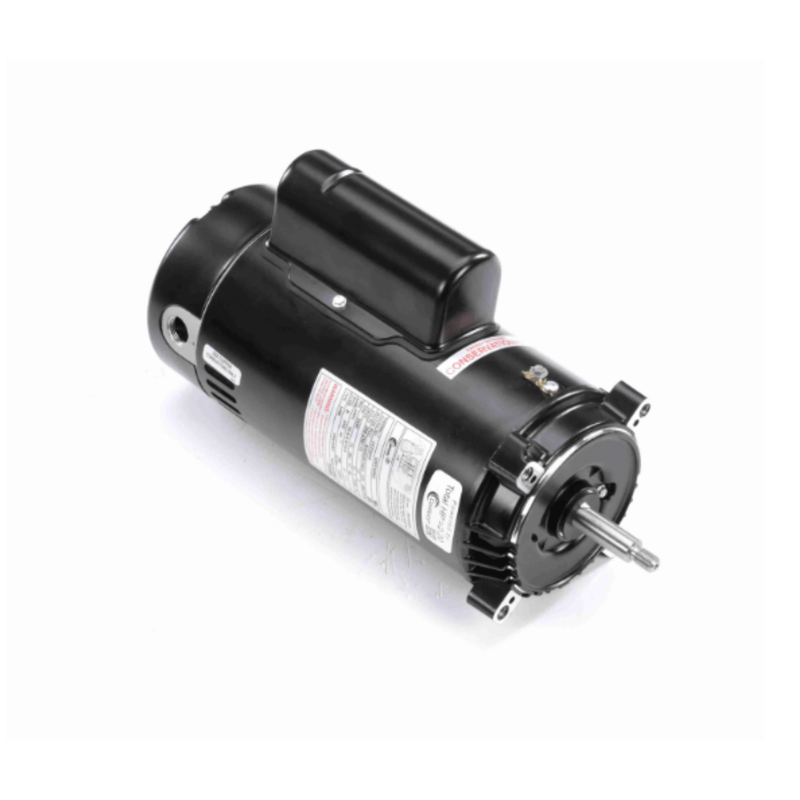

Century 56J C-Face 2 HP 1-Speed Up Rated Motor 19.6/10.4-9.8A 115/208-230V UST1202

• Sealed Switch Design
• UL 1081 Design
• 50°C Ambient
• 304 Bearing Shaft End
• 303 Stainless Steel Shaft
• Threaded Shaft
• Capacitor Start-Capacitor Run
• Restricted product: Cannot ship to California

Used On:

• Hayward Super Pump SP1600X Pump Parts
• Jacuzzi L Series Pump Parts
• Jacuzzi P, PC, EP Pump Parts
• Jacuzzi PH and UPH Pump Parts
• Jacuzzi RC Pump Parts
• Jacuzzi Ring-Lok Pump Parts
• Jandy HHP/HHPU Pump Parts
• Speck E90 Pump Parts
• Speck ES90 Pump Parts
• Speck S90 Pump Parts
• Jacuzzi Ring-Lok R, P, PC & UP Pump Parts

Specifications:

• Brand: Century
• Ambient Temperature: 50 degrees Celsius
• Shipping Dimensions: 19.5 x 10.75 x 9.25 inch
• Amps High Speed: 19.6
• Amps Low Speed: 9.8
• Application: Pool
• Bearing Type: Sealed Ball
• Color: Black
• Duty Cycle: Continuous
• Weight: 31 pound
• Efficiency Group: High
• Frequency Rating (Hz): 60
• Horsepower: 2 horse power
• Insulation Class: B
• Motor Enclosure Type: Open Drip Proof
• Motor Frame Size: 56J
• Motor Shaft Rotation: Counterclockwise Pulley End
• Motor Speed: 1-Speed
• Motor Thermal Protection: Automatic Reset
• Phase: Single
• RPMs Max: 3450
• RPMs Min: 3450
• Service Factor: 1.1
• Shaft Design: Threaded
• Shaft Diameter: 0.625 inch
• Shaft Length: 2.5625 inch
• Shaft Material: 303 Stainless Steel
• Standards Approvals: CSA Certified
• Voltage: 115V, 208V, 230V
• Commercial, Residential, or Professional: Residential
• Diameter: 6.5 inch
• Flange Material: Aluminum
• Frame Material: Rolled Steel
• Green or Energy Efficient Product: True
• Motor Capacitor Type: Start, Run
• Motor Rating: Up-Rated
• Thrust HP: 2.2
• UPC Code: 786674033352

*Please Note: Unable to sell or install this product in New York or California.
