by Century

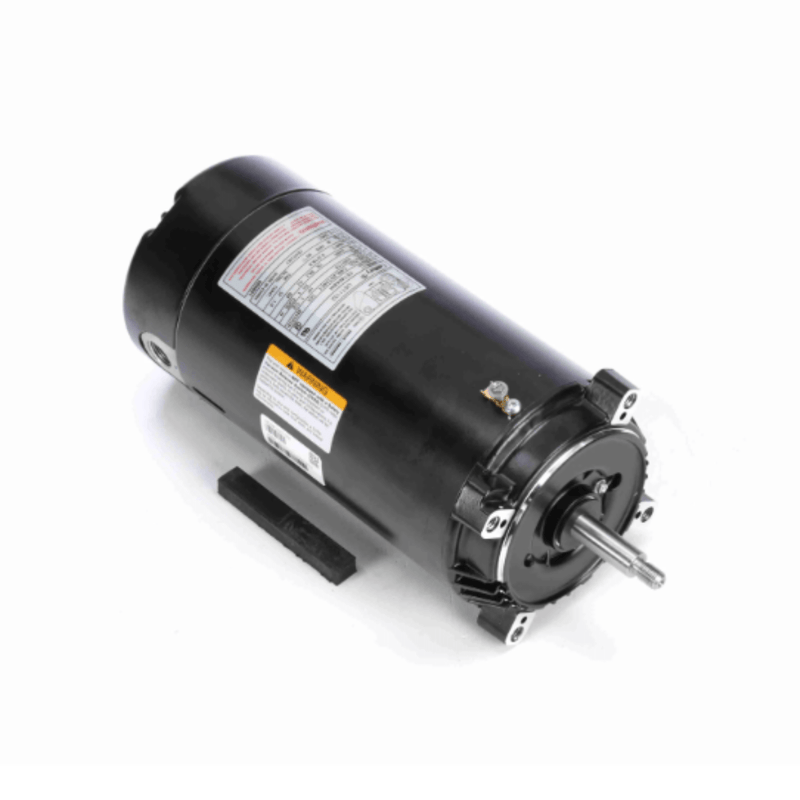

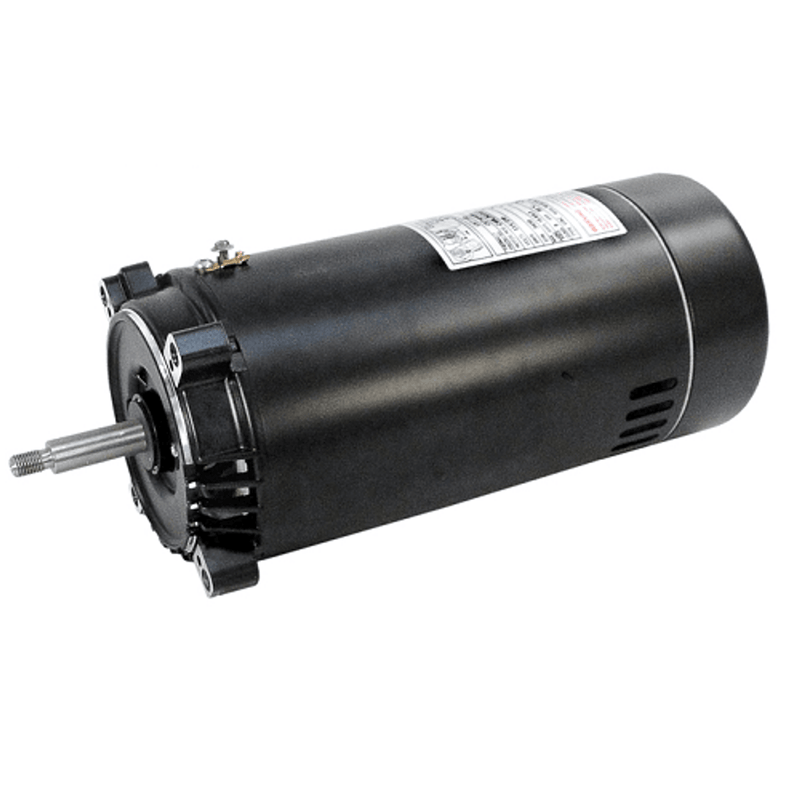

Century 1.5 HP 56J C-Face Single Speed Up Rated Motor 18.6/9.3A 115/230V UST1152
SKU UST1152
Original price
$299.99
-
Original price
$299.99
Original price
$299.99
$299.99
-
$299.99
Current price
$299.99
This ODP Threaded Pool Filter Motor 1.5HP 115/230V is a replacement part that can be relied upon when it matters the most. This motor is made from high-quality parts and materials for long-term performance.
- Sealed Switch Design
- UL 1081 Design
- 50°C Ambient
- 304 Bearing Shaft End
- 303 Stainless Steel Shaft
- Threaded Shaft
- Capacitor Start-Capacitor Run
- Ops Man
- Tech Info
Used On:
- Hayward Max-Flo SP1800X
- Hayward Super Pump SP1600X
- Jacuzzi L Series
- Jacuzzi PH and UPH
- Jacuzzi RC
- Jacuzzi Ring-Lok
- Jandy HHP/HHPU
- Speck E90
- Speck ES90
- Speck S90
Specifications:
| Ambient Temperature | 50 deg C |
| Bearing Type | Sealed Ball |
| Brand | Regal Beloit |
| Diameter | 6-1/2 Inch |
| Duty Cycle | Continuous |
| Efficiency Group | Standard |
| Enclosure Design | Open Dripproof |
| Finish Color | Satin Black |
| Flange Material | Aluminum |
| Frame | 56J |
| Frequency Rating | 60 Hz |
| Full Load Amps | 18.6/9.3 A |
| HP | 1.5 |
| Insulation Class | B |
| Item | Two-Compartment Pool Filter Motor |
| Motor Design | Capacitor Start |
| Motor Shaft Rotation | CCWPE |
| Motor Thermal Protection | Auto |
| Mounting Type | C-Face |
| Number of Speed | 1-Speed |
| Overall Length | 12.13 Inch |
| Phase | 1-Phase |
| RPM | 3450 |
| Service Factor | 1.00 |
| Shaft Design | Threaded |
| Shaft Diameter | 5/8 Inch |
| Shaft Length | 2-9/16 Inch |
| Shaft Material | 303 Stainless Steel |
| Standards Approvals | UL 1081 Approved, UL Recognized (E46412), CSA Certified (LR43341) |
| Sub Brand | Century® |
| Thrust Horsepower | 1.5 |
| Type | Up-Rated, UAC |
| Voltage Rating | 115/230 V |
*Please Note: Unable to sell or install this product in New York or California.
Free Shipping: Orders ship within 1–2 business days unless otherwise noted. Please refer to our shipping policy for full details.
Warranty Information & Support: Visit our warranty page or refer to the specific product user manual.
Disclaimer: Professional installation (not included) is required for warranty validation.
Please Note: Images are for representation.
