by Century

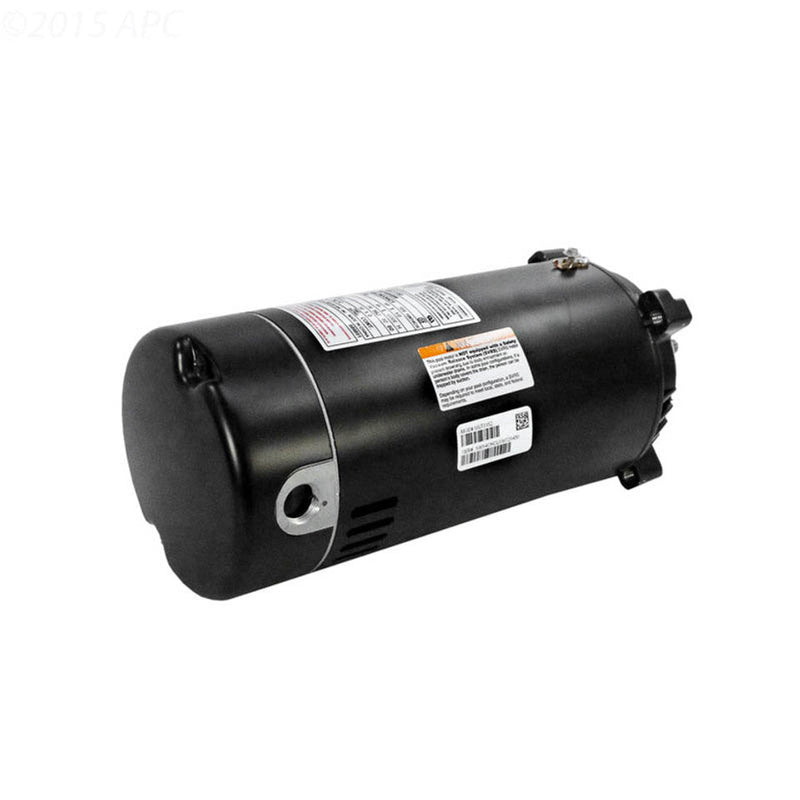

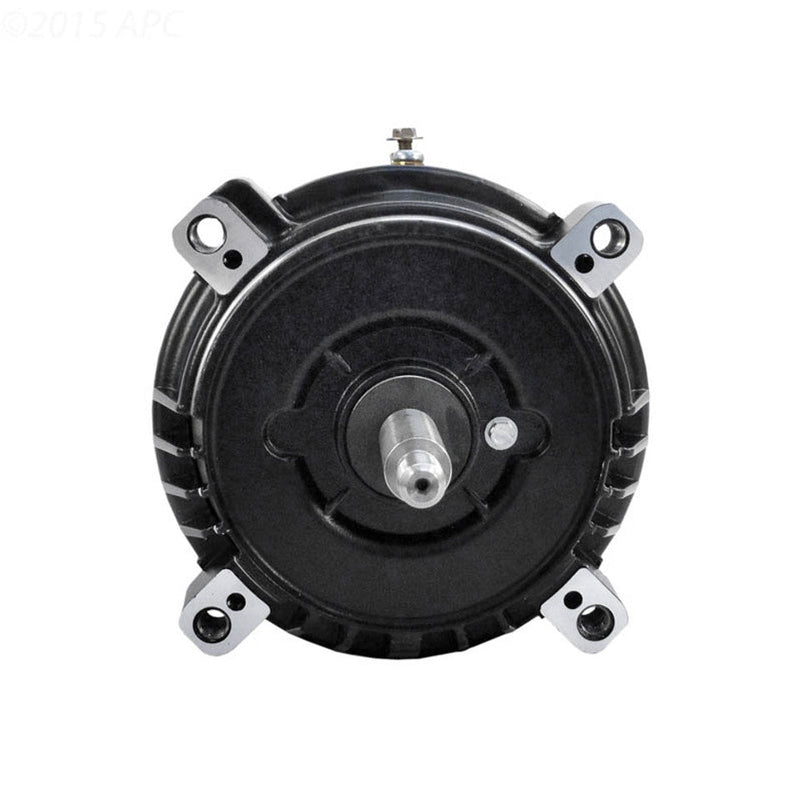

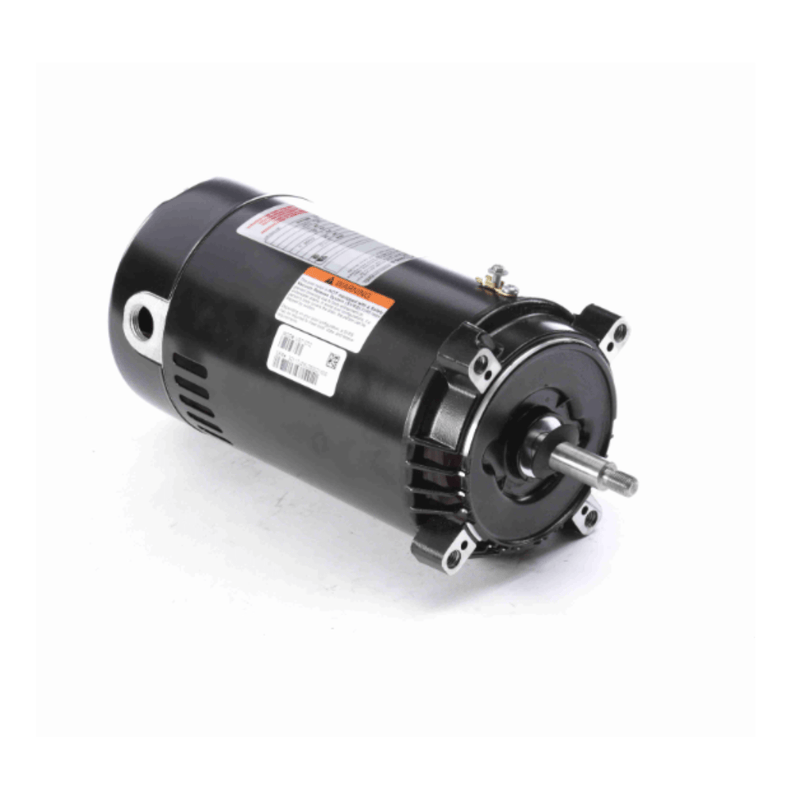

Century 3/4HP Pump Motor 1 PH 230/115V 56J UST1072
SKU UST1072
Original price
$249.99
-
Original price
$249.99
Original price
$249.99
$249.99
-
$249.99
Current price
$249.99
- Sealed Switch Design
- UL 1081 Design
- 50°C Ambient
- 304 Bearing Shaft End
- 303 Stainless Steel Shaft
- Threaded Shaft
- Capacitor Start-Capacitor Run
Specifications:
- Brand: Century
- Ambient Temperature: 50 degrees Celsius
- Shipping Dimensions: 17.25 x 9 x 9.5 inch
- Amps High Speed: 11
- Amps Low Speed: 5.5
- Application: Pool
- Bearing Type: Sealed Ball
- Color: Black
- Duty Cycle: Continuous
- Weight: 18 pound
- Efficiency Group: Standard
- Frequency Rating (Hz): 60
- Horsepower: 0.75 horsepower
- Insulation Class: B
- Motor Enclosure Type: Open Drip Proof
- Motor Frame Size: 56J
- Motor Shaft Rotation: Counterclockwise Pulley End
- Motor Speed: 1-Speed
- Motor Thermal Protection: Automatic Reset
- Phase: Single
- RPMs Max: 3450
- RPMs Min: 3450
- Service Factor: 1
- Shaft Design: Threaded
- Shaft Diameter: 0.625 inch
- Shaft Length: 2.5625 inch
- Shaft Material: 303 Stainless Steel
- Standards Approvals: CSA Certified
- Voltage: 115V, 230V
- Commercial, Residential, or Professional: Residential
- Diameter: 6.5 inch
- Flange Material: Aluminum
- Frame Material: Rolled Steel
- Motor Capacitor Type: Start
- Motor Rating: Up-Rated
- UPC Code: 786674033321
