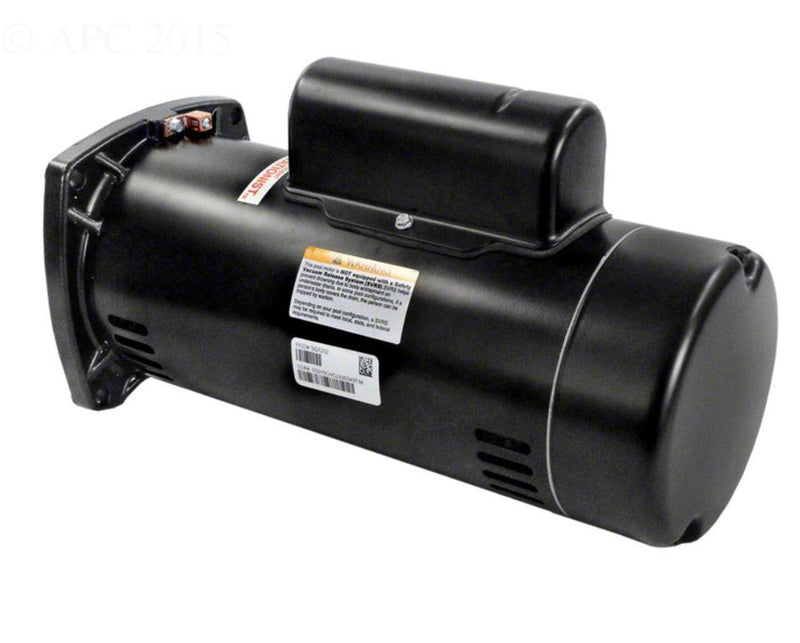

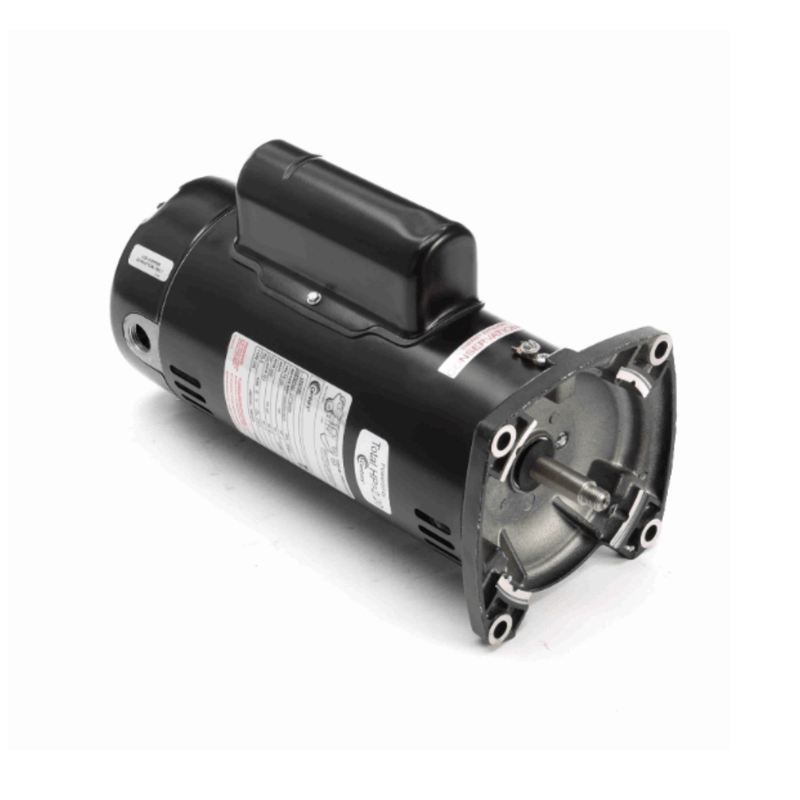

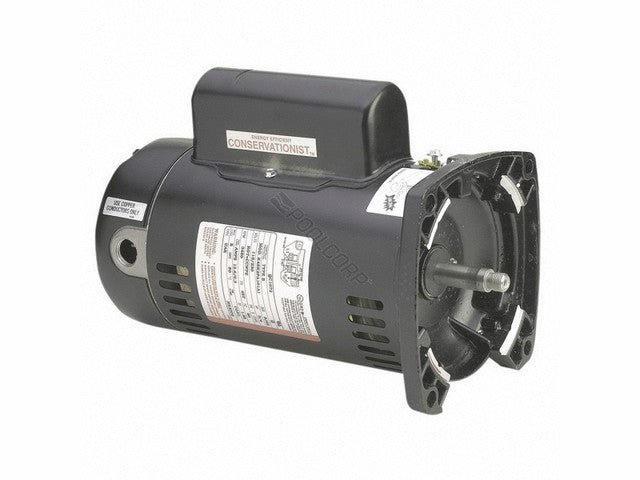

Century 2.0HP Pump Motor 1 PH 230V 48Y USQ1202

• Sealed Ball Bearings
• Capacitor Start
• Open Dripproof
• 303 Stainless Steel Shaft
• 50°C Ambient
• UL 1081 Design
• Energy Efficient

Specifications:

• Brand: Century
• Ambient Temperature: 50 degrees Celsius
• Shipping Dimensions: 20.25 x 11 x 9 inch
• Amps High Speed: 10.4
• Amps Low Speed: 10.4
• Application: Pool
• Bearing Type: Sealed Ball
• Color: Black
• Duty Cycle: Continuous
• Weight: 29.35 pounds
• Efficiency Group: High
• Frequency Rating (Hz): 60
• Horsepower: 2 horsepower
• Insulation Class: B
• Motor Enclosure Type: Open Drip Proof
• Motor Frame Size: 48Y
• Motor Shaft Rotation: Counterclockwise Pulley End
• Motor Speed: 1-Speed
• Motor Thermal Protection: Automatic Reset
• Phase: Single
• RPMs Max: 3450
• RPMs Min: 3450
• Service Factor: 1.1
• Shaft Design: Threaded
• Shaft Diameter: 0.625 inch
• Shaft Material: 303 Stainless Steel
• Standards Approvals: CSA Certified
• Voltage: 230V
• Commercial, Residential, or Professional: Residential
• Diameter: 5.625 inch
• Flange Type: Square
• Frame Material: Rolled Steel
• Green or Energy Efficient Product: True
• Motor Capacitor Type: Start, Run
• Thrust HP: 2.1
• UPC Code: 786674033260

Please Note: Unable to sell or install this product in New York or California.
