by Century

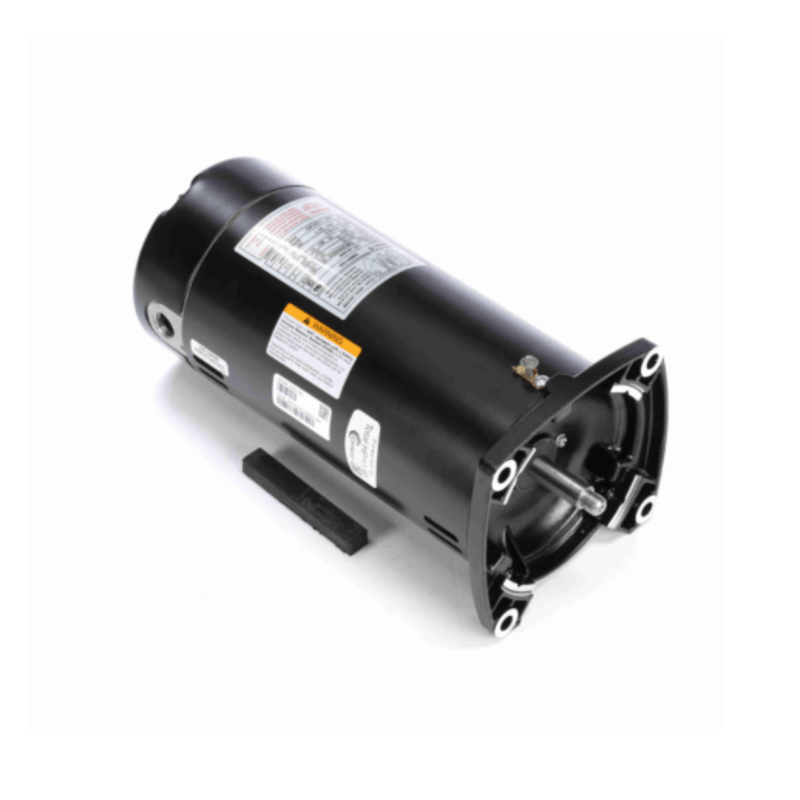

Century 1.5HP Pump Motor 1 PH 230/115V 48Y USQ1152
SKU USQ1152
Original price
$299.99
-
Original price
$299.99
Original price
$299.99
$299.99
-
$299.99
Current price
$299.99
- Sealed Ball Bearings
- Capacitor Start
- Open Dripproof
- 303 Stainless Steel Shaft
- 50°C Ambient
- UL 1081 Design
Specifications:
- Brand: Century
- Ambient Temperature: 50 degrees Celsius
- Shipping Dimensions: 21.75 x 9.75 x 9 inch
- Amps High Speed: 17.5
- Amps Low Speed: 8.75
- Application: Pool
- Bearing Type: Sealed Ball
- Color: Black
- Duty Cycle: Continuous
- Weight: 25 pound
- Efficiency Group: Standard
- Frequency Rating (Hz): 60
- Horsepower: 1.5 horsepower
- Insulation Class: B
- Motor Enclosure Type: Open Drip Proof
- Motor Frame Size: 48Y
- Motor Shaft Rotation: Counterclockwise Pulley End
- Motor Speed: 1-Speed
- Motor Thermal Protection: Automatic Reset
- Phase: Single
- RPMs Max: 3450
- RPMs Min: 3450
- Service Factor: 1.1
- Shaft Design: 1/2 Threaded
- Shaft Diameter: 0.625 inch
- Shaft Material: 303 Stainless Steel
- Standards Approvals: CSA Certified
- Voltage: 115V, 230V
- Commercial, Residential, or Professional: Residential
- Diameter: 5.625 inch
- Flange Type: Square
- Frame Material: Rolled Steel
- Motor Capacitor Type: Start
- UPC Code: 786674033253
*Please Note: Unable to sell or install this product in New York or California.
Free Shipping: In-stock items ship within 1–2 business days. Please refer to our shipping policy for full details.
Warranty Information & Support: Visit our warranty page or refer to the specific product user manual.
Disclaimer: Professional installation (not included) is required for warranty validation.
Please Note: Images are for representation.
