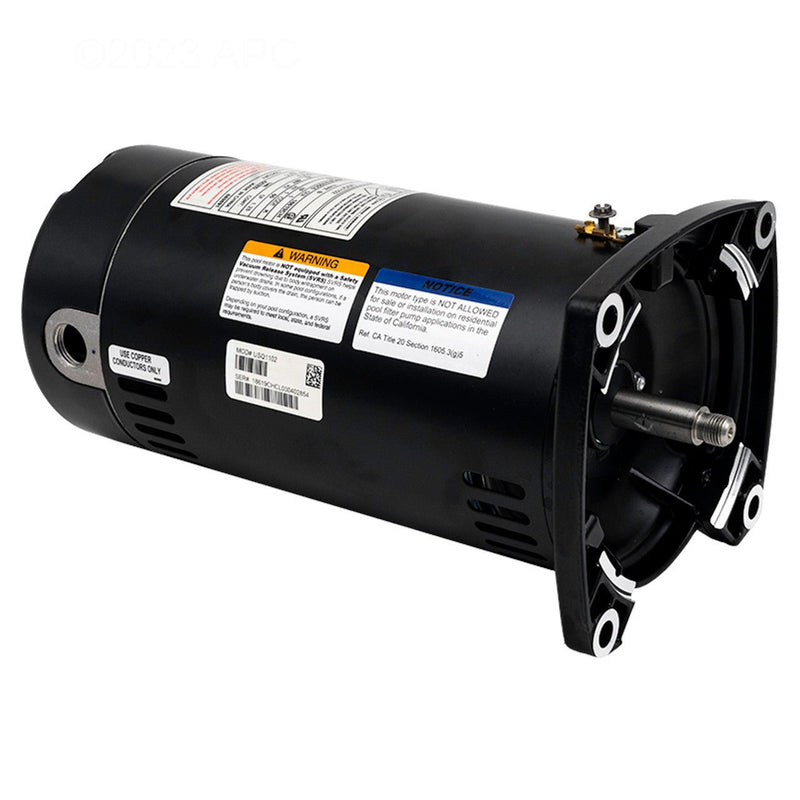

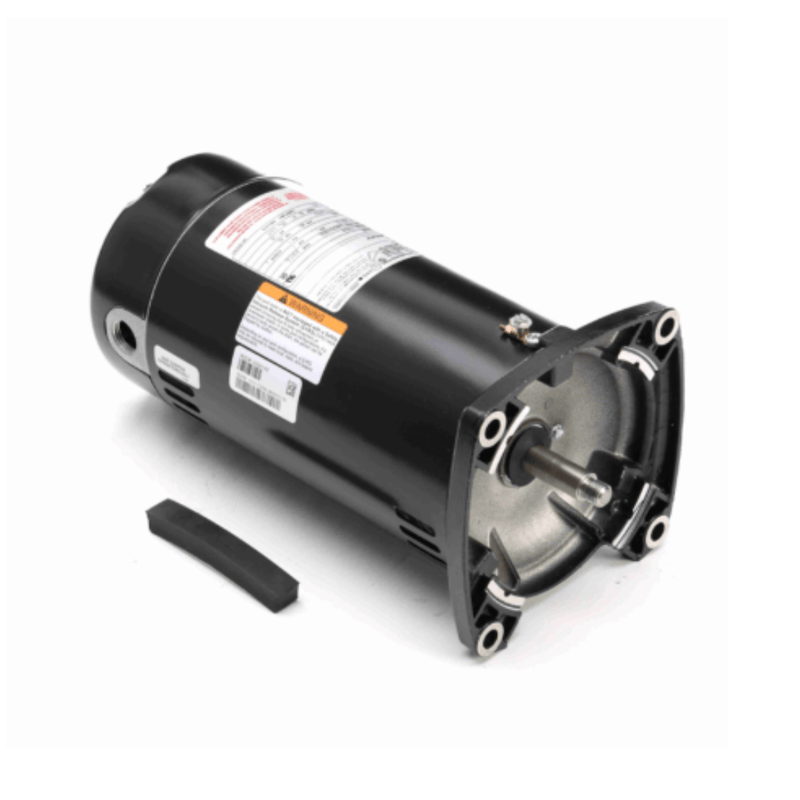

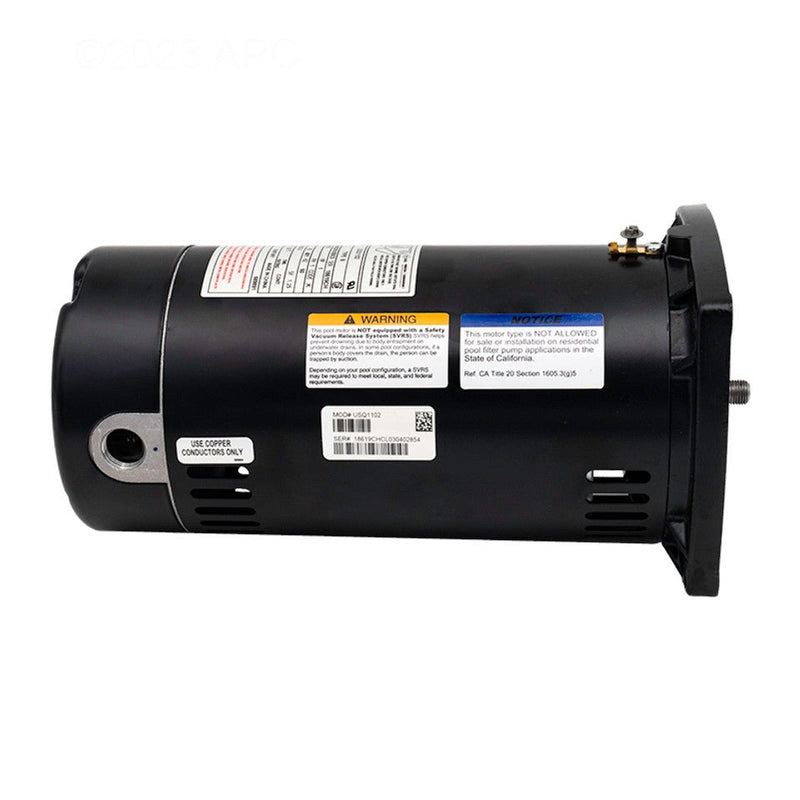

Century 1.0HP Pump Motor 1 PH 230/115V 48Y USQ1102

• Sealed Ball Bearings
• Capacitor Start
• Open Dripproof
• 303 Stainless Steel Shaft
• 50°C Ambient
• UL 1081 Design

Specifications:

• Brand: Century
• Ambient Temperature: 50 degrees Celsius
• Shipping Dimensions: 19.75 x 9.25 x 9.25 inch
• Amps High Speed: 15.3
• Amps Low Speed: 7.6
• Application: Above Ground, Pool, Spa
• Bearing Type: Sealed Ball
• Color: Black
• Duty Cycle: Continuous
• Weight: 22 pound
• Efficiency Group: Standard
• Frequency Rating (Hz): 60
• Horsepower: 1 horsepower
• Insulation Class: B
• Motor Enclosure Type: Open Drip Proof
• Motor Frame Size: 48Y
• Motor Shaft Rotation: Counterclockwise Pulley End
• Motor Speed: 1-Speed
• Motor Thermal Protection: Automatic Reset
• Phase: Single
• RPMs Max: 3450
• RPMs Min: 3450
• Service Factor: 1.25
• Shaft Design: Threaded
• Shaft Diameter: 0.625 inch
• Shaft Material: 303 Stainless Steel
• Standards Approvals: CSA Certified
• Voltage: 115V, 230V
• Diameter: 5.625 inch
• Flange Type: Square
• Frame Material: Rolled Steel
• Motor Capacitor Type: Start
• UPC Code: 786674033246

*Please Note: Unable to sell or install this product in New York or California.
