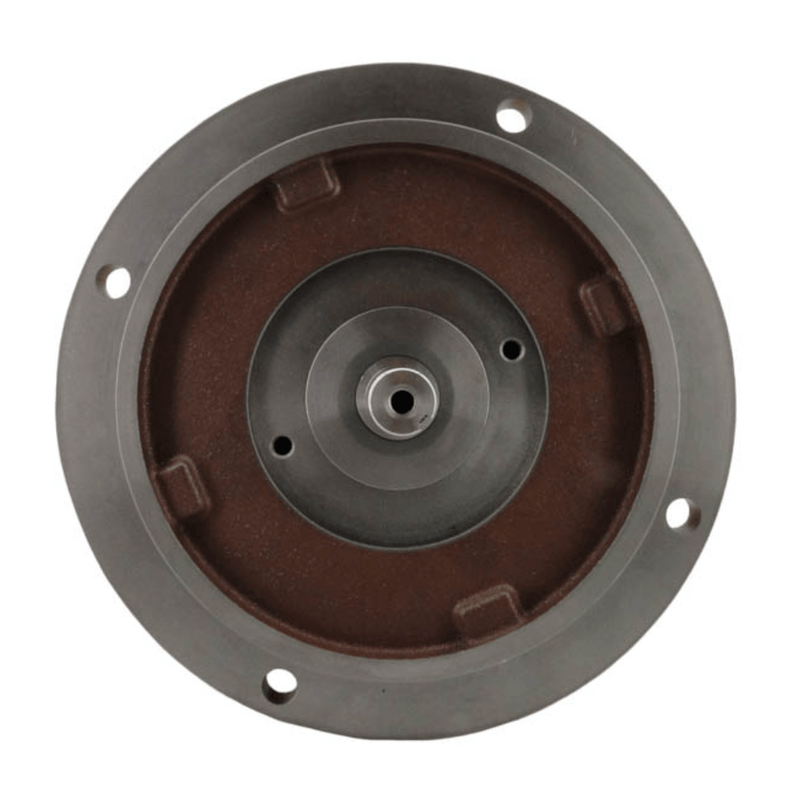

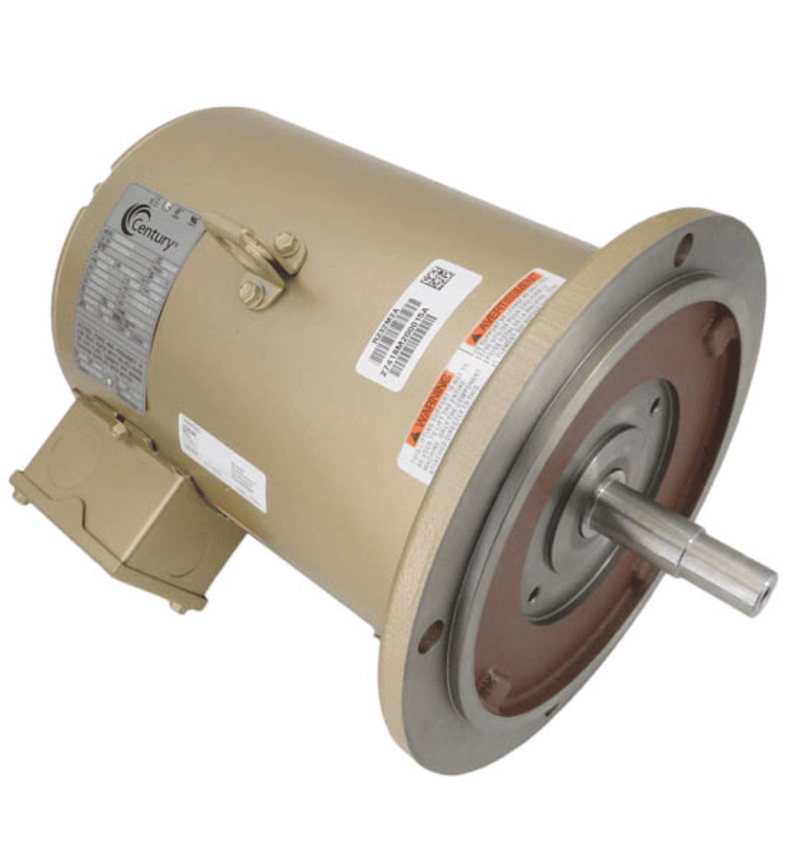

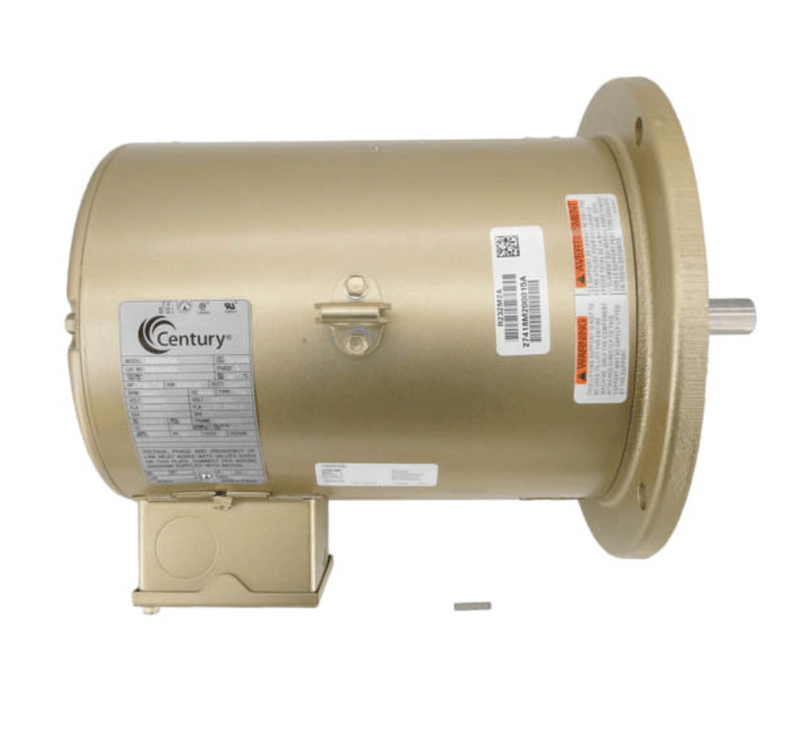

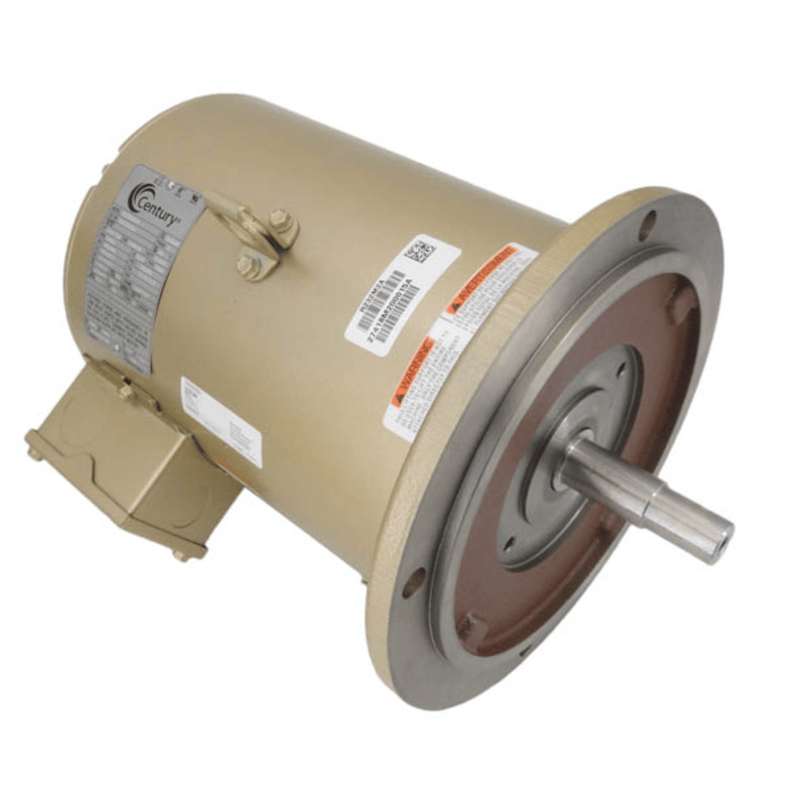

Century 7.5HP Pump Motor 3 Ph, 50 Hz, 220/440V, 184TDZ Frame R232M2B
SKU R232M2B
Original price
$1,399.00
-
Original price
$1,399.00
Original price
$1,399.00
$1,399.00
-
$1,399.00
Current price
$1,399.00
Century Pool Pump Motor, 3.0 HP, 3 Ph, 60 Hz, 208-230/460 V, 3600 RPM, Y56Y Frame, ODP - Q3302V1
- Well-suited for Commercial and Large Residential Pools
- Open Dripproof, Premium Efficient Designs, Reversible
- Round Body/Footless, Special JMZ Shaft Configuration
- 40°C Ambient
- Sealed Ball Bearings
- keyed, 304 Stainless Steel Shaft Extension, with external shaft slinger
- Purex Hydrotech East Side "L" Series and "C" Series Commercial Pump
- Purex Replacement
- PUREX PENTAIR C SERIES 184TDZ
Specifications:
- Phase: 3
- Output HP: 7 1/2 Hp
- Output KW: 5.6 kW
- Voltage: 220/440 V
- Speed: 3490 rpm
- Service Factor: 1.15
- Frame: 184TDZ
- Enclosure: Drip Proof
- Thermal Protection: No Protection
- Efficiency: 88.5 %
- Ambient Temperature: 40 °C
- Frequency: 50 Hz
- Current: 18.6/9.3 A
- Duty: Continuous
- Insulation Class: F
- UL: Recognized
- CSA: Y
- CE: Y
- Number of Speeds: 1
Free Shipping: In-stock items ship within 1–2 business days. Please refer to our shipping policy for full details.
Warranty Information & Support: Visit our warranty page or refer to the specific product user manual.
Disclaimer: Professional installation (not included) is required for warranty validation.
Please Note: Images are for representation.
