by Century

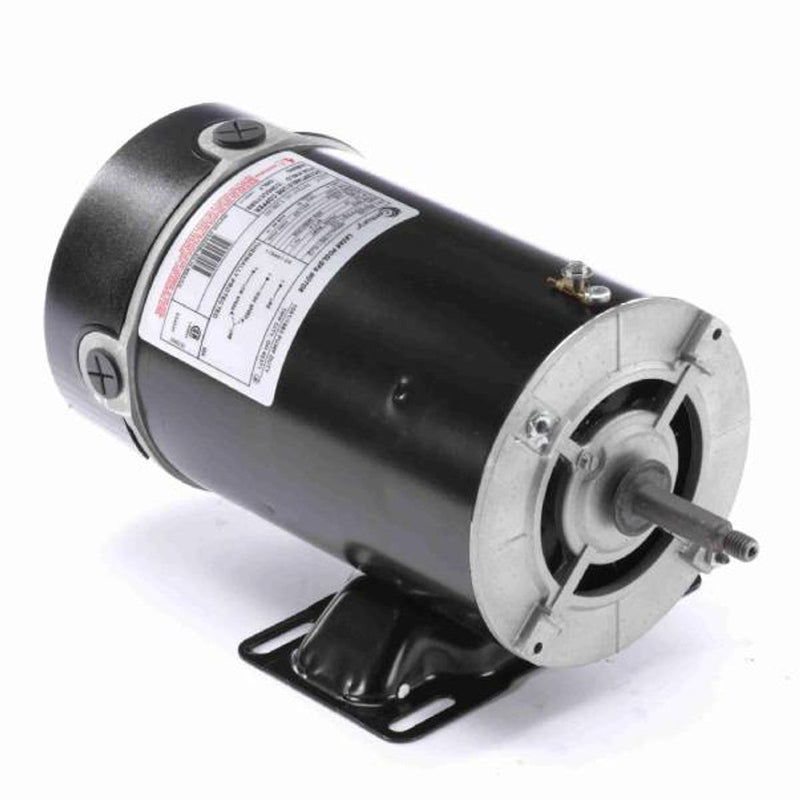

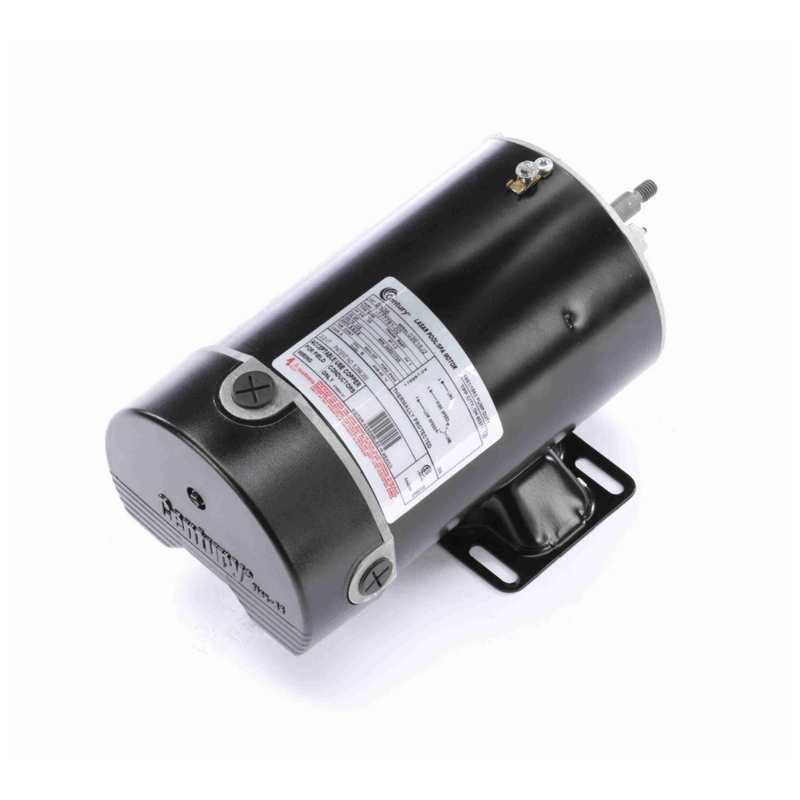

Century 3/4HP Pump Motor 1 Ph 115V 48Y BN36
SKU BN36
Original price
$259.00
-
Original price
$259.00
Original price
$259.00
$259.00
-
$259.00
Current price
$259.00
- Two Speed
- 12 & 3 O'clock Conduit Entries
- 3-1/2" Shaft Height
- 40°C Ambient
- Four Thru Bolts on a 5.146 Bolt Circle
- Flex 48 LASAR Line Low Amp Start and Run
- 48/56 Base Mounting
- Threaded Shaft
- Rigid Base
Specifications:
- Phase: 1
- Output HP: 3/4 - .10 Hp
- Output KW: 0.56 kW
- Voltage:115 VSpeed: 3450/1725 rpm
- Service Factor: 1
- Frame: R48Y
- Enclosure: Drip Proof
- Thermal Protection: Thermally Protected
- Ambient Temperature: 40 °C
- Frequency: 60 Hz
- Current: 8.8/2.6 A
- Duty: Continuous
- Insulation Class: B
- UL: Recognized
- CSA: Y
- Number of Speeds: 2-2-VT
