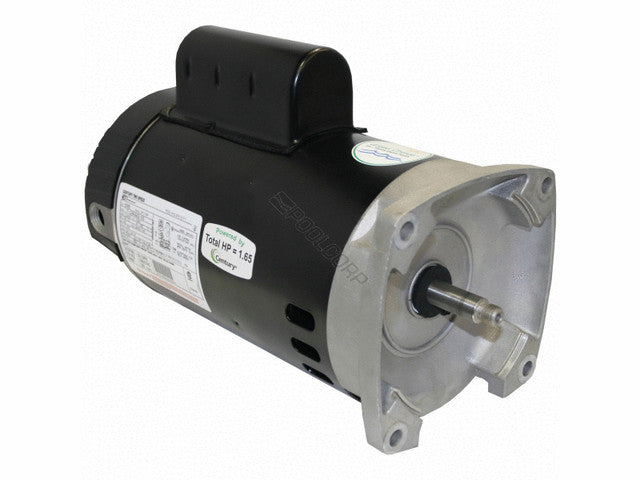

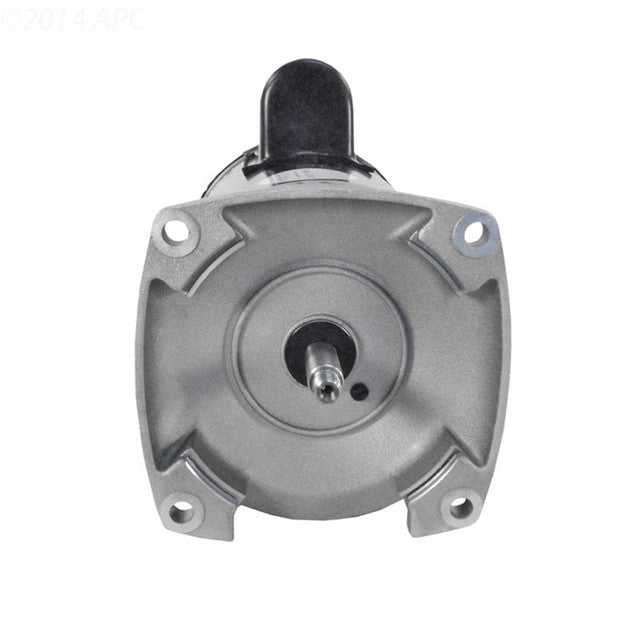

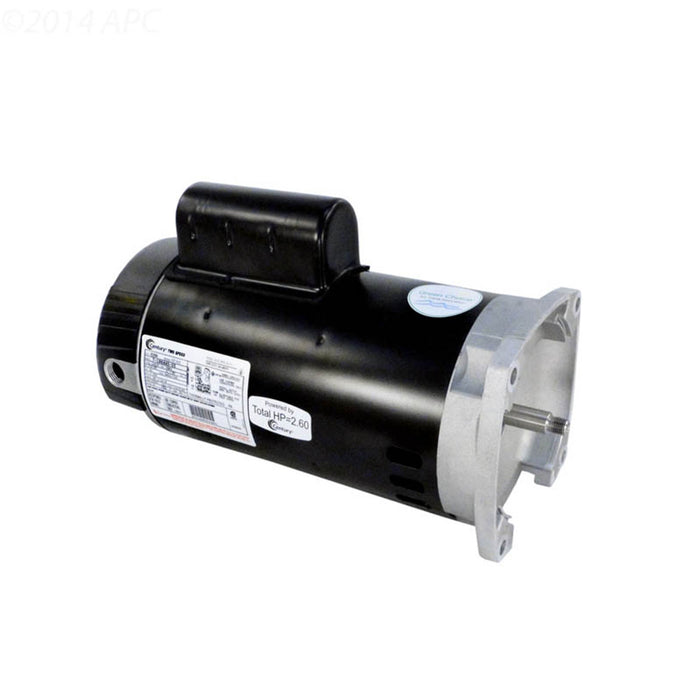

Century 2 HP Square Flange 2-Speed Full-Rated Pump Motor 230V 56Y (B2984)

B2984 2 HP 230V 2 SPD HIGH EFF MOTOR

• Two Speed
• Sealed Ball Bearings
• 50°C Ambient
• Energy Efficient High and Low Speed
• Open Dripproof
• Permanent Split Capacitor on High Speed
• Cap Star/Cap Run Low-Speed
• 303 Stainless Steel Shaft
• Threaded Shaft
• Meets California Energy Commission Appliance Regulations 2008

Used On:

• Jandy Stealth High Pressure Up-Rated 2-Speed Pump
• Waterway SVL56 High Flow Pump Parts, SVL56E-120

Specifications:

• Phase: 1
• Output HP: 2.0/.25 Hp
• Output KW: 1.5 kW
• Voltage: 230 V
• Speed: 3450/1725 rpm
• Service Factor: 1.3
• Frame: 56Y
• Enclosure: Open Drip Proof
• Thermal Protection: Thermally Protected
• Ambient Temperature: 50 °C
• Frequency: 60 Hz
• Current: SF 11.0/1.8 A
• Duty: Continuous
• Insulation Class: F
• UL: Recognized
• CSA: Y
